Find Your Part

Photo Part No Description Price (each) Stock
8382788/xxx Console assembly, trimmed front Enquire To Order
Photo Part No Description Price (each) Stock
8383793/XXX Armrest lid assembly, front Enquire To Order
Photo Part No Description Price (each) Stock
83-82795 LINK CHECK LID FT RH $14.30 To Order
Photo Part No Description Price (each) Stock
88-123445-AA NUT SPRINT 3/4 INCH SUPPLIERS NO 12004- 100-300 $0.32 To Order
Photo Part No Description Price (each) Stock
8383737/XXX Casing, rear quarter - RH Enquire To Order
Photo Part No Description Price (each) Stock
83-83736 ESCUTCHEON $26.30 To Order
Photo Part No Description Price (each) Stock
77-83739 SEAL INNER REAR QTR WINDOW $21.86 To Order
Photo Part No Description Price (each) Stock
8383742/XXX Bolster assembly - RH Enquire To Order
Photo Part No Description Price (each) Stock
8383797/XXX Console assembly rear, complete Enquire To Order
Photo Part No Description Price (each) Stock
8383677/XXX Trim assembly, lower A post - RH Enquire To Order
Photo Part No Description Price (each) Stock
7784417 Water curtain, rear quarter - RH $45.78 To Order

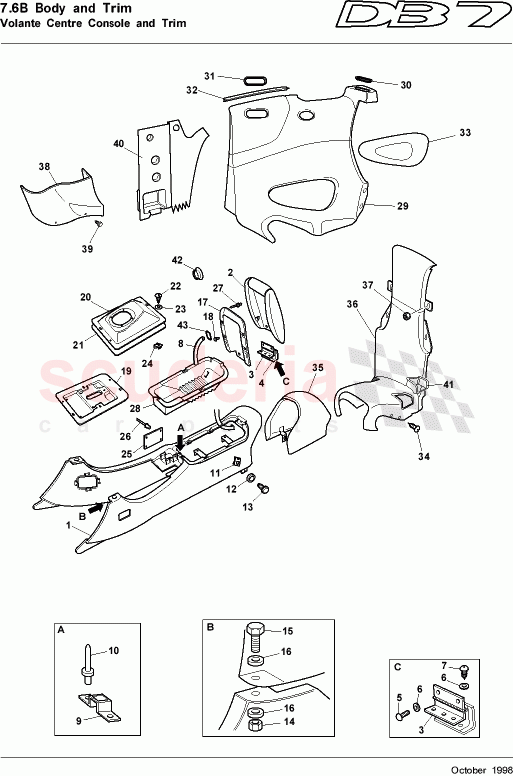

# Part Details Price
(each)
Qty on
Diagram
Add to
Cart
0 8383679/XXX
Trim assembly, lower A post - RH
LHD Not USA/CDN Up to (V) 101620
- 1 Enquire
0 8383680/XXX
Trim assembly, lower A post - LH
LHD Not USA/CDN Up to (V) 101620
- 1 Enquire
0 83110614AAW
Trim assembly, lower A post - RH
LHD Not USA/CDN From (V) 101621
- 1 Enquire
0 83110615AAW
Trim assembly, lower A post - RH
LHD Not USA/CDN From (V) 101621
- 1 Enquire
0 83111019BAW
Console assembly rear, complete
With glass break sensor grille
- 1 Enquire
0 80-111108-BAW
PNL RR QTR ASSY RH TRIMMED
From (V) 201773 Up to EC80114
- 1 Enquire
0 80-111109-BAW
PNL RR QTR ASSY LH TRIMMED
From (V) 201773 Up to EC80114
$1,280.74 1
0 8383681/XXX
Trim assembly, lower A post - RH
LHD USA/CDN Up to (V) 101620
- 1 Enquire
0 8383682/XXX
Trim assembly, lower A post - LH
LHD USA/CDN Up to (V) 101620
- 1 Enquire
0 83110616AAW
Trim assembly, lower A post - RH
LHD USA/CDN From (V) 101621
- 1 Enquire
0 83110617AAW
Trim assembly, lower A post - RH
LHD USA/CDN From (V) 101621
- 1 Enquire
0 697672
SCREW-SELF DRILLING
Fixing rear quarter casing
$0.08 2
0 697495
SCREW No8 x 13 FLANGED AB S.T
Fixing rear quarter casing
$0.09 4
0 697496
NUT
Fixing rear quarter casing
$0.74 4
0 8383678/XXX
Trim assembly, lower A post - LH
RHD Up to (V) 101620
- 1 Enquire
0 83-110612-AAW
Trim assembly, lower A post - RH
RHD From (V) 101621
- 1 Enquire
0 83110613AAW
Trim assembly, lower A post - RH
RHD From (V) 101621
- 1 Enquire
0 8383738/XXX
Casing, rear quarter - LH
Up to (V) 201772
- 1 Enquire
0 80-110536-AAW
FRONT CONSOLE ASSY- TRIMMED
From (V) 101621
- 1 Enquire
0 80-90364
ESCUTCHEON-SEAT BELT
From (V) 201773
$4.44 2
0 83-110570-AAW
CARPET-FRT FOOTWELL RH LHD
From EC70712
$221.05 1
0 80111346BAW
Casing, rear quarter - RH
From EC80114
- 1 Enquire
0 80111347BAW
Casing, rear quarter - LH
From EC80114
- 1 Enquire
0 83-82796
LINK CHECK LID FT LH
From EC70712
$14.30 1
0 697574
RETAINING RING- G/LEVER GAITER
Manual
$1.69 1
0 7784418
Water curtain, rear quarter - LH
$45.78 1
0 83-83740
RETAINER SEAL RR QTR RH
$9.40 1
0 83-83741
RETAINER SEAL RR QTR LH
$9.20 1
0 8383743/XXX
Bolster assembly - LH
- 1 Enquire
1 8382788/xxx
Console assembly, trimmed front
- 1 Enquire
2 8383793/XXX
Armrest lid assembly, front
Up to EC70712
- 1 Enquire
8 83-82795
LINK CHECK LID FT RH
$14.30 1
24 88-123445-AA
NUT SPRINT 3/4 INCH SUPPLIERS NO 12004- 100-300
$0.32 6
29 8383737/XXX
Casing, rear quarter - RH
Up to (V) 201772
- 1 Enquire
31 83-83736
ESCUTCHEON
Up to (V) 201772
$26.30 2
32 77-83739
SEAL INNER REAR QTR WINDOW
$21.86 1
33 8383742/XXX
Bolster assembly - RH
- 1 Enquire
36 8383797/XXX
Console assembly rear, complete
Without glass break sensor grille
- 1 Enquire
38 8383677/XXX
Trim assembly, lower A post - RH
RHD Up to (V) 101620
- 1 Enquire
40 7784417
Water curtain, rear quarter - RH
$45.78 1
