Door Glass And Frames

Aston Martin DB7 (1997)

Find Your Part

Aston Martin DB7 (1997) - Door Glass and Frames

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
7682225 GLASS ASSY DOOR RH 500 x 980 x 3mm $941.99 To Order
Photo Part No Description Price (each) Stock
6582230 Guide assy, door glass - RH $109.92 To Order
Photo Part No Description Price (each) Stock
6582232 BRACKET ATTACH DOOR GLASS RH $9.33 To Order
Photo Part No Description Price (each) Stock
693432 SCREW M5 x 25 HEX $0.90 To Order
Photo Part No Description Price (each) Stock
91689 REGULATOR ASSY DR-RH $808.40 To Order
Photo Part No Description Price (each) Stock
77124148BA WAIST SEAL RH CONV $702.28 To Order
Photo Part No Description Price (each) Stock
6584059 CHEATER COMP ASSY RH $818.45 To Order
Photo Part No Description Price (each) Stock
65121786AA SEAL CHEATER BASE RH $49.21 To Order
Photo Part No Description Price (each) Stock
65124531AA Bracket, glass stop $11.61 To Order
View All

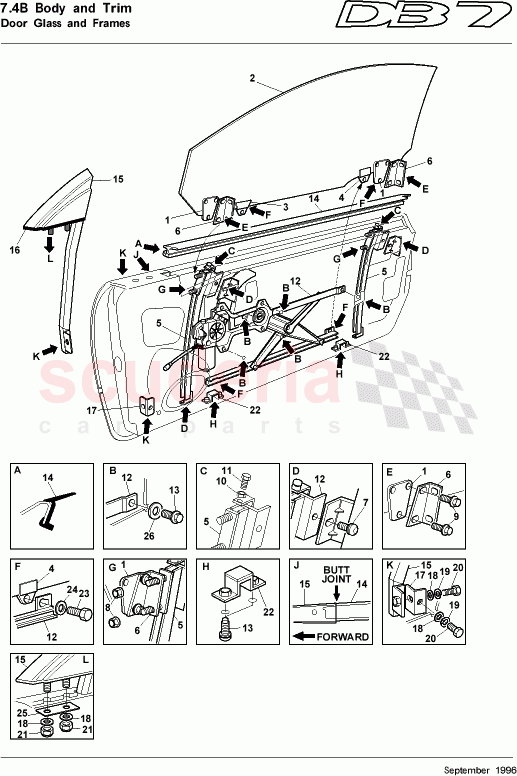

Door Glass and Frames of Aston Martin Aston Martin DB7 (1997) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
- 697464
ADHESIVE-SIKAFLEX260
Cheater inner to outer, & seals to retainer 		$350.95 -
- 693155
Primer, Sikaflex 205
Cheater inner to outer, & seals to retainer 		$89.27 -
- 697028
ALPHA SEAL 132
Cheater inner to door inner 		$46.42 -
- 6582250
BUSH FRICTION
Inner finisher to cheater 		$0.11 4
- 697957
Screw, pan hd thread forming M3.5 x 8
Outer finisher to cheater 		- 6 Enquire
- 698689
ALPHABOND 1004
Waist seal to outer door 		$33.83 -
- 695326
LOCTITE 406 ADHESIVE
Seal to cheater channel 		$64.07 -
- 697462
JOINT SEALER (127)
Cheater base to door 		$10.32 -
- 698992
Sem strip, 3 x 12
regulator sealing 		- - Enquire
- 77124148BA
WAIST SEAL RH CONV
Volante 		$702.28 1
- 77124147BA
WAIST SEAL LH CONV
Volante 		$642.70 1
- 77124147BA
WAIST SEAL LH CONV
Coupe 		$642.70 1
- 7784061
SEAL ASSY CHEATER CHANNEL RH 		$270.89 1
- 7784062
SEAL ASSY CHEATER CHANNEL LH 		$286.15 1
- 8084065
FINISHER INNER CHEATER RH 		$52.36 1
- 8084066
FINISHER INNER CHEATER LH 		$52.36 1
- 7884063
FINISHER OUTER CHEATER RH 		$262.85 1
- 7884064
FINISHER OUTER CHEATER LH 		$55.54 1
- 7682225
GLASS ASSY DOOR RH 500 x 980 x 3mm 		$941.99 1
- 7682226
GLASS ASSY DOOR LH 500 x 980 x 3mm 		$941.99 1
- 65121787AA
SEAL CHEATER BASE LH 		$125.32 1
- 6584060
CHEATER COMP ASSY LH 		$551.81 1
- 6582231
Guide assy, door glass - LH 		$109.92 2
- 6582233
BRACKET ATTACH DOOR GLASS LH 		$12.98 2
- 6582234
SHIM-DOOR GLASS ATTACH REAR 		$6.07 2
- 91689
REGULATOR ASSY DR-RH 		$808.40 2
- 7790215
RIVET-WAISTRAIL OTR
IN STOCK 		$0.57 6
- 697459
Greasil 4000 		$37.08 -
2 7682225
GLASS ASSY DOOR RH 500 x 980 x 3mm 		$941.99 1
5 6582230
Guide assy, door glass - RH 		$109.92 2
6 6582232
BRACKET ATTACH DOOR GLASS RH 		$9.33 2
11 693432
SCREW M5 x 25 HEX
Assembled to top of guide rail 		$0.90 4
12 91689
REGULATOR ASSY DR-RH 		$808.40 2
14 77124148BA
WAIST SEAL RH CONV
Coupe 		$702.28 1
15 6584059
CHEATER COMP ASSY RH 		$818.45 1
16 65121786AA
SEAL CHEATER BASE RH 		$49.21 1
22 65124531AA
Bracket, glass stop 		$11.61 4
