Find Your Part

Front Seats and Belts (From VIN 101621) of Aston Martin Aston Martin DB7 (1997)

View All

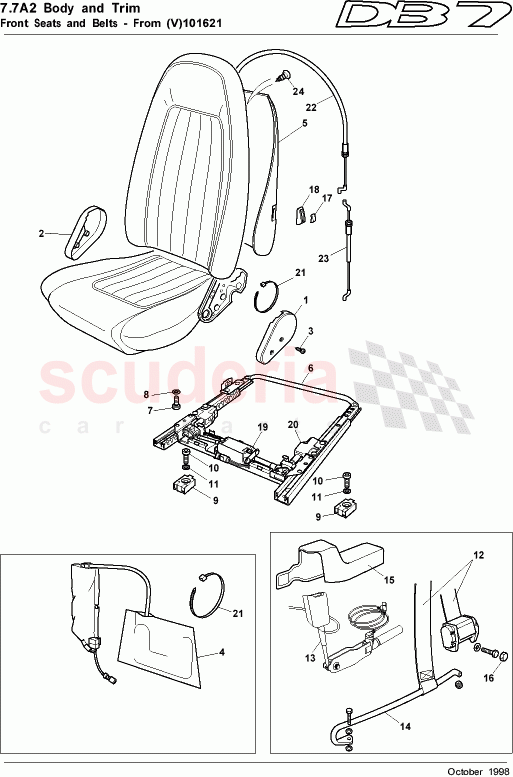

Aston Martin DB7 (1997) - Front Seats and Belts (From VIN 101621)

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	74110760AAW	MECH COVER OUTER-RH	$330.75	To Order

Photo	Part No	Description	Price (each)	Stock
	74110758AAW	MECH COVER INNER-RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697729	Screw, mech cover fixing	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	74110774AAW	BACKBOARD ASSY - RH	$916.23	To Order

Photo	Part No	Description	Price (each)	Stock
	7484750	Seat slide assembly, electric - RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8084500	SEAT BELT FT RH RHD COUPE USA DRIVER	$231.37	To Order

Photo	Part No	Description	Price (each)	Stock
	74110606AA	SEAT BELT BUCKLE-PBP DRIVER S RH	$461.94	To Order

Photo	Part No	Description	Price (each)	Stock
	8084746	SLIDER BAR RH-FRONT SEAT BELT	$36.40	To Order

Photo	Part No	Description	Price (each)	Stock
	74110610AAW	Cover, pretensioner - RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7484808B	ESCUTCHEON-BLACK	$8.19	To Order

Photo	Part No	Description	Price (each)	Stock
	7484818	MOTOR-FORE & AFT SEAT MOVEMENT	$1,047.17	To Order

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	8084507	SEAT BELT FRONT CONV FED DRIVER	8084507 SEAT BELT FRONT CONV FED DRIVER RH, RHD / LH, LHD USA/CDN/J	$301.06	1
-	8084508	SEAT BELT FRONT CONV FED PASSENGER	8084508 SEAT BELT FRONT CONV FED PASSENGER LH, RHD / RH, LHD USA/CDN/J	$301.06	1
-	74110826AA	SEAT BELT BUCKLE- PASSENGER (FED)	74110826AA SEAT BELT BUCKLE- PASSENGER (FED) LH, RHD / RH, LHD USA/CDN/J	$240.32	1
-	74110608AAW	Cover, squab mechanism inner - RH	74110608AAW Cover, squab mechanism inner - RH With pretensioner	-	1	Enquire
-	74110609AAW	Cover, squab mechanism inner - LH	74110609AAW Cover, squab mechanism inner - LH With pretensioner	-	1	Enquire
-	7484751	Seat slide assembly, electric - LH	7484751 Seat slide assembly, electric - LH Non height rise	-	1	Enquire
-	7484808M	ESCUTCHEON-TILT LVR	7484808M ESCUTCHEON-TILT LVR Specify Colour	$8.19	1
-	8084504	SEAT BELT FT RH LHD COUPE USA PASSENGER	8084504 SEAT BELT FT RH LHD COUPE USA PASSENGER LHD USA/CDN/J	$314.20	1
-	8084505	SEAT BELT FT LH LHD COUPE USA DRIVER	8084505 SEAT BELT FT LH LHD COUPE USA DRIVER LHD USA/CDN/J	$249.74	1
-	8084513	SEAT BELT FRONT RH COUPE EURO	8084513 SEAT BELT FRONT RH COUPE EURO Not USA/CDN/J	$954.33	1
-	8084514	SEAT BELT FRONT LH COUPE EURO	8084514 SEAT BELT FRONT LH COUPE EURO Not USA/CDN/J	$954.33	1
-	74110607AA	SEAT BELT BUCKLE-PBP DRIVER S LH	74110607AA SEAT BELT BUCKLE-PBP DRIVER S LH LHD USA/CDN/J	$461.94	1
-	8084515	SEAT BELT FRONT CONV EURO	8084515 SEAT BELT FRONT CONV EURO Not USA/CDN/J	$345.28	2
-	74110605AA	SEAT BELT BUCKLE- EURO	74110605AA SEAT BELT BUCKLE- EURO Not USA/CDN/J	$240.32	2
-	7484756	SEAT SLIDE ASSY-RH WITH HEIGHT RISE NOW 74-84920 ?	7484756 SEAT SLIDE ASSY-RH WITH HEIGHT RISE NOW 74-84920 ? Height rise	-	1	Enquire
-	7484757	SEAT SLIDE ASSY-LH WITH HEIGHT RISE NOW 74-84921 ?	7484757 SEAT SLIDE ASSY-LH WITH HEIGHT RISE NOW 74-84921 ? Height rise	$1,861.06	1
-	697495	SCREW No8 x 13 FLANGED AB S.T	697495 SCREW No8 x 13 FLANGED AB S.T 1 per inner	$0.09	2
-	8084501	SEAT BELT FT LH RHD COUPE USA PASSENGER	8084501 SEAT BELT FT LH RHD COUPE USA PASSENGER RHD J only	$260.39	1
-	74111679AAW	Squab cover assembly	74111679AAW Squab cover assembly Dunhill	-	2	Enquire
-	74110060AAW	Seat assembly, complete, front - RH	74110060AAW Seat assembly, complete, front - RH	-	1	Enquire
-	74110061AAW	Seat assembly, complete, front - LH	74110061AAW Seat assembly, complete, front - LH	-	1	Enquire
-	74110761AAW	MECH COVER OUTER-LH	74110761AAW MECH COVER OUTER-LH	-	1	Enquire
-	74110759AAW	Cover, squab mechanism inner - LH	74110759AAW Cover, squab mechanism inner - LH	-	1	Enquire
-	8084499	SLIDER BAR LH - FRT SEAT BELT	8084499 SLIDER BAR LH - FRT SEAT BELT	$40.94	1
-	74110775AAW	Squab back cover assembly - LH	74110775AAW Squab back cover assembly - LH	-	1	Enquire
-	74110611AAW	Cover, pretensioner - LH	74110611AAW Cover, pretensioner - LH	-	1	Enquire
-	74110832AAW	CUSHION SIDE ROLL COVER-RH	74110832AAW CUSHION SIDE ROLL COVER-RH	$721.34	2
-	74110831AAW	CUSHION SIDE ROLL COVER-LH	74110831AAW CUSHION SIDE ROLL COVER-LH	$721.34	2
-	74110830AAW	CUSHION CENTRE COVER	74110830AAW CUSHION CENTRE COVER	$2,177.37	2
-	74110835AAW	SQUAB COVER	74110835AAW SQUAB COVER	-	2	Enquire
-	7484817	SEAT RECLINE MOTOR	7484817 SEAT RECLINE MOTOR	$765.26	2
-	697562	GROMMET 12mm ID	697562 GROMMET 12mm ID	$20.44	2
-	7484749	PLUG-SQUAB MECH CVR FIXING HOLE	7484749 PLUG-SQUAB MECH CVR FIXING HOLE	$0.82	6
1	74110760AAW	MECH COVER OUTER-RH	74110760AAW MECH COVER OUTER-RH	$330.75	1
2	74110758AAW	MECH COVER INNER-RH	74110758AAW MECH COVER INNER-RH	-	1	Enquire
3	697729	Screw, mech cover fixing	697729 Screw, mech cover fixing 2 per outer, 1 per inner	-	6	Enquire
5	74110774AAW	BACKBOARD ASSY - RH	74110774AAW BACKBOARD ASSY - RH	$916.23	1
6	7484750	Seat slide assembly, electric - RH	7484750 Seat slide assembly, electric - RH Non height rise	-	1	Enquire
12	8084500	SEAT BELT FT RH RHD COUPE USA DRIVER	8084500 SEAT BELT FT RH RHD COUPE USA DRIVER RHD J only	$231.37	1
13	74110606AA	SEAT BELT BUCKLE-PBP DRIVER S RH	74110606AA SEAT BELT BUCKLE-PBP DRIVER S RH RHD USA/CDN/J	$461.94	1
14	8084746	SLIDER BAR RH-FRONT SEAT BELT	8084746 SLIDER BAR RH-FRONT SEAT BELT	$36.40	1
15	74110610AAW	Cover, pretensioner - RH	74110610AAW Cover, pretensioner - RH	-	1	Enquire
18	7484808B	ESCUTCHEON-BLACK	7484808B ESCUTCHEON-BLACK Specify Colour	$8.19	1
19	7484818	MOTOR-FORE & AFT SEAT MOVEMENT	7484818 MOTOR-FORE & AFT SEAT MOVEMENT	$1,047.17	2
