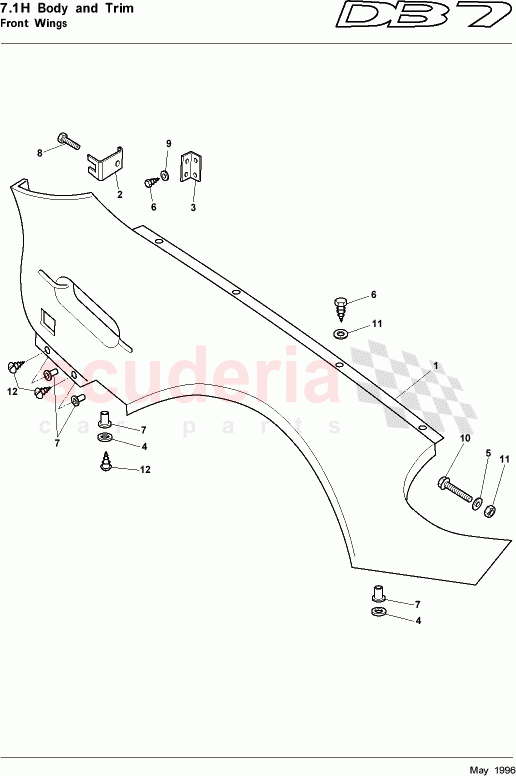

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	62122662AB	FRONT WING ASSY RH	$4,705.67	To Order

Photo	Part No	Description	Price (each)	Stock
	6282396	BRACKET SUPPORT REAR WING RH	$12.83	To Order

Photo	Part No	Description	Price (each)	Stock
	6282398	BRACKET ASSY CLOSING UPPER RH	$26.60	To Order

Photo	Part No	Description	Price (each)	Stock
	697487	NUT INSERT	$1.50	To Order

View All

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
-	6282399	BRACKET ASSY CLOSING UPPER LH	6282399 BRACKET ASSY CLOSING UPPER LH	$26.08	1
-	62122663AB	FRONT WING ASSY LH	62122663AB FRONT WING ASSY LH	$4,705.67	1
-	6282397	BRACKET SUPPORT REAR WING LH	6282397 BRACKET SUPPORT REAR WING LH	$12.55	1
-	702295	Nut, M5, Hex Flange Head IN STOCK	702295 Nut, M5, Hex Flange Head IN STOCK	$0.10	10
-	697490	Adhesive, Scotchweld DP605	697490 Adhesive, Scotchweld DP605	$53.69	-
1	62122662AB	FRONT WING ASSY RH	62122662AB FRONT WING ASSY RH	$4,705.67	1
2	6282396	BRACKET SUPPORT REAR WING RH	6282396 BRACKET SUPPORT REAR WING RH	$12.83	1
3	6282398	BRACKET ASSY CLOSING UPPER RH	6282398 BRACKET ASSY CLOSING UPPER RH	$26.60	1
7	697487	NUT INSERT	697487 NUT INSERT	$1.50	4
