Facia And Trim

Aston Martin DB7 (1997)

Find Your Part

Aston Martin DB7 (1997) - Facia and Trim

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
8383868/XXX Facia assembly, complete Enquire To Order
Photo Part No Description Price (each) Stock
6982872 TUBE COMP ASSY FACIA SUPRT RHD $273.71 To Order
Photo Part No Description Price (each) Stock
6982876 BRACKET ASSY FACIA SUPPORT LH $18.04 To Order
6982875 BRACKET ASSY FACIA SUPPORT RH $13.54 To Order
Photo Part No Description Price (each) Stock
8383875 FACIA VENEER PANEL ASY RHD $398.88 To Order
Photo Part No Description Price (each) Stock
6983915 SUPPORT FACIA VENEER PANEL RHD $23.15 To Order
Photo Part No Description Price (each) Stock
6983909 CARRIER ASY PASSENGR AIRBAG RHD $81.09 To Order
Photo Part No Description Price (each) Stock
6983907 MOUNTING FRAME DEPLOYMENT DOOR RHD $160.58 To Order
Photo Part No Description Price (each) Stock
8383913/XXX Deployment door, passenger airbag Enquire To Order
Photo Part No Description Price (each) Stock
6982898 BRACKET-FACIA END LH $35.99 To Order
Photo Part No Description Price (each) Stock
6984810 INST FINISHER RHD $631.37 To Order
Photo Part No Description Price (each) Stock
6984574 ASSY-LWR TUBE BOLSTER LH $213.56 To Order
Photo Part No Description Price (each) Stock
8382906/XXX Underscuttle assembly complete, passenger Enquire To Order
Photo Part No Description Price (each) Stock
8382910/XXX Underscuttle assembly complete, driver Enquire To Order
Photo Part No Description Price (each) Stock
8383375 FINISHER TOP PNL ASY -RHD - AUTO $501.10 To Order
8383376 FINISHER TOP PNL ASY -LHD-AUTO $433.85 To Order
80110522AA CONSOLE TOP FINISHER PANEL RHD AUTO $831.53 To Order
...and 6 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
8085292 ASHTRAY CLIP $19.74 To Order
6983367 FOAM STRIP-1445 mm $61.39 To Order
6983173 ASHTRAY ASSY COMP $117.33 To Order
Photo Part No Description Price (each) Stock
8090046 FRONT PANEL- CONSOLE SURROUND $368.06 To Order
80110861AA PANEL-FRONT CONSOLE SURROUND (SEAT HEATER SWITCH) $571.47 To Order
Photo Part No Description Price (each) Stock
83111659AA A/C AIRVENT SURROUND PANEL (DUNHILL) $583.75 To Order
8390031 VENEER-AIRVENT SURROUND $231.73 To Order
Photo Part No Description Price (each) Stock
8090018 CONSOLE BADGE- ASTON MARTIN $127.73 To Order
697290 PUSH ON FIXER-M3 $0.11 To Order
Photo Part No Description Price (each) Stock
3783291 Clip, knee bolster pivot $4.77 To Order
3783291 Clip, knee bolster pivot $4.77 To Order
83111417AA CLIP PIPE RETENTION $3.51 IN STOCK
View All

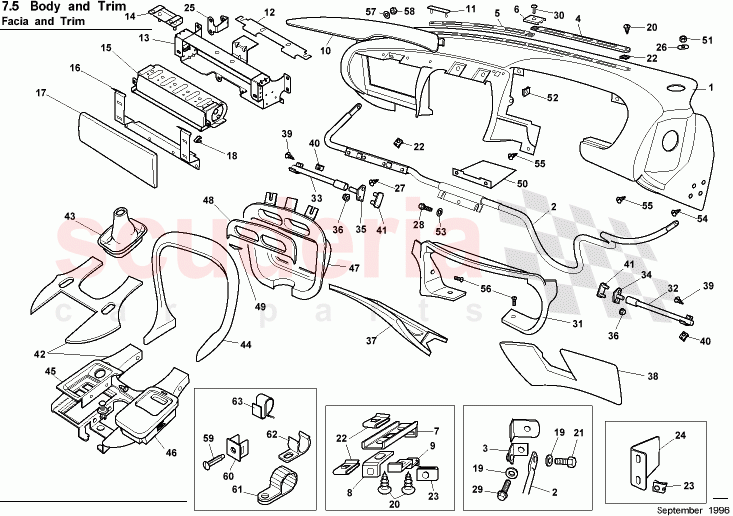

Facia and Trim of Aston Martin Aston Martin DB7 (1997) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
- 9784614
Label, scan tool connectors
USA/CDN only, fitted to knee bolster 		$2.19 1
- 8383672/XXX
Underscuttle assembly complete, passenger
LHD Volante, not USA/CDN 		- 1 Enquire
- 8383674/XXX
Underscuttle assembly complete, driver
LHD Volante, not USA/CDN 		- 1 Enquire
- 8382907/XXX
Underscuttle assembly complete, passenger
LHD Coupe, not USA/CDN 		- 1 Enquire
- 8382911/XXX
Underscuttle assembly complete, driver
LHD Coupe, not USA/CDN 		- 1 Enquire
- 8383914/XXX
Deployment door, passenger airbag
LHD, not USA/CDN 		- 1 Enquire
- 8383869/XXX
Facia assembly, complete
LHD not USA/CDN 		- 1 Enquire
- 8383809
ASSY LOWER STRUT
USA/CDN only 		$50.47 1
- 8383870/XXX
Facia assembly, complete
USA/CDN only 		- 1 Enquire
- 8383812/XXX
Knee bolster, passenger
USA/CDN only 		- 1 Enquire
- 8383810/XXX
Knee bolster, driver
USA/CDN only 		- 1 Enquire
- 8383671/XXX
Underscuttle assembly complete, passenger
RHD Volante 		- 1 Enquire
- 8383673/XXX
Underscuttle assembly complete, driver
RHD Volante 		- 1 Enquire
- 83111661AA
FACIA RAIL LHD (DUNHILL)
RHD Dunhill 		$833.83 1
- 83111660AA
FACIA RAIL RHD (DUNHILL)
LHD Dunhill 		$833.83 1
- 6983872
TUBE ASSY FACIA SUPPORT LHD
LHD 		$302.83 1
- 6983910
CARRIER ASY PASSENGR AIRBAG LHD
LHD 		$61.42 1
- 6983908
MOUNTING FRAME DEPLOYMENT DOOR LHD
LHD 		$199.14 1
- 8383876
FACIA VENEER PANEL ASY LHD
LHD 		$419.73 1
- 6983916
SUPPORT FACIA VENEER PANEL LHD
LHD 		$30.19 1
- 6983874
ASSY FINISHER INST. PACK LHD TRY 69-84811
LHD 		$325.85 1
- 6982899
BRACKET-FACIA END RH
LHD 		$7.23 1
- 8972290
IN CAR SENSOR 		$346.54 1
1 8383868/XXX
Facia assembly, complete
RHD 		- 1 Enquire
2 6982872
TUBE COMP ASSY FACIA SUPRT RHD
RHD 		$273.71 1
3 6982876
BRACKET ASSY FACIA SUPPORT LH 		$18.04 1
3 6982875
BRACKET ASSY FACIA SUPPORT RH 		$13.54 1
10 8383875
FACIA VENEER PANEL ASY RHD
RHD 		$398.88 1
12 6983915
SUPPORT FACIA VENEER PANEL RHD
RHD 		$23.15 1
13 6983909
CARRIER ASY PASSENGR AIRBAG RHD
RHD 		$81.09 1
16 6983907
MOUNTING FRAME DEPLOYMENT DOOR RHD
RHD 		$160.58 1
17 8383913/XXX
Deployment door, passenger airbag
RHD 		- 1 Enquire
24 6982898
BRACKET-FACIA END LH
RHD 		$35.99 1
31 6984810
INST FINISHER RHD
RHD 		$631.37 1
33 6984574
ASSY-LWR TUBE BOLSTER LH 		$213.56 1
37 8382906/XXX
Underscuttle assembly complete, passenger
RHD Coupe 		- 1 Enquire
38 8382910/XXX
Underscuttle assembly complete, driver
RHD Coupe 		- 1 Enquire
42 8383375
FINISHER TOP PNL ASY -RHD - AUTO
RHD Veneered Up to (V) 101620 		$501.10 1
42 8383376
FINISHER TOP PNL ASY -LHD-AUTO
LHD Veneered Up to (V) 101620 		$433.85 1
42 80110522AA
CONSOLE TOP FINISHER PANEL RHD AUTO
RHD Veneered From (V) 101621 		$831.53 1
42 80110523AA
CONSOLE TOP FINISHER PANEL LHD AUTO
LHD Veneered From (V) 101621 		$985.56 1
42 8383374
Console top finisher - manual
Veneered Up to (V) 101620 		- 1 Enquire
42 80110521AA
CONSOLE TOP FINISHER PANEL MANUAL
Veneered From (V) 101621 		$725.97 1
42 83111709AA
GEARSHIFT SURROUND PANEL - RHD AUTO (DUNHILL)
RHD Dunhill 		$1,436.08 1
42 83111710AA
Gearshift surround panel, auto
LHD Dunhill 		$1,087.29 1
42 83111708AA
GEARSHIFT SURROUND PANEL - MANUAL (DUNHILL)
Dunhill 		$1,479.21 1
46 8085292
ASHTRAY CLIP
Cut to length 		$19.74 1
46 6983367
FOAM STRIP-1445 mm
Cut to length 		$61.39 1
46 6983173
ASHTRAY ASSY COMP 		$117.33 1
47 8090046
FRONT PANEL- CONSOLE SURROUND
Without seat heater switches 		$368.06 1
47 80110861AA
PANEL-FRONT CONSOLE SURROUND (SEAT HEATER SWITCH)
With seat heater switches 		$571.47 1
48 83111659AA
A/C AIRVENT SURROUND PANEL (DUNHILL)
Dunhill 		$583.75 1
48 8390031
VENEER-AIRVENT SURROUND 		$231.73 1
49 8090018
CONSOLE BADGE- ASTON MARTIN 		$127.73 1
49 697290
PUSH ON FIXER-M3 		$0.11 2
62 3783291
Clip, knee bolster pivot
Up to EC 80323 		$4.77 4
62 3783291
Clip, knee bolster pivot
From EC 80323 		$4.77 2
62 83111417AA
CLIP PIPE RETENTION
From EC 80323
IN STOCK 		$3.51 2
