Volante Rear Quarter Glass Mechanism of Aston Martin Aston Martin DB7 (1997)

View All

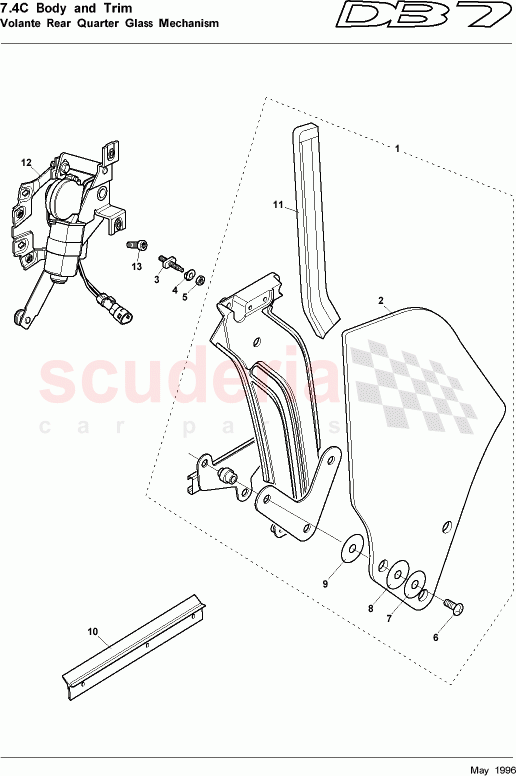

Aston Martin DB7 (1997) - Volante Rear Quarter Glass Mechanism

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	7690253	ASSY-COMP RR QTR GLASS LH	$1,092.94	To Order

Photo	Part No	Description	Price (each)	Stock
	7690254	ASSY-COMP RR QTR GLASS RH	$1,092.94	To Order
	7690253	ASSY-COMP RR QTR GLASS LH	$1,092.94	To Order

Photo	Part No	Description	Price (each)	Stock
	7790126	REAR QUARTER OUTER WAIST SEAL-RH-CONV	$167.93	To Order

Photo	Part No	Description	Price (each)	Stock
	7784191	ASSY SEAL RR QTR GLASS RH	$512.47	To Order

Photo	Part No	Description	Price (each)	Stock
	91668	ASSY-COMP REG RR-RH	$577.75	To Order

Photo	Part No	Description	Price (each)	Stock
	699236	PAN HEAD SCREW TORX DRIVE	$0.93	To Order

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
-	7690254	ASSY-COMP RR QTR GLASS RH	7690254 ASSY-COMP RR QTR GLASS RH Up to (V) 101620	$1,092.94	1
-	7690253	ASSY-COMP RR QTR GLASS LH	7690253 ASSY-COMP RR QTR GLASS LH From (V) 101621	$1,092.94	1
-	7690254	ASSY-COMP RR QTR GLASS RH	7690254 ASSY-COMP RR QTR GLASS RH From (V) 101621	$1,092.94	1
-	697437	SCREW No12 x 5/8 S T PAN HEAD AB	697437 SCREW No12 x 5/8 S T PAN HEAD AB From (V) 202164	$0.11	2
-	4281204	CABLE TIE MOUNT- STUD FIXING	4281204 CABLE TIE MOUNT- STUD FIXING From (V) 202164	$0.79	2
-	697617	WASHER M4 PLAIN FORM C	697617 WASHER M4 PLAIN FORM C From (V) 202164	$0.08	2
-	698990	NUT DOMED M4	698990 NUT DOMED M4 From (V) 202164	$0.22	2
-	697295	NUT M4 HEX	697295 NUT M4 HEX From (V) 202164	$0.03	4
-	7784192	ASSY SEAL REAR QTR GLASS LH	7784192 ASSY SEAL REAR QTR GLASS LH	$575.05	1
-	91669	ASSY-COMP REG RR-LH	91669 ASSY-COMP REG RR-LH	$577.75	1
-	7790125	REAR QUARTER OUTER WAIST SEAL-LH-CONV	7790125 REAR QUARTER OUTER WAIST SEAL-LH-CONV	$156.72	1
1	7690253	ASSY-COMP RR QTR GLASS LH	7690253 ASSY-COMP RR QTR GLASS LH Up to (V) 101620	$1,092.94	1
2	7690254	ASSY-COMP RR QTR GLASS RH	7690254 ASSY-COMP RR QTR GLASS RH	$1,092.94	1
2	7690253	ASSY-COMP RR QTR GLASS LH	7690253 ASSY-COMP RR QTR GLASS LH	$1,092.94	1
10	7790126	REAR QUARTER OUTER WAIST SEAL-RH-CONV	7790126 REAR QUARTER OUTER WAIST SEAL-RH-CONV	$167.93	1
11	7784191	ASSY SEAL RR QTR GLASS RH	7784191 ASSY SEAL RR QTR GLASS RH	$512.47	1
12	91668	ASSY-COMP REG RR-RH	91668 ASSY-COMP REG RR-RH	$577.75	1
13	699236	PAN HEAD SCREW TORX DRIVE	699236 PAN HEAD SCREW TORX DRIVE	$0.93	8
