Aston Martin DB7 (1997) - Door Casings, Fittings and Seals

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
8384935 DOOR POCKET-RH $47.36 To Order
Photo Part No Description Price (each) Stock
8383130 VENEER UPPR DOOR RH $193.77 To Order
Photo Part No Description Price (each) Stock
8382311/XXX Lower insert assembly, door - RH Enquire To Order
Photo Part No Description Price (each) Stock
8382316 Vent lower, door - RH Enquire To Order
Photo Part No Description Price (each) Stock
8982318 BOX VENT LOWER DOOR $208.16 To Order
Photo Part No Description Price (each) Stock
8982320 GASKET VENT LWR DOOR $1.94 To Order
Photo Part No Description Price (each) Stock
8982322 VENT UPPER DOOR CASE RH $11.03 To Order
Photo Part No Description Price (each) Stock
8982326 VENT UPPER DUCT RH $89.21 To Order
Photo Part No Description Price (each) Stock
8982329 VENT LOWER DUCT RH $101.47 To Order
Photo Part No Description Price (each) Stock
77123532AA DOOR WATER SHEDDER RH $57.03 To Order
Photo Part No Description Price (each) Stock
8382337/XXX Door casing assembly - RH Enquire To Order
Photo Part No Description Price (each) Stock
3783381/XXX Door mirror assembly - RH flat Enquire To Order
Photo Part No Description Price (each) Stock
3782354 BEZEL DOOR MIRROR RH $319.90 To Order
Photo Part No Description Price (each) Stock
3782159 LENS DOOR MIRROR RH $162.55 To Order
Photo Part No Description Price (each) Stock
3782356/XXX Case, door mirror - RH Enquire To Order
Photo Part No Description Price (each) Stock
7784316 ASSY SEAL-DOOR RH $1,178.08 To Order
Photo Part No Description Price (each) Stock
7790122 WAISTRAIL INNER-RH $247.95 To Order
Photo Part No Description Price (each) Stock
6583141 RETAINER WAIST SEAL ASSY INR DR RH $67.06 To Order
Photo Part No Description Price (each) Stock
8383563 ASSY-RETAINER WEATHERSTRIP RH $240.55 To Order
Photo Part No Description Price (each) Stock
697613 SCREW M4 x 10 REC CSK HEAD-BLACK $0.13 To Order
Photo Part No Description Price (each) Stock
8382348 FOAM SEAL SPEAKER DR TO TRIM $32.72 To Order
View All

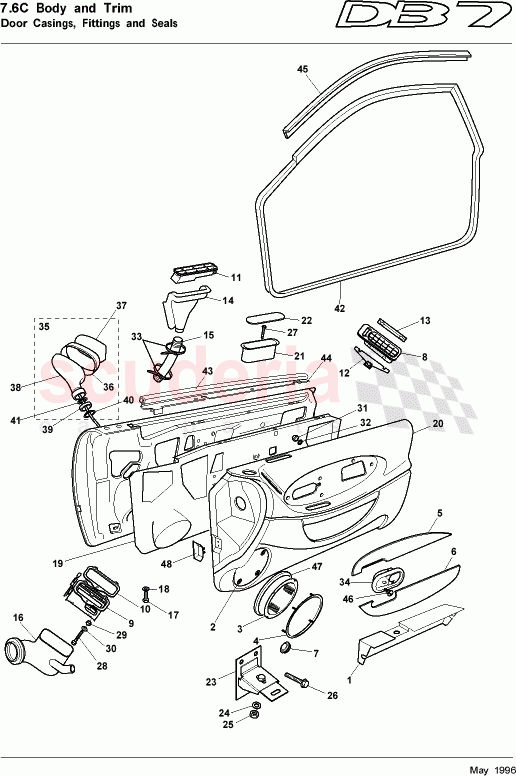

Door Casings, Fittings and Seals of Aston Martin Aston Martin DB7 (1997) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
- 83110672AAW
Door casing assembly - RH
LHD Not USA/CDN From (V) 101621 Up to (V) 202682 		- 1 Enquire
- 83110673AAW
CASING ASSY DOOR LH LHD (NON FED)
LHD Not USA/CDN From (V) 101621 Up to (V) 202682 		- 1 Enquire
- 83110596AAW
CASING ASSY DOOR RH LHD FED
LHD USA/CDN From (V) 101621 Up to (V) 202571 		$2,060.99 1
- 83110597AAW
CASING ASSY DOOR LH LHD FED
LHD USA/CDN From (V) 101621 Up to (V) 202571 		$2,060.99 1
- 83110668AAW
CASING ASSY DOOR RH RHD
RHD From (V) 101621 Up to (V) 202892 		- 1 Enquire
- 83110669AAW
CASING ASSY DOOR LH RHD
RHD From (V) 101621 Up to (V) 202892 		- 1 Enquire
- 8383136/XXX
Door casing assembly - RH
LHD Not USA/CDN Up to (V) 101620 		- 1 Enquire
- 8383137/XXX
Door casing assembly - LH
LHD Not USA/CDN Up to (V) 101620 		- 1 Enquire
- 83111338AAW
CASING ASSY DOOR RH LHD (NON FED)
LHD Not USA/CDN From (V) 202683 		$2,084.94 1
- 83111339AAW
CASING ASSY DOOR LH LHD (NON FED)
LHD Not USA/CDN From (V) 202683 		$1,886.31 1
- 8383666/XXX
Door casing assembly - RH
LHD USA/CDN Up to (V) 101620 		- 1 Enquire
- 8383667/XXX
Door casing assembly - LH
LHD USA/CDN Up to (V) 101620 		- 1 Enquire
- 83111856AAW
Door casing assembly - RH
LHD USA/CDN From (V) 202572 		- 1 Enquire
- 83111857AAW
Door casing assembly - LH
LHD USA/CDN From (V) 202572 		- 1 Enquire
- 7784317
ASSY SEAL-DOOR LH
Coupe: for Volante see 7.6D 		$1,249.80 1
- 83111788AAW
Door casing assembly, complete - RH
LHD Dunhill Non-federal 		- 1 Enquire
- 83111789AAW
Door casing assembly, complete - LH
LHD Dunhill Non-federal 		- 1 Enquire
- 8382338/XXX
Door casing assembly - LH
RHD Up to (V) 101620 		- 1 Enquire
- 83111790AAW
Door casing assembly, complete - RH
LHD Dunhill Federal 		- 1 Enquire
- 83111791AAW
Door casing assembly, complete - LH
LHD Dunhill Federal 		- 1 Enquire
- 83111342AAW
CASING ASSY DOOR RH RHD
RHD From (V) 202893 		$2,362.66 1
- 83111343AAW
CASING ASSY DOOR LH RHD
RHD From (V) 202893 		$2,362.66 1
- 3783382/XXX
Door mirror assembly - RH convex
LHD Not USA/CDN 		- 1 Enquire
- 3782159
LENS DOOR MIRROR RH
LHD Not USA/CDN 		$162.55 1
- 7890258/XXX
Door mirror assembly - RH
LHD GCC only 		- 1 Enquire
- 7890387
LENS-DOOR MIRROR RH LHD (GCC)
LHD GCC only 		$229.20 1
- 83111786AAW
Door casing assembly, complete - RH
RHD Dunhill 		- 1 Enquire
- 83111787AAW
Door casing assembly, complete - LH
RHD Dunhill 		- 1 Enquire
- 3783383/XXX
Door mirror assembly - RH convex
LHD USA/CDN 		- 1 Enquire
- 3783139
LENS DOOR MIRROR RH LHD CONVEX USA INSCRIBED GLASS
LHD USA/CDN 		$111.45 1
- 8990366
BEZEL ASSY-VENT AIR CONTROL RH
Later cars 		$34.99 1
- 8990367
BEZEL ASSY VENT AIR CONTROL LH
Later cars 		$34.99 1
- 83111662AA
DOOR RAIL RH (DUNHILL)
Dunhill 		$861.03 1
- 83111663AA
DOOR RAIL LH (DUNHILL)
Dunhill 		$861.03 1
- 3783384/XXX
Door mirror assembly - LH convex
RHD 		- 1 Enquire
- 3783385/XXX
Door mirror assembly - LH flat
LHD 		- 1 Enquire
- 3782160
LENS DOOR MIRROR LH LHD FLAT
RHD 		$145.15 1
- 3782160
LENS DOOR MIRROR LH LHD FLAT
LHD 		$145.15 1
- 8383131
VENEER UPPR DOOR LH 		$193.77 1
- 8383564
ASSY-RETAINER WEATHERSTRIP LH 		$542.43 1
- 8382312/XXX
Lower insert assembly, door - LH 		- 1 Enquire
- 8382313/XXX
Cover, insert lower door - RH 		- 1 Enquire
- 8382314/XXX
Cover, insert lower door - LH 		- 1 Enquire
- 8982323
VENT UPPER DOOR CASE LH 		$11.26 1
- 65123822AA
INSULATION FOAM PANEL DOOR RH 		$298.74 1
- 65123823AA
INSULATION FOAM PANEL DOOR LH 		$298.74 1
- 7790121
WAISTRAIL INNER-LH 		$247.95 1
- 8384936
DOOR POCKET-LH 		$51.59 1
- 8982319
BOX VENT LOWER DOOR 		$32.51 1
- 6583142
RETAINER WAIST SEAL ASSY INR DR LH 		$164.42 1
- 8982327
VENT UPPER DUCT LH 		$89.21 1
- 8982330
VENT LOWER DUCT LH 		$29.71 1
- 3782355
BEZEL DOOR MIRROR LH 		$319.90 1
- 3782357/XXX
Case, door mirror - LH 		- 1 Enquire
- 8382317
Vent lower, door - LH 		- 1 Enquire
- 77123531AA
DOOR WATER SHEDDER LH 		$57.03 1
- 77111956AA
A POST AREA - SECONDARY SEAL 		$4.52 2
- 8383144
Bracket, front vertical door 		- 2 Enquire
- 8982321
FOAM INSERT LOWER DOOR 		$2.09 2
- 8382331
Seal, door speaker 		- 2 Enquire
- 697591
SCREW No8 x 9.5 FLANGED AB S.T.
IN STOCK 		$0.08 4
- 697485
WASHER M6 PLAIN FORM C 		$0.08 -
- 697472
SCREW M6 x 12 REC PAN HEAD 4.8 		$0.08 -
- 698689
ALPHABOND 1004 		$33.92 -
1 8384935
DOOR POCKET-RH 		$47.36 1
5 8383130
VENEER UPPR DOOR RH 		$193.77 1
6 8382311/XXX
Lower insert assembly, door - RH 		- 1 Enquire
8 8382316
Vent lower, door - RH 		- 1 Enquire
9 8982318
BOX VENT LOWER DOOR 		$208.16 1
10 8982320
GASKET VENT LWR DOOR 		$1.94 2
11 8982322
VENT UPPER DOOR CASE RH 		$11.03 1
14 8982326
VENT UPPER DUCT RH 		$89.21 1
16 8982329
VENT LOWER DUCT RH 		$101.47 1
19 77123532AA
DOOR WATER SHEDDER RH 		$57.03 1
20 8382337/XXX
Door casing assembly - RH
RHD Up to (V) 101620 		- 1 Enquire
35 3783381/XXX
Door mirror assembly - RH flat
RHD 		- 1 Enquire
36 3782354
BEZEL DOOR MIRROR RH 		$319.90 1
37 3782159
LENS DOOR MIRROR RH
RHD 		$162.55 1
38 3782356/XXX
Case, door mirror - RH 		- 1 Enquire
42 7784316
ASSY SEAL-DOOR RH
Coupe: for Volante see 7.6D 		$1,178.08 1
43 7790122
WAISTRAIL INNER-RH 		$247.95 1
44 6583141
RETAINER WAIST SEAL ASSY INR DR RH 		$67.06 1
45 8383563
ASSY-RETAINER WEATHERSTRIP RH 		$240.55 1
46 697613
SCREW M4 x 10 REC CSK HEAD-BLACK 		$0.13 2
47 8382348
FOAM SEAL SPEAKER DR TO TRIM 		$32.72 2
