16 - Suspension - Front - 16.2 - Uprights Front

McLaren P1 Coupe

Find Your Part

McLaren P1 Coupe - 16 - SUSPENSION - FRONT - 16.2 - UPRIGHTS FRONT

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
12B0063CP Upright - Suspension - Front - LH $4,041.55 To Order
Photo Part No Description Price (each) Stock
11B0541CP TOPHAT - CAMBER ADJUSTMENT $62.83 To Order
Photo Part No Description Price (each) Stock
11B0739CP WASHER - CAMBER ADJUSTMENT $43.49 To Order
Photo Part No Description Price (each) Stock
RA250 SCREW - M3X12 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
11B0397CP Tophat - Trackrod - Outer Ball Joint - +2.5mm $57.98 To Order
Photo Part No Description Price (each) Stock
11B0205CP Washer - TrackRod Obj $8.68 To Order
Photo Part No Description Price (each) Stock
14B0373CP Stub Axle - Front $116.00 To Order
Photo Part No Description Price (each) Stock
11B0566CP NUT - M26 - 12POINT - HEX $11.58 To Order
Photo Part No Description Price (each) Stock
28BA474CP WHEEL HUB ASSY - BEARING $618.13 To Order
Photo Part No Description Price (each) Stock
11B0595CP Bolt - M12x30 - Hex $38.65 To Order
Photo Part No Description Price (each) Stock
11B0596CP Washer - M12x23x2 $33.84 To Order
Photo Part No Description Price (each) Stock
15BA315CP PROTECTOR CAP - HUB $38.40 To Order
Photo Part No Description Price (each) Stock
12B0064CP Upright - Suspension - Front - RH $4,041.55 To Order
View All

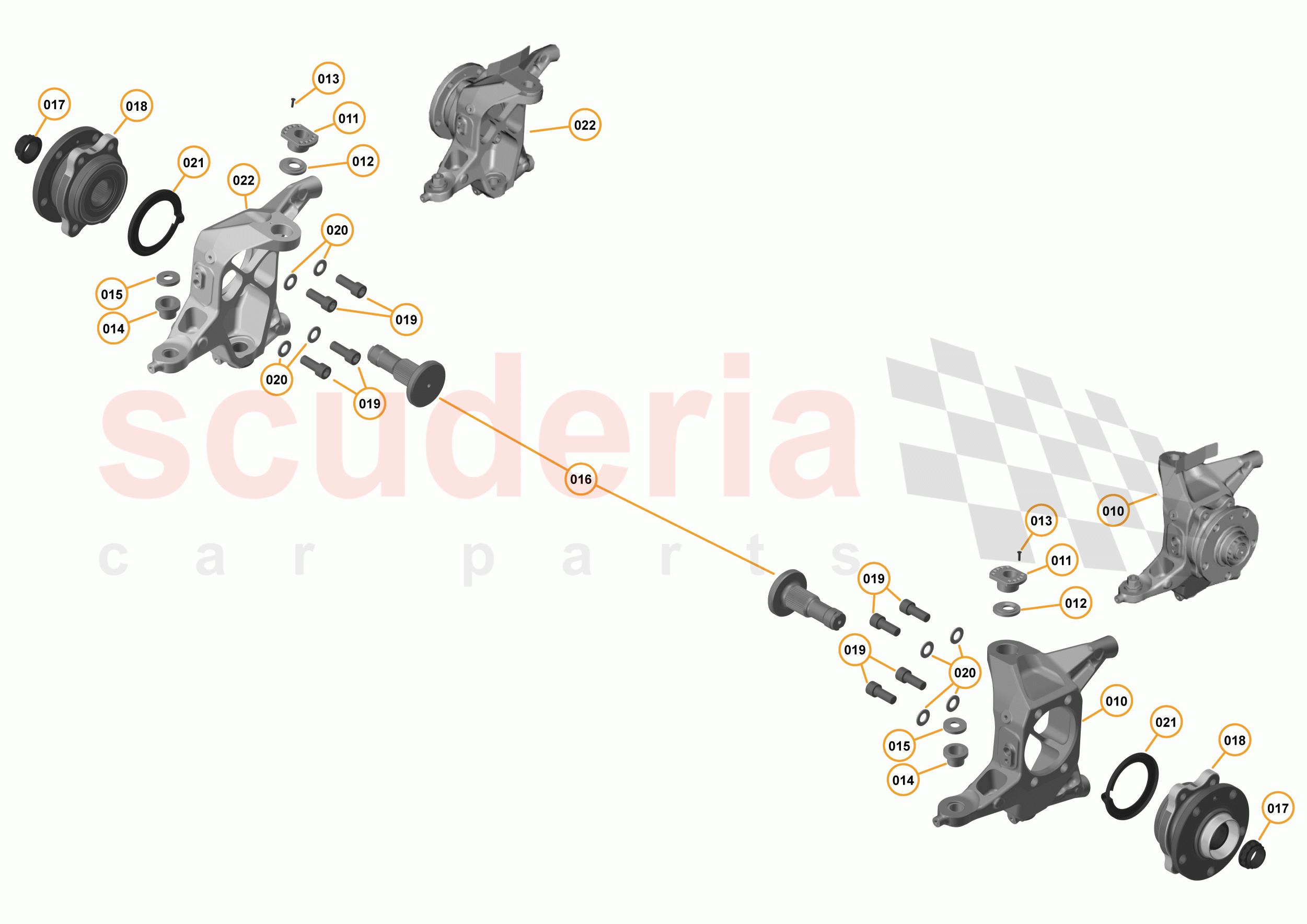

16 - SUSPENSION - FRONT - 16.2 - UPRIGHTS FRONT of McLaren McLaren P1 Coupe Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 12B0063CP
Upright - Suspension - Front - LH 		$4,041.55 1
011 11B0541CP
TOPHAT - CAMBER ADJUSTMENT 		$62.83 2
012 11B0739CP
WASHER - CAMBER ADJUSTMENT 		$43.49 2
013 RA250
SCREW - M3X12 - HEX 		- 2 Enquire
014 11B0397CP
Tophat - Trackrod - Outer Ball Joint - +2.5mm 		$57.98 2
015 11B0205CP
Washer - TrackRod Obj 		$8.68 2
016 14B0373CP
Stub Axle - Front 		$116.00 2
017 11B0566CP
NUT - M26 - 12POINT - HEX 		$11.58 2
018 28BA474CP
WHEEL HUB ASSY - BEARING 		$618.13 2
019 11B0595CP
Bolt - M12x30 - Hex 		$38.65 8
020 11B0596CP
Washer - M12x23x2 		$33.84 8
021 15BA315CP
PROTECTOR CAP - HUB 		$38.40 2
022 12B0064CP
Upright - Suspension - Front - RH 		$4,041.55 1
