23 - Brakes - Systems - 23.2 - Brake Boost System

McLaren P1 Coupe

Find Your Part

McLaren P1 Coupe - 23 - BRAKES - SYSTEMS - 23.2 - BRAKE BOOST SYSTEM

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
12C0346CP Heatshield - Wheel Speed Sensor - Rear $67.50 To Order
Photo Part No Description Price (each) Stock
12M0735CP SENSOR - WHEEL SPEED $144.68 To Order
Photo Part No Description Price (each) Stock
00RA065 SCREW - M6X12-8.8 - FLANGE HEX Enquire To Order
Photo Part No Description Price (each) Stock
12B0565CP Bracket - Wheel Speed Sensor - Front - LH $106.09 To Order
Photo Part No Description Price (each) Stock
00RA064 BOLT - M5X12 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
12B0567CP Bracket - Wheel Speed Sensor - Front - RH $106.09 To Order
Photo Part No Description Price (each) Stock
11M0432CP SENSOR - WHEEL SPEED - REAR $191.66 To Order
Photo Part No Description Price (each) Stock
12B0569CP Bracket - Wheel Speed Sensor - Rear - LH $106.09 To Order
Photo Part No Description Price (each) Stock
00RB042 SWIVEL PIPE CLIP Enquire To Order
Photo Part No Description Price (each) Stock
00RG019 SWIVEL - 6.5X10.5 FIRTREE BASE Enquire To Order
Photo Part No Description Price (each) Stock
12B0571CP Bracket - Wheel Speed Sensor - Rear - RH $106.09 To Order
Photo Part No Description Price (each) Stock
12M0594CP SENSOR - YAW RATE $289.37 To Order
Photo Part No Description Price (each) Stock
00RA055 NUT - M6 - LOCKING - HEX Enquire To Order
Photo Part No Description Price (each) Stock
11C0607CP ABS Modulator $1,924.95 To Order
Photo Part No Description Price (each) Stock
11C0045CP Mount - Anti-Vibration - Rubber $38.56 To Order
Photo Part No Description Price (each) Stock
12C0037CP Plate Assy - ABS Modulator $135.03 To Order
Photo Part No Description Price (each) Stock
11F0225CP BOLT-CAP HEAD-SOCK24-M10X18 $72.33 To Order
Photo Part No Description Price (each) Stock
12C0203CP Bracket - ABS Modulator $268.34 To Order
Photo Part No Description Price (each) Stock
00RA054 Nut - M5 - Lock Hex Enquire To Order
Photo Part No Description Price (each) Stock
00RA061 Screw - M6x16 - Flange Hex Enquire To Order
Photo Part No Description Price (each) Stock
00RA083 SCREW - M6X20 - FLANGE HEX Enquire To Order
Photo Part No Description Price (each) Stock
12C0302CP Brake Booster Assy - inc master cylinder $1,234.70 To Order
Photo Part No Description Price (each) Stock
12C0290CP BRACKET - BRAKE BOOSTER MOUNTING $655.93 To Order
Photo Part No Description Price (each) Stock
12C0306CP EXTENSION ROD - BRAKE BOOSTER $250.79 To Order
Photo Part No Description Price (each) Stock
00RA495 Half Nut - M12x1.5 Enquire To Order
Photo Part No Description Price (each) Stock
11CA005CP PIN - PISTON ROD TO BRAKE PEDAL $3.26 To Order
Photo Part No Description Price (each) Stock
11C0286CP SPRING CLIP - CLEVIS PIN $5.77 To Order
Photo Part No Description Price (each) Stock
12C0323CP Connector - Vacuum Hose Enquire To Order
Photo Part No Description Price (each) Stock
12C0286CP Brake Fluid Reservoir $424.41 To Order
Photo Part No Description Price (each) Stock
12C0297CP Hose - Primary - Brake Fluid Reservoir $24.55 To Order
Photo Part No Description Price (each) Stock
12C0298CP Hose - Secondary - Brake Fluid Reservoir $22.91 To Order
Photo Part No Description Price (each) Stock
12C0308CP BOLT - M8X1.25X197 - BRAKE BOOSTER TO BRACKET $48.22 To Order
Photo Part No Description Price (each) Stock
00RB035 Cable Tie - Female - Dia 8-20 Enquire To Order
View All

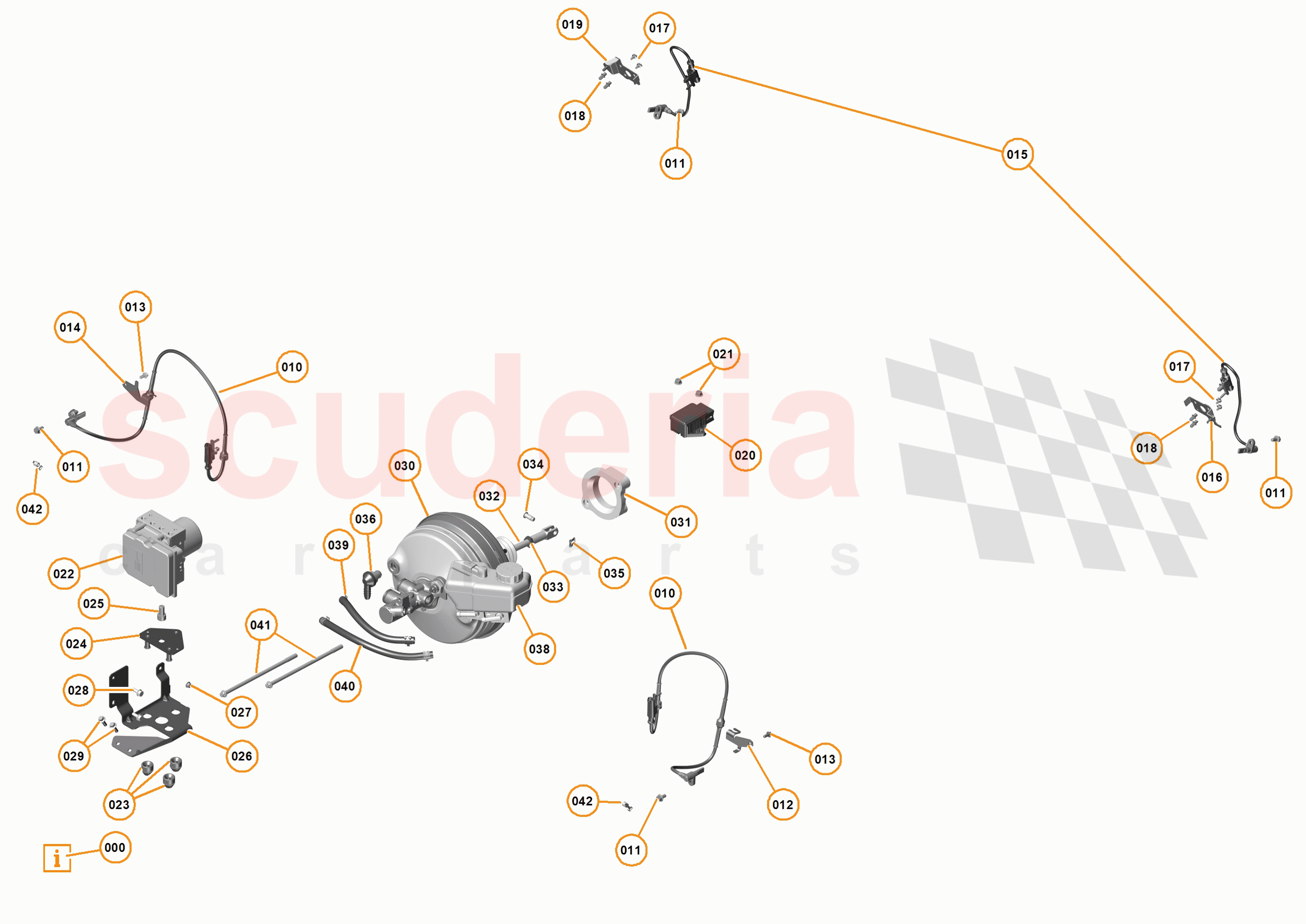

23 - BRAKES - SYSTEMS - 23.2 - BRAKE BOOST SYSTEM of McLaren McLaren P1 Coupe Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
000 12C0346CP
Heatshield - Wheel Speed Sensor - Rear 		$67.50 2
010 12M0735CP
SENSOR - WHEEL SPEED 		$144.68 2
011 00RA065
SCREW - M6X12-8.8 - FLANGE HEX 		- 4 Enquire
012 12B0565CP
Bracket - Wheel Speed Sensor - Front - LH 		$106.09 1
013 00RA064
BOLT - M5X12 - HEX 		- 4 Enquire
014 12B0567CP
Bracket - Wheel Speed Sensor - Front - RH 		$106.09 1
015 11M0432CP
SENSOR - WHEEL SPEED - REAR 		$191.66 2
016 12B0569CP
Bracket - Wheel Speed Sensor - Rear - LH 		$106.09 1
017 00RB042
SWIVEL PIPE CLIP 		- 4 Enquire
018 00RG019
SWIVEL - 6.5X10.5 FIRTREE BASE 		- 4 Enquire
019 12B0571CP
Bracket - Wheel Speed Sensor - Rear - RH 		$106.09 1
020 12M0594CP
SENSOR - YAW RATE 		$289.37 1
021 00RA055
NUT - M6 - LOCKING - HEX 		- 2 Enquire
022 11C0607CP
ABS Modulator 		$1,924.95 1
023 11C0045CP
Mount - Anti-Vibration - Rubber 		$38.56 3
024 12C0037CP
Plate Assy - ABS Modulator 		$135.03 1
025 11F0225CP
BOLT-CAP HEAD-SOCK24-M10X18 		$72.33 1
026 12C0203CP
Bracket - ABS Modulator 		$268.34 1
027 00RA054
Nut - M5 - Lock Hex 		- 1 Enquire
028 00RA061
Screw - M6x16 - Flange Hex 		- 2 Enquire
029 00RA083
SCREW - M6X20 - FLANGE HEX 		- 4 Enquire
030 12C0302CP
Brake Booster Assy - inc master cylinder 		$1,234.70 1
031 12C0290CP
BRACKET - BRAKE BOOSTER MOUNTING 		$655.93 1
032 12C0306CP
EXTENSION ROD - BRAKE BOOSTER
Superseded parts: 12C0214CP; 		$250.79 1
033 00RA495
Half Nut - M12x1.5 		- 1 Enquire
034 11CA005CP
PIN - PISTON ROD TO BRAKE PEDAL 		$3.26 1
035 11C0286CP
SPRING CLIP - CLEVIS PIN 		$5.77 1
036 12C0323CP
Connector - Vacuum Hose 		- 1 Enquire
038 12C0286CP
Brake Fluid Reservoir 		$424.41 1
039 12C0297CP
Hose - Primary - Brake Fluid Reservoir 		$24.55 1
040 12C0298CP
Hose - Secondary - Brake Fluid Reservoir 		$22.91 1
041 12C0308CP
BOLT - M8X1.25X197 - BRAKE BOOSTER TO BRACKET 		$48.22 2
042 00RB035
Cable Tie - Female - Dia 8-20 		- 1 Enquire
