17 - Suspension - Rear - 17.2 - Uprights Rear

McLaren P1 Coupe

Find Your Part

McLaren P1 Coupe - 17 - SUSPENSION - REAR - 17.2 - UPRIGHTS REAR

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
12B0069CP Upright - Suspension - Rear - LH $5,069.65 To Order
Photo Part No Description Price (each) Stock
11B0541CP TOPHAT - CAMBER ADJUSTMENT $62.39 To Order
Photo Part No Description Price (each) Stock
11B0739CP WASHER - CAMBER ADJUSTMENT $43.18 To Order
Photo Part No Description Price (each) Stock
RA250 SCREW - M3X12 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
11B0397CP Tophat - Trackrod - Outer Ball Joint - +2.5mm $57.58 To Order
Photo Part No Description Price (each) Stock
11B0205CP Washer - TrackRod Obj $8.62 To Order
Photo Part No Description Price (each) Stock
28BA474CP WHEEL HUB ASSY - BEARING $613.84 To Order
Photo Part No Description Price (each) Stock
11B0595CP Bolt - M12x30 - Hex $38.39 To Order
Photo Part No Description Price (each) Stock
11B0596CP Washer - M12x23x2 $33.60 To Order
Photo Part No Description Price (each) Stock
15BA315CP PROTECTOR CAP - HUB $38.14 To Order
Photo Part No Description Price (each) Stock
12B0070CP Upright - Suspension - Rear - RH $4,839.23 To Order
Photo Part No Description Price (each) Stock
00RA230 BOLT-HEX HD-FLANGE-M14X110X2.0 Enquire To Order
Photo Part No Description Price (each) Stock
00RA231 Nut - M14x2.0 - Locked Hex Enquire To Order
Photo Part No Description Price (each) Stock
11D0122CP Heatshield - Trackrod $57.58 To Order
Photo Part No Description Price (each) Stock
12B0574CP Heatshield - Lower - Outer Bush $124.80 To Order
Photo Part No Description Price (each) Stock
00RA087 SCREW - M5X10 - HEX Enquire To Order
View All

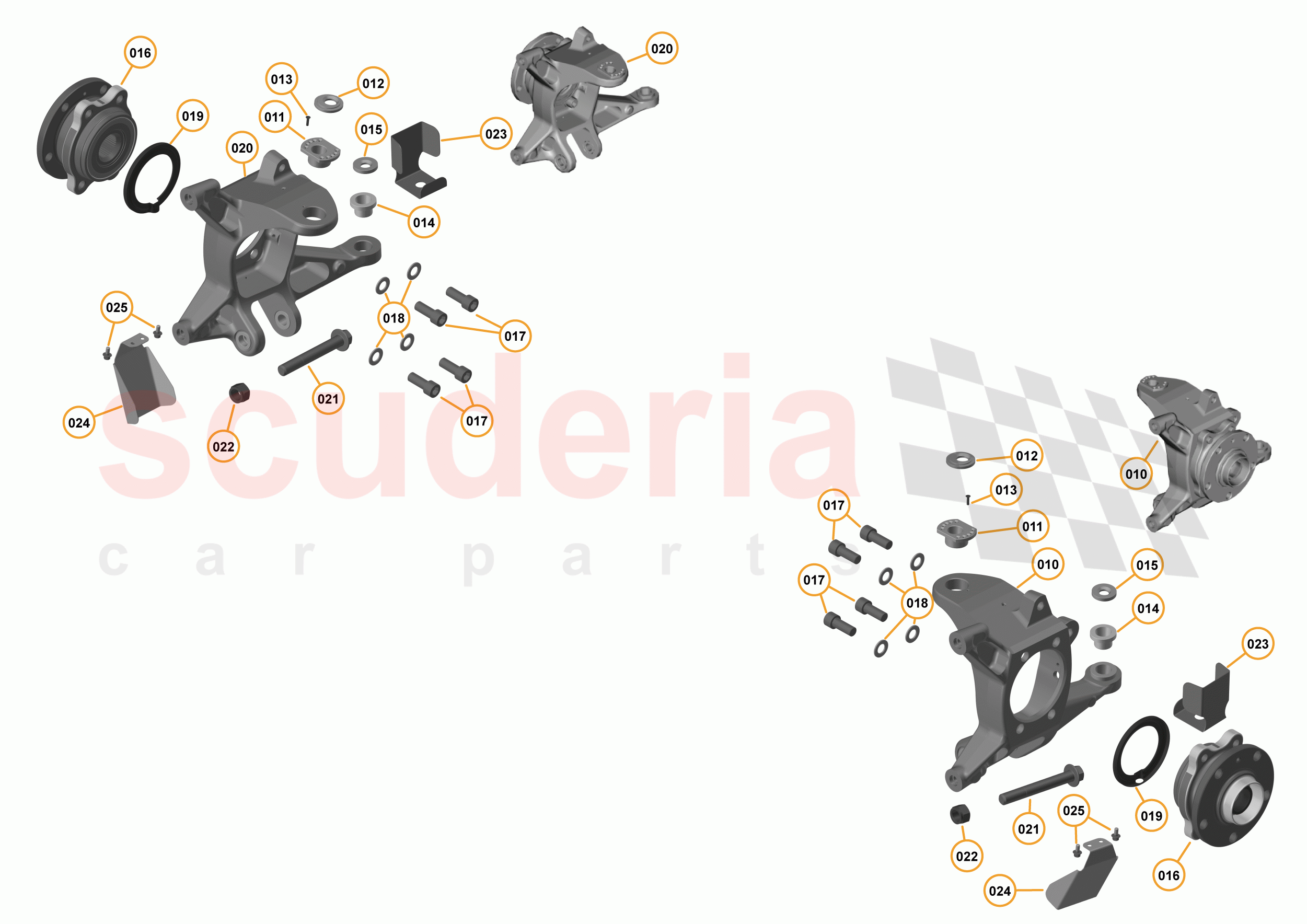

17 - SUSPENSION - REAR - 17.2 - UPRIGHTS REAR of McLaren McLaren P1 Coupe Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 12B0069CP
Upright - Suspension - Rear - LH 		$5,069.65 1
011 11B0541CP
TOPHAT - CAMBER ADJUSTMENT 		$62.39 2
012 11B0739CP
WASHER - CAMBER ADJUSTMENT 		$43.18 2
013 RA250
SCREW - M3X12 - HEX 		- 2 Enquire
014 11B0397CP
Tophat - Trackrod - Outer Ball Joint - +2.5mm 		$57.58 2
015 11B0205CP
Washer - TrackRod Obj 		$8.62 2
016 28BA474CP
WHEEL HUB ASSY - BEARING 		$613.84 2
017 11B0595CP
Bolt - M12x30 - Hex 		$38.39 8
018 11B0596CP
Washer - M12x23x2 		$33.60 8
019 15BA315CP
PROTECTOR CAP - HUB 		$38.14 2
020 12B0070CP
Upright - Suspension - Rear - RH 		$4,839.23 1
021 00RA230
BOLT-HEX HD-FLANGE-M14X110X2.0 		- 2 Enquire
022 00RA231
Nut - M14x2.0 - Locked Hex 		- 2 Enquire
023 11D0122CP
Heatshield - Trackrod 		$57.58 2
024 12B0574CP
Heatshield - Lower - Outer Bush 		$124.80 2
025 00RA087
SCREW - M5X10 - HEX 		- 4 Enquire
