26 - Fuel Tank - 26.2 - Fuel Tank Retention

McLaren P1 Coupe

Find Your Part

McLaren P1 Coupe - 26 - FUEL TANK - 26.2 - FUEL TANK RETENTION

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
12K0049CP Foam Pad - Fuel Tank - Front - Lower - LH $47.87 To Order
Photo Part No Description Price (each) Stock
12K0050CP Foam Pad - Fuel Tank - Front - Lower - RH $47.87 To Order
Photo Part No Description Price (each) Stock
12K0052CP Foam Pad - Fuel Tank - Cross Member $124.49 To Order
Photo Part No Description Price (each) Stock
12K0053CP Foam Pad - Fuel Tank - Rear $33.51 To Order
Photo Part No Description Price (each) Stock
12K0054CP Foam Pad - Fuel Tank - Front - Upper - RH $274.10 To Order
Photo Part No Description Price (each) Stock
12K0055CP Foam Pad - Fuel Tank - Front - Upper - LH $272.61 To Order
Photo Part No Description Price (each) Stock
11K0077CP Mounting Strap - Fuel Tank $48.18 To Order
Photo Part No Description Price (each) Stock
11K0138CP Mounting Strap - Moulded - Fuel Tank $57.80 To Order
Photo Part No Description Price (each) Stock
11K0105CP STUD PLATE - M6X18 - FUEL TANK $33.73 To Order
Photo Part No Description Price (each) Stock
13K0022CP Bracket - Fuel Tank - Lower $17.32 To Order
Photo Part No Description Price (each) Stock
00RA055 NUT - M6 - LOCKING - HEX Enquire To Order
Photo Part No Description Price (each) Stock
00RG010 NUT PROTECTOR - M6 -REEVITE Enquire To Order
Photo Part No Description Price (each) Stock
00RA257 BOLT-HEX SOCKET HD24AP-M6X55-8 Enquire To Order
Photo Part No Description Price (each) Stock
13K0021CP BUSH STRAP - FUEL TANK $6.74 To Order
Photo Part No Description Price (each) Stock
11K0139CP Bracket - Fuel Tank Mounting - Tensioner $125.28 To Order
Photo Part No Description Price (each) Stock
11K0110CP Turnbuckle - Strap - Fuel Tank $33.73 To Order
Photo Part No Description Price (each) Stock
11K0102CP Spacer - Turnbuckle 8mm Long - Fuel Tank $28.89 To Order
Photo Part No Description Price (each) Stock
11K0109CP Nut - Strap - Fuel Tank $12.51 To Order
Photo Part No Description Price (each) Stock
00RA252 Screw - M6x20 - Hex Socket Enquire To Order
Photo Part No Description Price (each) Stock
12K0061CP Retaining Strap - Fuel Cell - Rear $163.83 To Order
Photo Part No Description Price (each) Stock
00RA065 SCREW - M6X12-8.8 - FLANGE HEX Enquire To Order
Photo Part No Description Price (each) Stock
00RA083 SCREW - M6X20 - FLANGE HEX Enquire To Order
View All

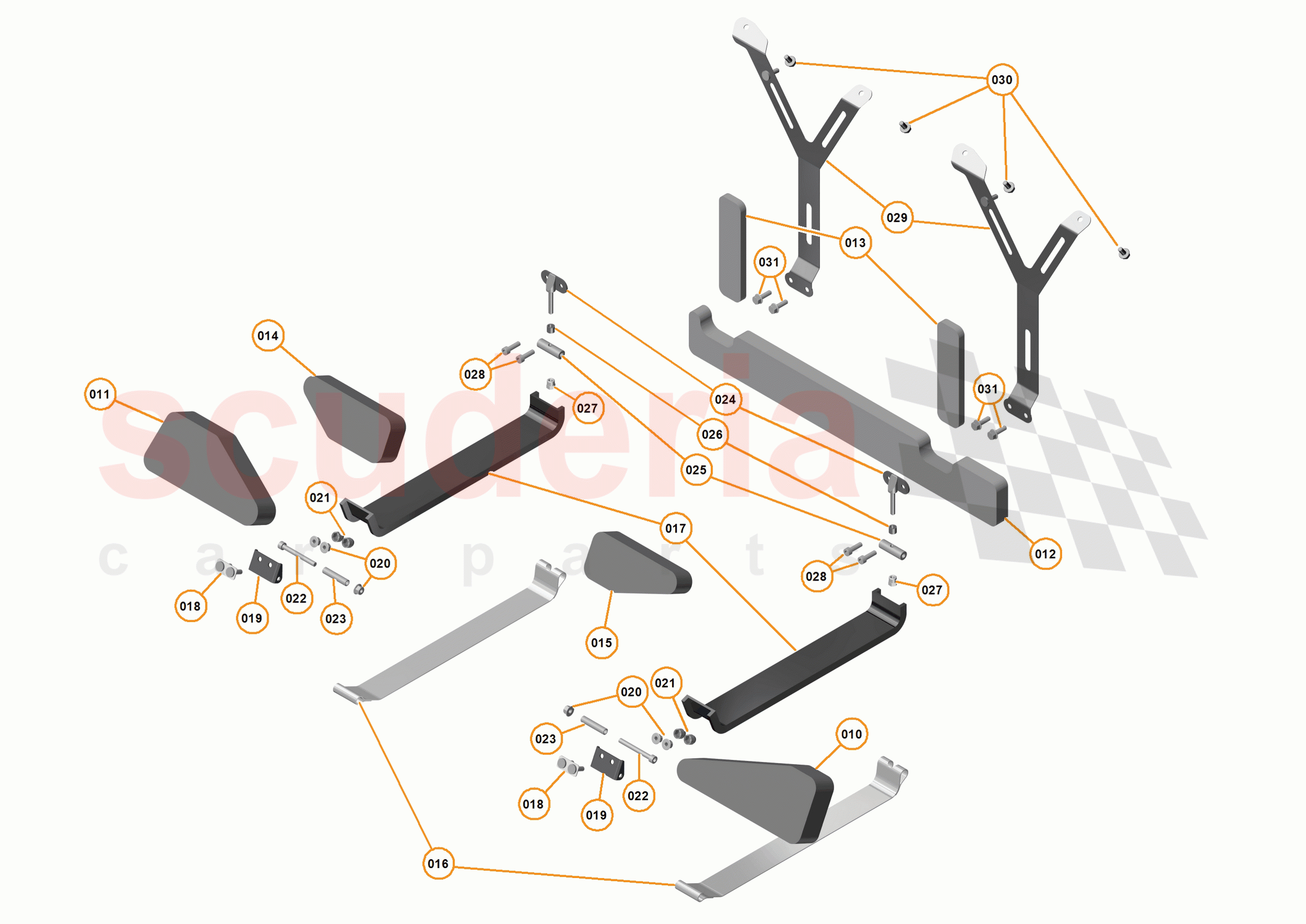

26 - FUEL TANK - 26.2 - FUEL TANK RETENTION of McLaren McLaren P1 Coupe Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 12K0049CP
Foam Pad - Fuel Tank - Front - Lower - LH 		$47.87 1
011 12K0050CP
Foam Pad - Fuel Tank - Front - Lower - RH 		$47.87 1
012 12K0052CP
Foam Pad - Fuel Tank - Cross Member 		$124.49 1
013 12K0053CP
Foam Pad - Fuel Tank - Rear 		$33.51 1
014 12K0054CP
Foam Pad - Fuel Tank - Front - Upper - RH 		$274.10 1
015 12K0055CP
Foam Pad - Fuel Tank - Front - Upper - LH 		$272.61 1
016 11K0077CP
Mounting Strap - Fuel Tank 		$48.18 2
017 11K0138CP
Mounting Strap - Moulded - Fuel Tank 		$57.80 2
018 11K0105CP
STUD PLATE - M6X18 - FUEL TANK 		$33.73 2
019 13K0022CP
Bracket - Fuel Tank - Lower
Superseded parts: 11K0112CP; 		$17.32 2
020 00RA055
NUT - M6 - LOCKING - HEX 		- 6 Enquire
021 00RG010
NUT PROTECTOR - M6 -REEVITE 		- 4 Enquire
022 00RA257
BOLT-HEX SOCKET HD24AP-M6X55-8 		- 2 Enquire
023 13K0021CP
BUSH STRAP - FUEL TANK 		$6.74 2
024 11K0139CP
Bracket - Fuel Tank Mounting - Tensioner 		$125.28 2
025 11K0110CP
Turnbuckle - Strap - Fuel Tank 		$33.73 2
026 11K0102CP
Spacer - Turnbuckle 8mm Long - Fuel Tank 		$28.89 2
027 11K0109CP
Nut - Strap - Fuel Tank 		$12.51 2
028 00RA252
Screw - M6x20 - Hex Socket 		- 4 Enquire
029 12K0061CP
Retaining Strap - Fuel Cell - Rear 		$163.83 2
030 00RA065
SCREW - M6X12-8.8 - FLANGE HEX 		- 4 Enquire
031 00RA083
SCREW - M6X20 - FLANGE HEX 		- 4 Enquire
