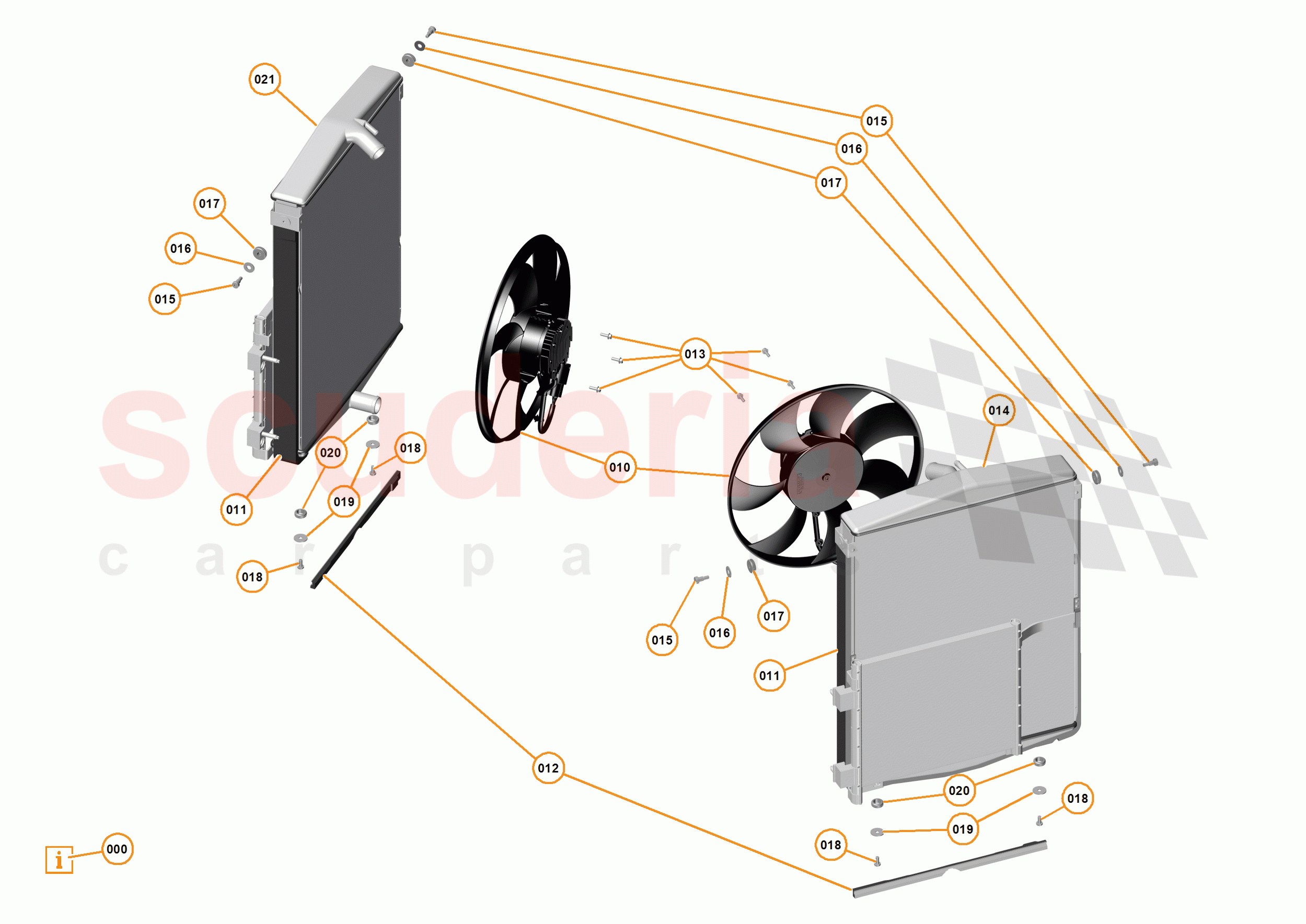

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	12L0137CP	Fan Assy - Engine Coolant Radiator	$328.24	To Order

Photo	Part No	Description	Price (each)	Stock
	12L0231CP	FOAM - SIDES - CONDENSER	$143.87	To Order

Photo	Part No	Description	Price (each)	Stock
	12L0230CP	FOAM - LOWER FRONT - CONDENSER	$77.23	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA063	Screw - M5x16 - Hex	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12L0009CP	RADIATOR - ENGINE COOLANT - LH	$3,591.62	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA188	SHOULDER BOLT - M6X10	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RC048	WASHER - FORM C - 21X1.6 - M8	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RG035	REEVITE - 15.9X3.2X8X82X5.4	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA353	SCREW - 6X14 - THREADFORMING - TORX - FLANGE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RC043	WASHER - M6XOD25	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RG011	GROMMET - DIA 19 - RUBBER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12L0036CP	RADIATOR - ENGINE COOLANT - RH	$3,591.62	To Order

View All

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
000	00RB035	Cable Tie - Female - Dia 8-20	00RB035 Cable Tie - Female - Dia 8-20	-	1	Enquire
000	00RL013	CABLE TIE - 360X4.8MM	00RL013 CABLE TIE - 360X4.8MM	-	4	Enquire
000	00RL001	CABLE TIE - FIRTREE BASE	00RL001 CABLE TIE - FIRTREE BASE	-	4	Enquire
010	12L0137CP	Fan Assy - Engine Coolant Radiator	12L0137CP Fan Assy - Engine Coolant Radiator	$328.24	2
011	12L0231CP	FOAM - SIDES - CONDENSER	12L0231CP FOAM - SIDES - CONDENSER	$143.87	2
012	12L0230CP	FOAM - LOWER FRONT - CONDENSER	12L0230CP FOAM - LOWER FRONT - CONDENSER	$77.23	2
013	00RA063	Screw - M5x16 - Hex	00RA063 Screw - M5x16 - Hex	-	6	Enquire
014	12L0009CP	RADIATOR - ENGINE COOLANT - LH	12L0009CP RADIATOR - ENGINE COOLANT - LH	$3,591.62	1
015	00RA188	SHOULDER BOLT - M6X10	00RA188 SHOULDER BOLT - M6X10	-	4	Enquire
016	00RC048	WASHER - FORM C - 21X1.6 - M8	00RC048 WASHER - FORM C - 21X1.6 - M8	-	4	Enquire
017	00RG035	REEVITE - 15.9X3.2X8X82X5.4	00RG035 REEVITE - 15.9X3.2X8X82X5.4	-	4	Enquire
018	00RA353	SCREW - 6X14 - THREADFORMING - TORX - FLANGE	00RA353 SCREW - 6X14 - THREADFORMING - TORX - FLANGE	-	4	Enquire
019	00RC043	WASHER - M6XOD25	00RC043 WASHER - M6XOD25	-	4	Enquire
020	00RG011	GROMMET - DIA 19 - RUBBER	00RG011 GROMMET - DIA 19 - RUBBER	-	4	Enquire
021	12L0036CP	RADIATOR - ENGINE COOLANT - RH	12L0036CP RADIATOR - ENGINE COOLANT - RH	$3,591.62	1
