23 - BRAKES - SYSTEMS - 23.3 - VACCUM SYSTEM of McLaren McLaren P1 Coupe

View All

McLaren P1 Coupe - 23 - BRAKES - SYSTEMS - 23.3 - VACCUM SYSTEM

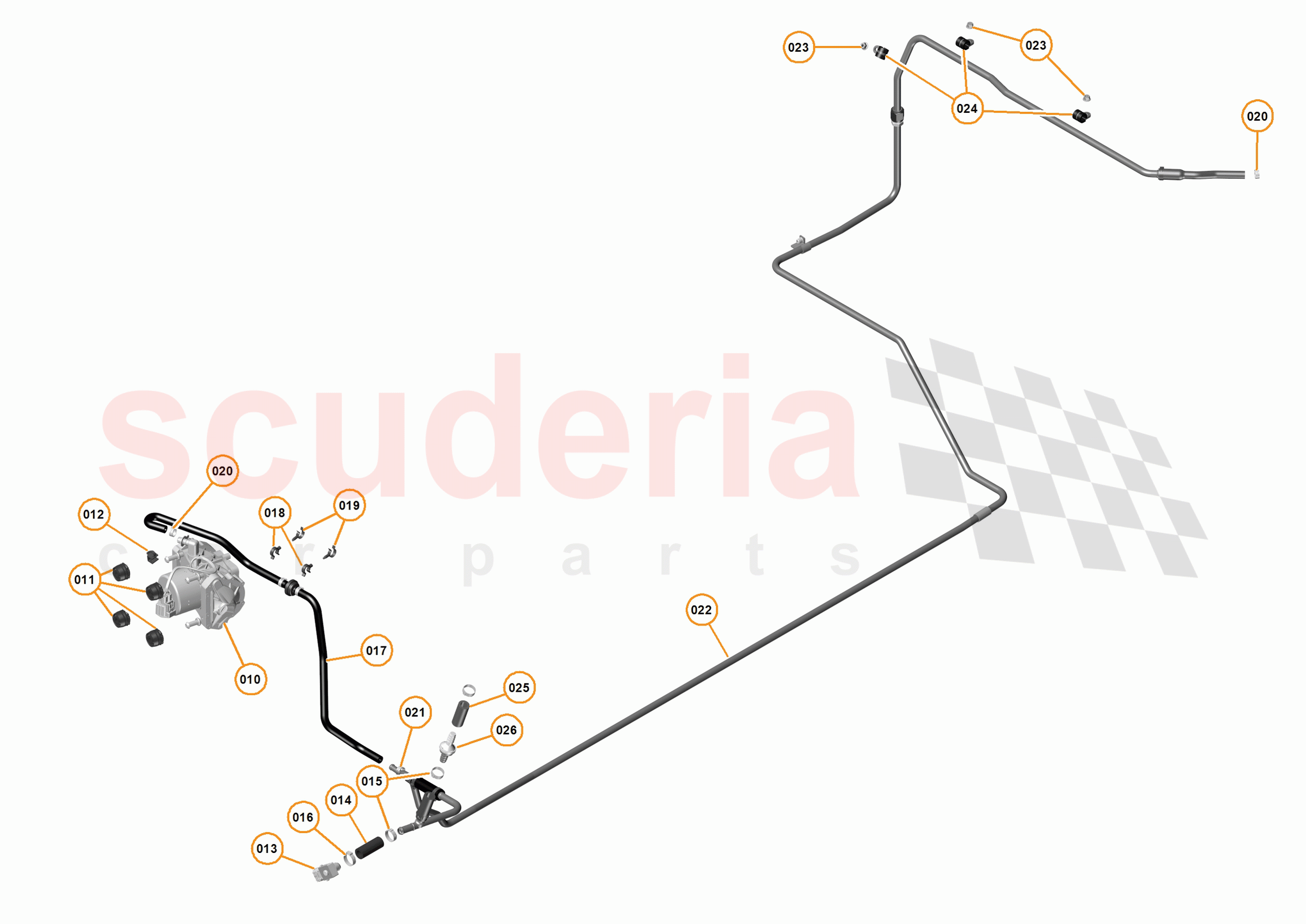

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	12C0071CP	EVAC Pump	$463.32	To Order

Photo	Part No	Description	Price (each)	Stock
	12C0278CP	Mount - Rubber - Anti-Vibration	$57.89	To Order

Photo	Part No	Description	Price (each)	Stock
	00RG025	CABLE TIE - PARALLEL - EDGE PANEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12C0072CP	Sensor - Vacuum - Electric Vacuum Pump	$287.70	To Order

Photo	Part No	Description	Price (each)	Stock
	12C0189CP	Hose - Sensor - Electric Vacuum Pump	$328.17	To Order

Photo	Part No	Description	Price (each)	Stock
	00RB094	OETIKER CLIP - 21.0	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RB113	Hose Clamp - 22.6-706R	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12C0070CP	Hose - Vacuum	$308.87	To Order

Photo	Part No	Description	Price (each)	Stock
	00RB032	CLIP - 13-14MM - FEMALE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RB034	CLIP - 14-15MM - MALE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RB069	Stepless Ear Clamp - 12.3-14.8	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RB087	Clamp - Stepless - 17.5mm	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12C0215CP	Vacuum Pipe - Assy - Manifold to Brake Booster	$4,227.92	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA055	NUT - M6 - LOCKING - HEX	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RB003	P Clip - DIA 14	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12C0324CP	Hose - Connector to Vacuum Hose	$28.93	To Order

Photo	Part No	Description	Price (each)	Stock
	12C0325CP	Valve - One Way - 180 Deg.	$33.78	To Order

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
010	12C0071CP	EVAC Pump	12C0071CP EVAC Pump EVAC Pump;	$463.32	1
011	12C0278CP	Mount - Rubber - Anti-Vibration	12C0278CP Mount - Rubber - Anti-Vibration	$57.89	4
012	00RG025	CABLE TIE - PARALLEL - EDGE PANEL	00RG025 CABLE TIE - PARALLEL - EDGE PANEL	-	1	Enquire
013	12C0072CP	Sensor - Vacuum - Electric Vacuum Pump	12C0072CP Sensor - Vacuum - Electric Vacuum Pump	$287.70	1
014	12C0189CP	Hose - Sensor - Electric Vacuum Pump	12C0189CP Hose - Sensor - Electric Vacuum Pump	$328.17	1
015	00RB094	OETIKER CLIP - 21.0	00RB094 OETIKER CLIP - 21.0	-	5	Enquire
016	00RB113	Hose Clamp - 22.6-706R	00RB113 Hose Clamp - 22.6-706R	-	1	Enquire
017	12C0070CP	Hose - Vacuum	12C0070CP Hose - Vacuum	$308.87	1
018	00RB032	CLIP - 13-14MM - FEMALE	00RB032 CLIP - 13-14MM - FEMALE	-	2	Enquire
019	00RB034	CLIP - 14-15MM - MALE	00RB034 CLIP - 14-15MM - MALE	-	2	Enquire
020	00RB069	Stepless Ear Clamp - 12.3-14.8	00RB069 Stepless Ear Clamp - 12.3-14.8	-	2	Enquire
021	00RB087	Clamp - Stepless - 17.5mm	00RB087 Clamp - Stepless - 17.5mm	-	1	Enquire
022	12C0215CP	Vacuum Pipe - Assy - Manifold to Brake Booster	12C0215CP Vacuum Pipe - Assy - Manifold to Brake Booster	$4,227.92	1
023	00RA055	NUT - M6 - LOCKING - HEX	00RA055 NUT - M6 - LOCKING - HEX	-	3	Enquire
024	00RB003	P Clip - DIA 14	00RB003 P Clip - DIA 14	-	3	Enquire
025	12C0324CP	Hose - Connector to Vacuum Hose	12C0324CP Hose - Connector to Vacuum Hose	$28.93	1
026	12C0325CP	Valve - One Way - 180 Deg.	12C0325CP Valve - One Way - 180 Deg.	$33.78	1
