McLaren P1 Coupe - 32 - ENGINE - 32.12 - SECONDARY AIR SYSTEM

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
11F0729CP Harness - Engine Secondary Air $479.13 To Order
Photo Part No Description Price (each) Stock
12F0750CP PUMP - SECONDARY AIR $366.48 To Order
Photo Part No Description Price (each) Stock
00RA134 Nut - M6 - Hex Enquire To Order
Photo Part No Description Price (each) Stock
12F0312CP Hose - Secondary Air $115.72 To Order
Photo Part No Description Price (each) Stock
00RB090 Oetiker Clip - 28.6 Enquire To Order
Photo Part No Description Price (each) Stock
00RG020 Swivel Clip - 20-24.5mm - Female Enquire To Order
Photo Part No Description Price (each) Stock
00RG028 CLIP - SWIVEL TYPE - MALE+FEMALE - 23.5-25 Enquire To Order
Photo Part No Description Price (each) Stock
00RL001 CABLE TIE - FIRTREE BASE Enquire To Order
Photo Part No Description Price (each) Stock
12F0313CP Bracket - Secondary Air Pump - Engine $183.24 To Order
Photo Part No Description Price (each) Stock
00RA313 SCREW - M6X16 - HEX - SILVER Enquire To Order
Photo Part No Description Price (each) Stock
11F0821CP Sensor - Engine Secondary Air - Pressure inc. Bolt $134.14 To Order
Photo Part No Description Price (each) Stock
11F0971CP SAI PIPE ASSY-NO SENSOR-ENGINE $154.31 To Order
Photo Part No Description Price (each) Stock
11F0257CP Secondary Air Valve - Engine $159.03 To Order
Photo Part No Description Price (each) Stock
11F0979CP Pipe - Secondary Air Injection Valve - Cylinder Head - Engine - LH $144.67 To Order
Photo Part No Description Price (each) Stock
11F1970CP GASKET - SECONDARY AIR - INJECTION PIPE TO ENGINE $14.45 To Order
Photo Part No Description Price (each) Stock
11F0822CP Bolt - M6x16 - Engine Enquire To Order
View All

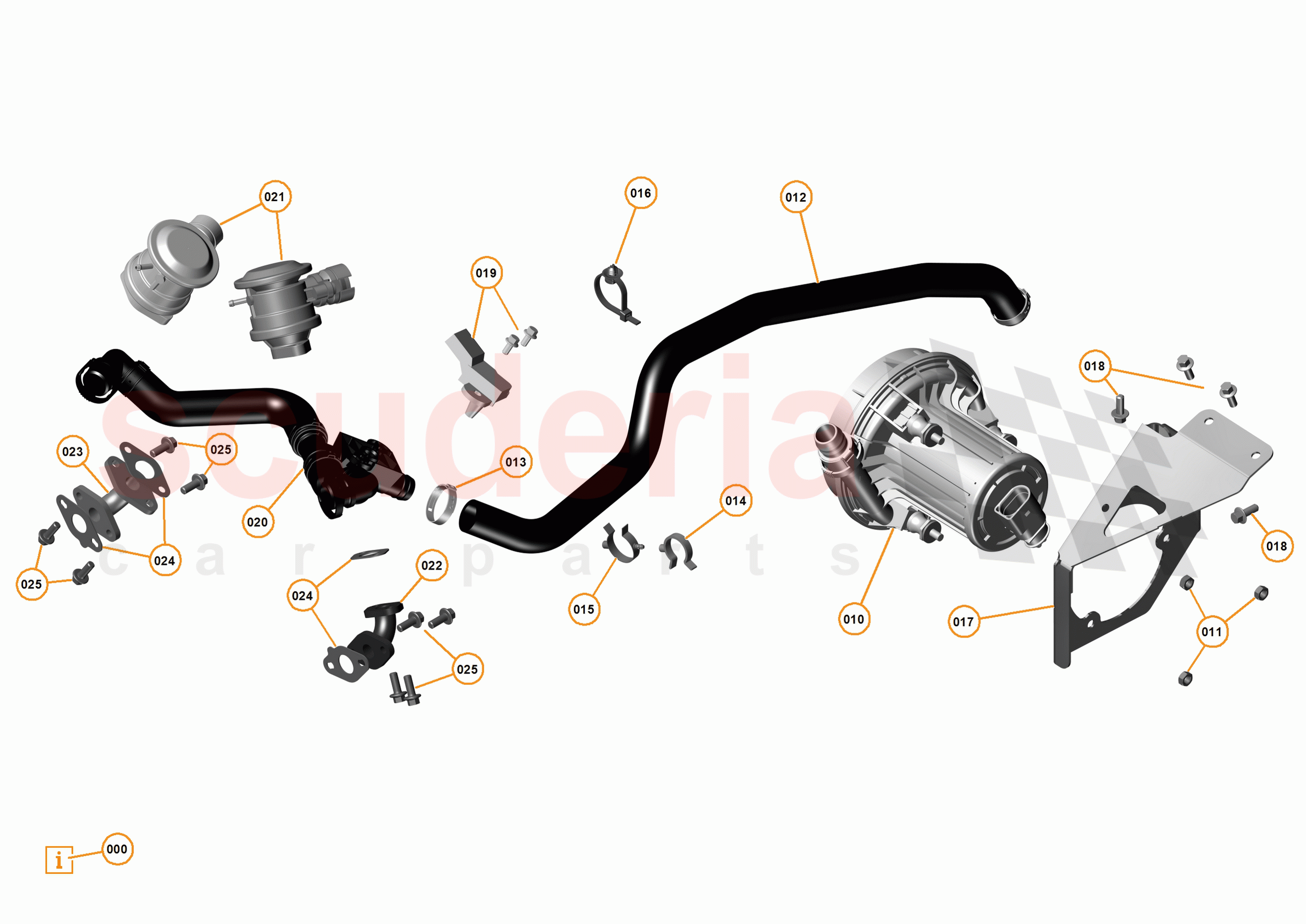

32 - ENGINE - 32.12 - SECONDARY AIR SYSTEM of McLaren McLaren P1 Coupe Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
000 11F0729CP
Harness - Engine Secondary Air 		$479.13 1
010 12F0750CP
PUMP - SECONDARY AIR 		$366.48 1
011 00RA134
Nut - M6 - Hex 		- 3 Enquire
012 12F0312CP
Hose - Secondary Air 		$115.72 1
013 00RB090
Oetiker Clip - 28.6 		- 1 Enquire
014 00RG020
Swivel Clip - 20-24.5mm - Female 		- 1 Enquire
015 00RG028
CLIP - SWIVEL TYPE - MALE+FEMALE - 23.5-25 		- 1 Enquire
016 00RL001
CABLE TIE - FIRTREE BASE 		- 1 Enquire
017 12F0313CP
Bracket - Secondary Air Pump - Engine 		$183.24 1
018 00RA313
SCREW - M6X16 - HEX - SILVER 		- 4 Enquire
019 11F0821CP
Sensor - Engine Secondary Air - Pressure inc. Bolt 		$134.14 1
020 11F0971CP
SAI PIPE ASSY-NO SENSOR-ENGINE 		$154.31 1
021 11F0257CP
Secondary Air Valve - Engine 		$159.03 2
022 11F0979CP
Pipe - Secondary Air Injection Valve - Cylinder Head - Engine - LH 		$144.67 1
023 11F0980CP
Pipe - Secondary Air Injection Valve - Cylinder Head - Engine - RH 		$144.67 1
024 11F1970CP
GASKET - SECONDARY AIR - INJECTION PIPE TO ENGINE 		$14.45 4
025 11F0822CP
Bolt - M6x16 - Engine 		- 8 Enquire
