Find Your Part

View All

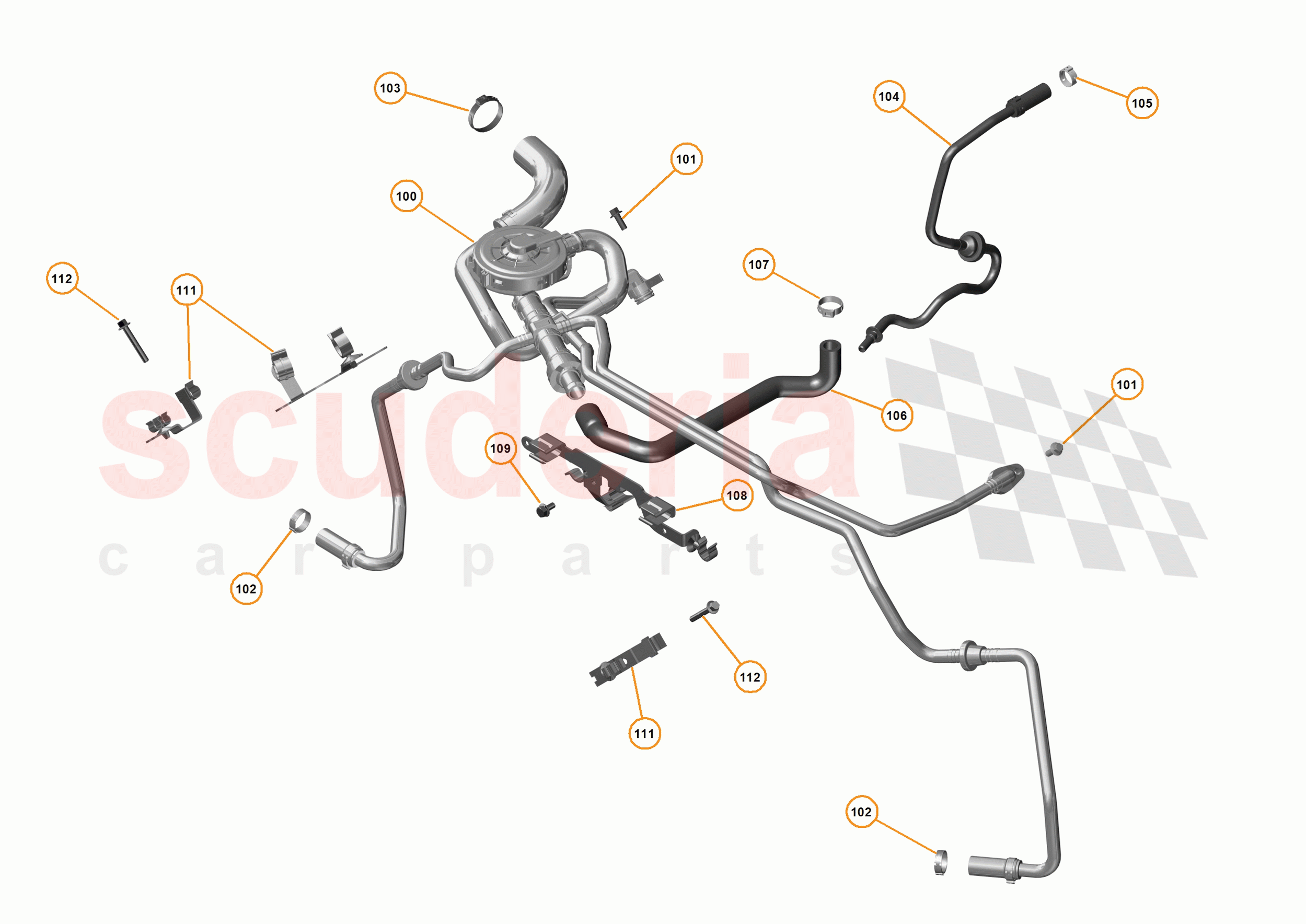

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	12F0501CP	BREATHER ASSY - ENGINE	$1,296.35	To Order

Photo	Part No	Description	Price (each)	Stock
	11F0822CP	Bolt - M6x16 - Engine	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RB094	OETIKER CLIP - 21.0	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RB139	STEPLESS EAR CLAMP - 34.6-706DR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12F0721CP	Fuel Purge Assembly - Inlet Manifold - Engine	$231.54	To Order

Photo	Part No	Description	Price (each)	Stock
	11F1007CP	Oetiker Clip - Engine - 19.8	$7.71	To Order

Photo	Part No	Description	Price (each)	Stock
	11F2008CP	HOSE - BREATHER SYSTEM - INLET MANIFOLD - ENGINE	$308.74	To Order

Photo	Part No	Description	Price (each)	Stock
	11F1859CP	OETIKER CLAMP - 24.1MM	$12.52	To Order

Photo	Part No	Description	Price (each)	Stock
	12F0722CP	Bracket - Front Intake Check Valve	$106.12	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA065	SCREW - M6X12-8.8 - FLANGE HEX	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11F0991CP	Bracket - Support - Cam Cover - Engine	$192.95	To Order

Photo	Part No	Description	Price (each)	Stock
	11F1777CP	BOLT - M6X40 - HEX	$4.41	To Order

View All

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
100	12F0501CP	BREATHER ASSY - ENGINE	12F0501CP BREATHER ASSY - ENGINE	$1,296.35	1
101	11F0822CP	Bolt - M6x16 - Engine	11F0822CP Bolt - M6x16 - Engine	-	2	Enquire
102	00RB094	OETIKER CLIP - 21.0	00RB094 OETIKER CLIP - 21.0	-	2	Enquire
103	00RB139	STEPLESS EAR CLAMP - 34.6-706DR	00RB139 STEPLESS EAR CLAMP - 34.6-706DR	-	1	Enquire
104	12F0721CP	Fuel Purge Assembly - Inlet Manifold - Engine	12F0721CP Fuel Purge Assembly - Inlet Manifold - Engine	$231.54	1
105	11F1007CP	Oetiker Clip - Engine - 19.8	11F1007CP Oetiker Clip - Engine - 19.8	$7.71	1
106	11F2008CP	HOSE - BREATHER SYSTEM - INLET MANIFOLD - ENGINE	11F2008CP HOSE - BREATHER SYSTEM - INLET MANIFOLD - ENGINE	$308.74	1
107	11F1859CP	OETIKER CLAMP - 24.1MM	11F1859CP OETIKER CLAMP - 24.1MM	$12.52	1
108	12F0722CP	Bracket - Front Intake Check Valve	12F0722CP Bracket - Front Intake Check Valve	$106.12	1
109	00RA065	SCREW - M6X12-8.8 - FLANGE HEX	00RA065 SCREW - M6X12-8.8 - FLANGE HEX	-	1	Enquire
111	11F0991CP	Bracket - Support - Cam Cover - Engine	11F0991CP Bracket - Support - Cam Cover - Engine	$192.95	1
112	11F1777CP	BOLT - M6X40 - HEX	11F1777CP BOLT - M6X40 - HEX	$4.41	2
