42 - HYBRID DRIVE ASSEMBLY - 42.1 - HYBRID DRIVE CLUTCH of McLaren McLaren P1 Coupe

View All

McLaren P1 Coupe - 42 - HYBRID DRIVE ASSEMBLY - 42.1 - HYBRID DRIVE CLUTCH

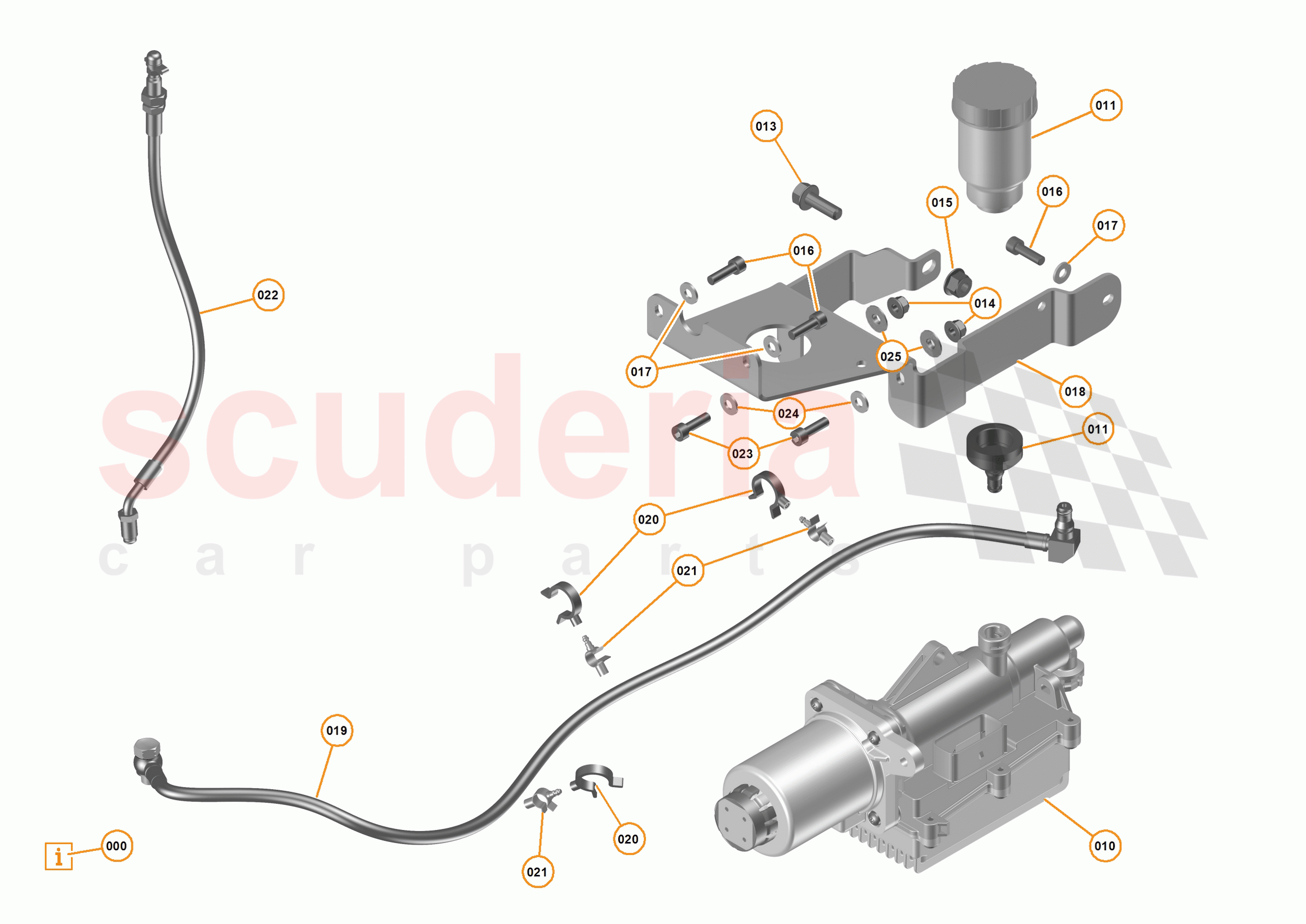

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	12G0122CP	Actuator - Clutch - Electro Hydraulic	$4,456.46	To Order

Photo	Part No	Description	Price (each)	Stock
	12G0427CP	O-Ring - Clutch Actuator Reservoir - Adaptor	$10.59	To Order
	12G0429CP	Reservoir Assembly - Clutch Actuator	$481.93	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA028	BOLT - M8X25 - 10.9 - HEX	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA055	NUT - M6 - LOCKING - HEX	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA056	NUT - M8-8 - LOCK HEX	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA252	Screw - M6x20 - Hex Socket	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RC028	WASHER - M6 FORM C	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12G0442CP	Bracket - Mounting - Clutch Actuator	$366.25	To Order

Photo	Part No	Description	Price (each)	Stock
	12G0259CP	Pipe Assembly - Clutch Actuator - Feed	$1,233.78	To Order

Photo	Part No	Description	Price (each)	Stock
	00RB007	CLIP - 18-20MM - FEMALE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RB047	Swivel Clip - 9-9.5 - Male-Female	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12G0262CP	Pipe Assy - CSC Bleed	$1,314.08	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA152	SCREW CAP - M6X25 - HEX SOCKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12G0437CP	Washer - M6 - Plain - FTE Isolator	$162.78	To Order

Photo	Part No	Description	Price (each)	Stock
	12G0438CP	Washer - M6 - Top-Hat - FTE Isolator	$162.78	To Order

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
010	12G0122CP	Actuator - Clutch - Electro Hydraulic	12G0122CP Actuator - Clutch - Electro Hydraulic	$4,456.46	1
011	12G0427CP	O-Ring - Clutch Actuator Reservoir - Adaptor	12G0427CP O-Ring - Clutch Actuator Reservoir - Adaptor	$10.59	1
011	12G0429CP	Reservoir Assembly - Clutch Actuator	12G0429CP Reservoir Assembly - Clutch Actuator	$481.93	1
013	00RA028	BOLT - M8X25 - 10.9 - HEX	00RA028 BOLT - M8X25 - 10.9 - HEX	-	1	Enquire
014	00RA055	NUT - M6 - LOCKING - HEX	00RA055 NUT - M6 - LOCKING - HEX	-	2	Enquire
015	00RA056	NUT - M8-8 - LOCK HEX	00RA056 NUT - M8-8 - LOCK HEX	-	1	Enquire
016	00RA252	Screw - M6x20 - Hex Socket	00RA252 Screw - M6x20 - Hex Socket	-	3	Enquire
017	00RC028	WASHER - M6 FORM C	00RC028 WASHER - M6 FORM C	-	3	Enquire
018	12G0442CP	Bracket - Mounting - Clutch Actuator	12G0442CP Bracket - Mounting - Clutch Actuator	$366.25	1
019	12G0259CP	Pipe Assembly - Clutch Actuator - Feed	12G0259CP Pipe Assembly - Clutch Actuator - Feed	$1,233.78	1
020	00RB007	CLIP - 18-20MM - FEMALE	00RB007 CLIP - 18-20MM - FEMALE	-	3	Enquire
021	00RB047	Swivel Clip - 9-9.5 - Male-Female	00RB047 Swivel Clip - 9-9.5 - Male-Female	-	3	Enquire
022	12G0262CP	Pipe Assy - CSC Bleed	12G0262CP Pipe Assy - CSC Bleed	$1,314.08	1
023	00RA152	SCREW CAP - M6X25 - HEX SOCKET	00RA152 SCREW CAP - M6X25 - HEX SOCKET	-	2	Enquire
024	12G0437CP	Washer - M6 - Plain - FTE Isolator	12G0437CP Washer - M6 - Plain - FTE Isolator	$162.78	2
025	12G0438CP	Washer - M6 - Top-Hat - FTE Isolator	12G0438CP Washer - M6 - Top-Hat - FTE Isolator	$162.78	2
