McLaren P1 Coupe - 34 - ENGINE OIL SYSTEM - 34.2 - ENGINE OIL FEED & RETURN HOSES

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
13F0825CP GASKET - PIPE - TURBO OIL DRAIN $7.29 To Order
Photo Part No Description Price (each) Stock
12F0702CP HOSE ASSEMBLY - OIL DRAIN $168.54 To Order
Photo Part No Description Price (each) Stock
00RB019 CLIP - 90DEG - FEMALE - 10-12MM Enquire To Order
Photo Part No Description Price (each) Stock
12F0708CP OETIKER CLIP - 14.6 $8.65 To Order
Photo Part No Description Price (each) Stock
12F0709CP BRACKET - OIL DRAIN HOSE $40.64 To Order
Photo Part No Description Price (each) Stock
11F0822CP Bolt - M6x16 - Engine Enquire To Order
Photo Part No Description Price (each) Stock
12F0710CP CLIP - ONE WAY - RAYMOND $24.08 To Order
Photo Part No Description Price (each) Stock
12F0483CP HOSE ASSY - OIL FEED - TURBO - LH $650.04 To Order
Photo Part No Description Price (each) Stock
12F0671CP BANJO BOLT - M12X1.5 $48.18 To Order
Photo Part No Description Price (each) Stock
12F0672CP BANJO BOLT - M12X1.25 $43.35 To Order
Photo Part No Description Price (each) Stock
12F0674CP HOSE - OIL DRAIN - TURBO - LH $1,542.18 To Order
Photo Part No Description Price (each) Stock
11F2806CP O-RING 16X2 $7.29 IN STOCK
Photo Part No Description Price (each) Stock
12F0676CP HOSE - OIL FEED - TURBO - RH $1,640.19 To Order
Photo Part No Description Price (each) Stock
12F0679CP HOSE - OIL DRAIN - TURBO - RH $1,542.18 To Order
Photo Part No Description Price (each) Stock
12F0193CP Pipe - Return - Engine Oil To Tank $1,002.41 To Order
Photo Part No Description Price (each) Stock
00RA061 Screw - M6x16 - Flange Hex Enquire To Order
Photo Part No Description Price (each) Stock
12F0194CP Pipe - Feed - Engine Oil To Tank $1,503.63 To Order
View All

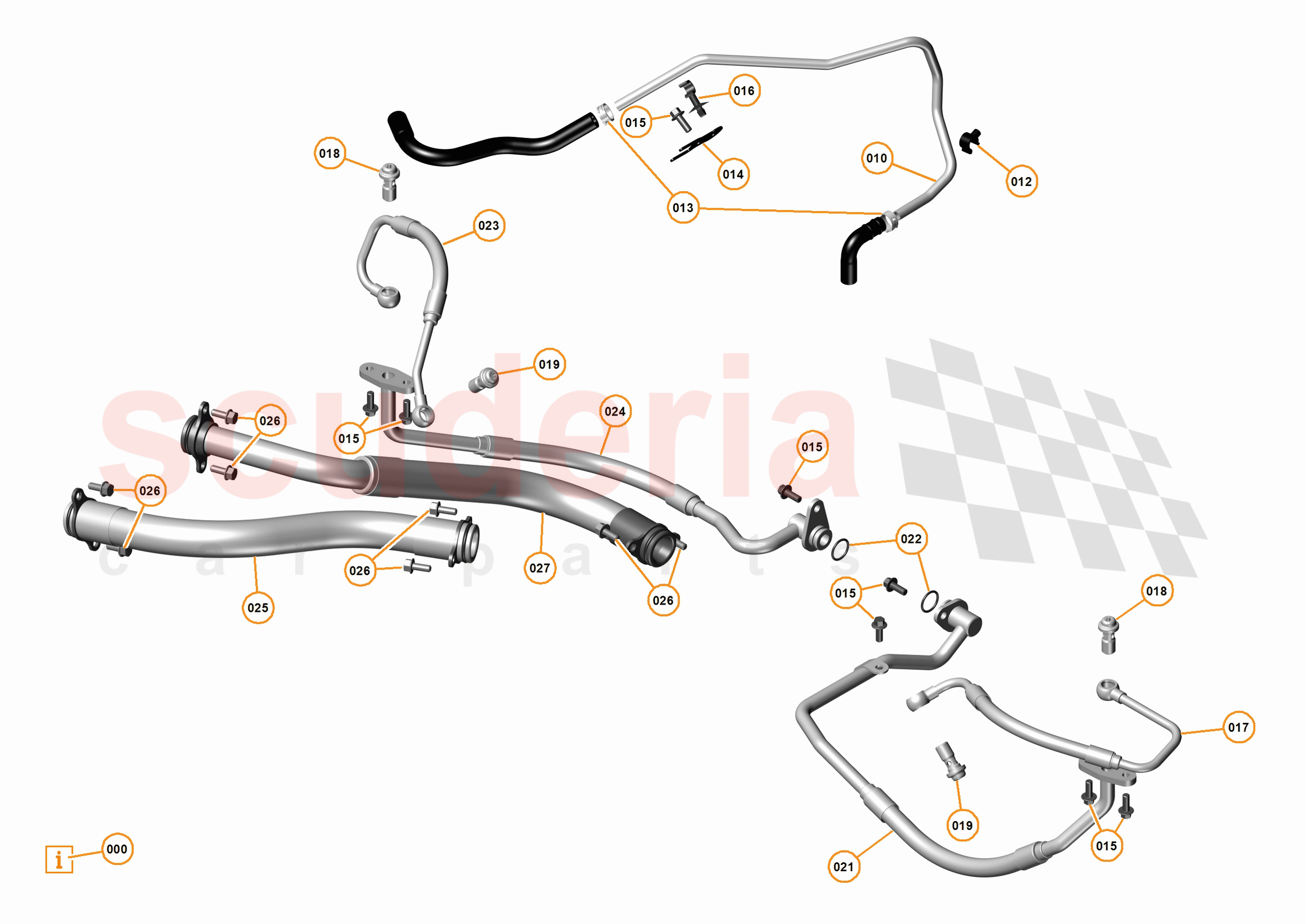

34 - ENGINE OIL SYSTEM - 34.2 - ENGINE OIL FEED & RETURN HOSES of McLaren McLaren P1 Coupe Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
000 13F0825CP
GASKET - PIPE - TURBO OIL DRAIN 		$7.29 2
010 12F0702CP
HOSE ASSEMBLY - OIL DRAIN 		$168.54 1
012 00RB019
CLIP - 90DEG - FEMALE - 10-12MM 		- 1 Enquire
013 12F0708CP
OETIKER CLIP - 14.6 		$8.65 2
014 12F0709CP
BRACKET - OIL DRAIN HOSE 		$40.64 1
015 11F0822CP
Bolt - M6x16 - Engine 		- 8 Enquire
016 12F0710CP
CLIP - ONE WAY - RAYMOND 		$24.08 1
017 12F0483CP
HOSE ASSY - OIL FEED - TURBO - LH 		$650.04 1
018 12F0671CP
BANJO BOLT - M12X1.5 		$48.18 2
019 12F0672CP
BANJO BOLT - M12X1.25 		$43.35 2
021 12F0674CP
HOSE - OIL DRAIN - TURBO - LH 		$1,542.18 1
022 11F2806CP
O-RING 16X2
IN STOCK 		$7.29 2
023 12F0676CP
HOSE - OIL FEED - TURBO - RH 		$1,640.19 1
024 12F0679CP
HOSE - OIL DRAIN - TURBO - RH 		$1,542.18 1
025 12F0193CP
Pipe - Return - Engine Oil To Tank 		$1,002.41 1
026 00RA061
Screw - M6x16 - Flange Hex 		- 8 Enquire
027 12F0194CP
Pipe - Feed - Engine Oil To Tank 		$1,503.63 1
