33 - Engine Air Systems - 33.2 - Charge Air Cooling System

McLaren P1 Coupe

Find Your Part

McLaren P1 Coupe - 33 - ENGINE AIR SYSTEMS - 33.2 - CHARGE AIR COOLING SYSTEM

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
12F0360CP Water Charge Air Cooler - LH $3,644.68 To Order
Photo Part No Description Price (each) Stock
00RA066 Bolt - M6x35 - Hex Enquire To Order
Photo Part No Description Price (each) Stock
00RC043 WASHER - M6XOD25 Enquire To Order
Photo Part No Description Price (each) Stock
11F0289CP AV MOUNT-WCAC 24 $24.13 To Order
Photo Part No Description Price (each) Stock
11F0290CP SPACER-WCAC 24 Enquire To Order
Photo Part No Description Price (each) Stock
12F0361CP Water Charge Air Cooler - RH $3,587.44 To Order
Photo Part No Description Price (each) Stock
12F0819CP Bracket - Water Charge Air Cooler - Front - LH $985.08 To Order
Photo Part No Description Price (each) Stock
00RA083 SCREW - M6X20 - FLANGE HEX Enquire To Order
Photo Part No Description Price (each) Stock
00RC013 WASHER - M6X18X1.6 Enquire To Order
Photo Part No Description Price (each) Stock
12F0425CP Bracket - Water Charge Air Cooler - Front - RH $985.08 To Order
Photo Part No Description Price (each) Stock
12F0426CP Bracket - Water Charge Air Cooler - Rear - LH $985.08 To Order
Photo Part No Description Price (each) Stock
12F0427CP Bracket - Water Charge Air Cooler - Rear - RH $985.08 To Order
Photo Part No Description Price (each) Stock
00RA294 Screw - M6x16 - Taptite Hex Enquire To Order
Photo Part No Description Price (each) Stock
12G0053CP Hose - Water Charge Air Cooler to - Throttle Body - LH $482.88 To Order
Photo Part No Description Price (each) Stock
00RB030 HOSE CLAMP - 60-80 - NORMA TORRO Enquire To Order
Photo Part No Description Price (each) Stock
12G0054CP Hose - Water Charge Air Cooler to - Throttle Body - RH $482.88 To Order
Photo Part No Description Price (each) Stock
12F0509CP Hose - Turbocharger to - Water Charge Air Cooler - LH $424.92 To Order
Photo Part No Description Price (each) Stock
00RB049 HOSE CLAMP - 40-60MM Enquire To Order
Photo Part No Description Price (each) Stock
12F0511CP Hose - Turbocharger to - Water Charge Air Cooler - RH $424.92 To Order
View All

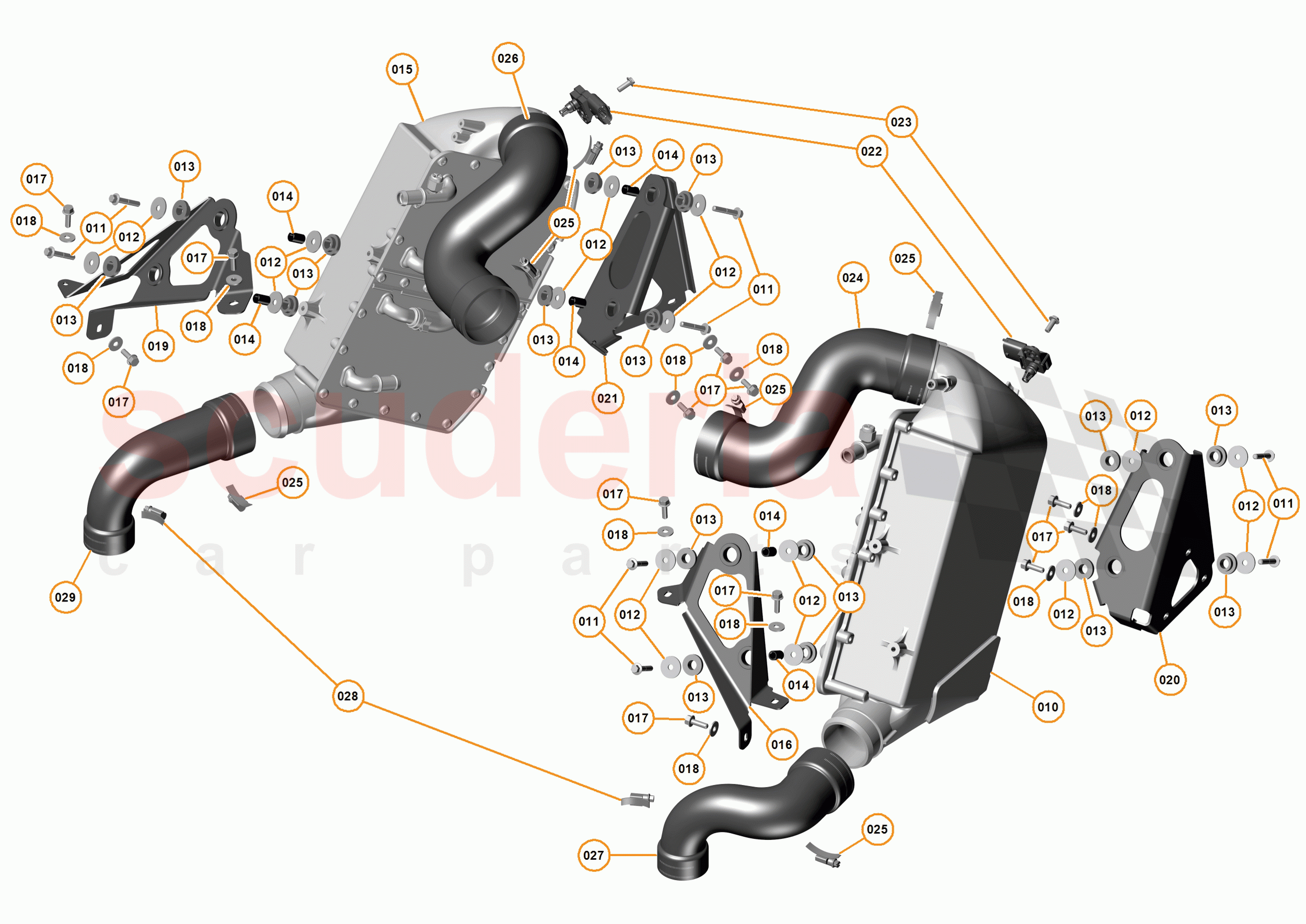

33 - ENGINE AIR SYSTEMS - 33.2 - CHARGE AIR COOLING SYSTEM of McLaren McLaren P1 Coupe Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 12F0360CP
Water Charge Air Cooler - LH 		$3,644.68 1
011 00RA066
Bolt - M6x35 - Hex 		- 8 Enquire
012 00RC043
WASHER - M6XOD25 		- 16 Enquire
013 11F0289CP
AV MOUNT-WCAC 24 		$24.13 16
014 11F0290CP
SPACER-WCAC 24 		- 8 Enquire
015 12F0361CP
Water Charge Air Cooler - RH 		$3,587.44 1
016 12F0819CP
Bracket - Water Charge Air Cooler - Front - LH 		$985.08 1
017 00RA083
SCREW - M6X20 - FLANGE HEX 		- 12 Enquire
018 00RC013
WASHER - M6X18X1.6 		- 12 Enquire
019 12F0425CP
Bracket - Water Charge Air Cooler - Front - RH 		$985.08 1
020 12F0426CP
Bracket - Water Charge Air Cooler - Rear - LH 		$985.08 1
021 12F0427CP
Bracket - Water Charge Air Cooler - Rear - RH 		$985.08 1
022 11M0852CP
Sensor - Temperature - Manifold Absolute Pressure 		$212.47 2
023 00RA294
Screw - M6x16 - Taptite Hex 		- 2 Enquire
024 12G0053CP
Hose - Water Charge Air Cooler to - Throttle Body - LH 		$482.88 1
025 00RB030
HOSE CLAMP - 60-80 - NORMA TORRO 		- 6 Enquire
026 12G0054CP
Hose - Water Charge Air Cooler to - Throttle Body - RH 		$482.88 1
027 12F0509CP
Hose - Turbocharger to - Water Charge Air Cooler - LH 		$424.92 1
028 00RB049
HOSE CLAMP - 40-60MM 		- 2 Enquire
029 12F0511CP
Hose - Turbocharger to - Water Charge Air Cooler - RH 		$424.92 1
