Find Your Part

View All

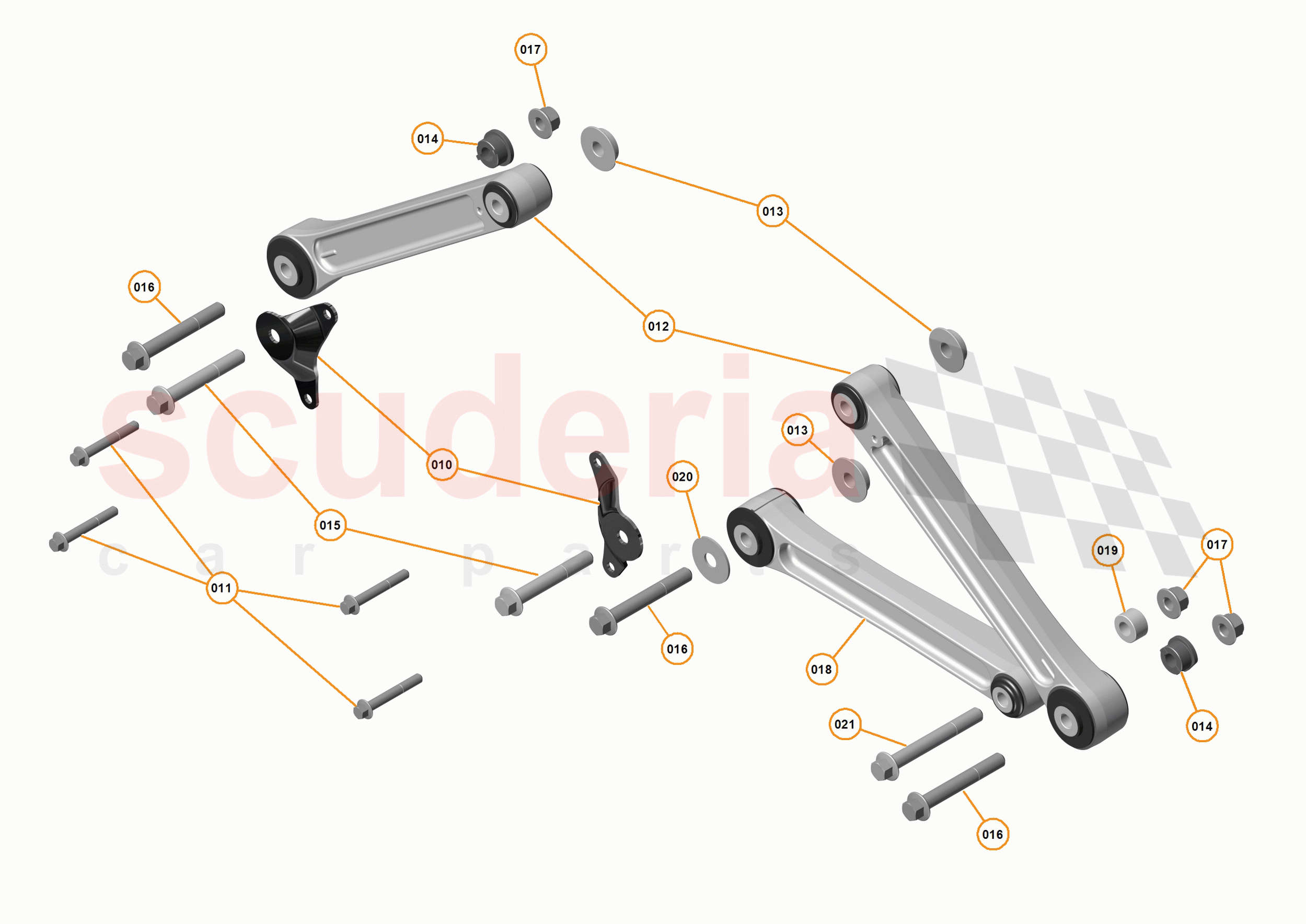

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	12F0248CP	BRACKET - SUPPORT - ENGINE LINK	$213.57	To Order

Photo	Part No	Description	Price (each)	Stock
	00RX049	BOLT - M8X60 - HEX	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12F0198CP	Link Assy - Engine Mount	$748.03	To Order

Photo	Part No	Description	Price (each)	Stock
	11F0619CP	ENGINE LINK MOUNT-SUPPORT	$43.66	To Order

Photo	Part No	Description	Price (each)	Stock
	11F2681CP	SPACER BUSH LOCATOR	$116.47	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA382	Bolt - Hex Head - Flange - M12x85 - 10.9	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RX048	BOLT - M12X90 - HEX	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA005	NUT - M12 - LOCK HEX	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12F0202CP	LINK ASSY - LATERAL - ENGINE MOUNT	$748.03	To Order

Photo	Part No	Description	Price (each)	Stock
	11F2680CP	SPACER BUSH-ENGINE	$106.77	To Order

Photo	Part No	Description	Price (each)	Stock
	00RC061	WASHER - M12X40X2	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RX047	BOLT - M12X100 - HEX	Enquire	To Order

View All

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
010	12F0248CP	BRACKET - SUPPORT - ENGINE LINK	12F0248CP BRACKET - SUPPORT - ENGINE LINK	$213.57	1
011	00RX049	BOLT - M8X60 - HEX	00RX049 BOLT - M8X60 - HEX	-	4	Enquire
012	12F0198CP	Link Assy - Engine Mount	12F0198CP Link Assy - Engine Mount	$748.03	2
013	11F0619CP	ENGINE LINK MOUNT-SUPPORT	11F0619CP ENGINE LINK MOUNT-SUPPORT	$43.66	3
014	11F2681CP	SPACER BUSH LOCATOR	11F2681CP SPACER BUSH LOCATOR	$116.47	2
015	00RA382	Bolt - Hex Head - Flange - M12x85 - 10.9	00RA382 Bolt - Hex Head - Flange - M12x85 - 10.9	-	2	Enquire
016	00RX048	BOLT - M12X90 - HEX	00RX048 BOLT - M12X90 - HEX	-	3	Enquire
017	00RA005	NUT - M12 - LOCK HEX	00RA005 NUT - M12 - LOCK HEX	-	3	Enquire
018	12F0202CP	LINK ASSY - LATERAL - ENGINE MOUNT	12F0202CP LINK ASSY - LATERAL - ENGINE MOUNT	$748.03	1
019	11F2680CP	SPACER BUSH-ENGINE	11F2680CP SPACER BUSH-ENGINE	$106.77	1
020	00RC061	WASHER - M12X40X2	00RC061 WASHER - M12X40X2	-	1	Enquire
021	00RX047	BOLT - M12X100 - HEX	00RX047 BOLT - M12X100 - HEX	-	1	Enquire
