35 - Engine Cooling System - 35.1 - Engine Water Pump And Circuit

McLaren P1 Coupe

Find Your Part

McLaren P1 Coupe - 35 - ENGINE COOLING SYSTEM - 35.1 - ENGINE WATER PUMP AND CIRCUIT

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
11F2059RP Water Pump - Engine - No AC Enquire To Order
Photo Part No Description Price (each) Stock
11F0686CP ENGINE WATER PUMP GASKET $33.71 To Order
Photo Part No Description Price (each) Stock
11F1793CP BOLT - M6X20 - HEX $10.58 To Order
Photo Part No Description Price (each) Stock
11F1784CP BOLT - M6X80 - HEX $19.24 To Order
Photo Part No Description Price (each) Stock
11F2434CP GASKET SERVICE COVER WATER PUMP $15.38 IN STOCK
Photo Part No Description Price (each) Stock
11F0802CP Heater Return Stub - Engine - Water Pump $125.20 To Order
Photo Part No Description Price (each) Stock
11F0822CP Bolt - M6x16 - Engine Enquire To Order
Photo Part No Description Price (each) Stock
13FA050CP THERMOSTAT AND HOUSING-ENGINE $250.44 To Order
Photo Part No Description Price (each) Stock
11F0809CP Bolt - M8x30 - Engine - Thermostat $12.46 To Order
Photo Part No Description Price (each) Stock
11F1132CP O-ring - Radiator Hose - Inboard - Engine $33.71 To Order
Photo Part No Description Price (each) Stock
11F2418CP SENSOR - HEAD TEMPERATURE $90.91 To Order
Photo Part No Description Price (each) Stock
11F0704CP ENGINE COOLANT TOP24OSE SUPPOR $28.87 To Order
Photo Part No Description Price (each) Stock
12F0692CP Head Degas - Engine - Assembly $1,290.80 To Order
Photo Part No Description Price (each) Stock
12F0712CP Clip - Raymond - 053860 $3.49 To Order
Photo Part No Description Price (each) Stock
12F0713CP Clip - Raymond - 053986 $3.62 To Order
Photo Part No Description Price (each) Stock
00RB093 OETIKER CLIP - 16.6 Enquire To Order
Photo Part No Description Price (each) Stock
00RB143 CLAMP - 25.6-706R Enquire To Order
Photo Part No Description Price (each) Stock
12F0632CP Heater Feed Pipe - Engine $332.77 To Order
Photo Part No Description Price (each) Stock
12F0680CP STUB PIPE ASSEMBLY - TURBO WATER FEED - LH $696.26 To Order
Photo Part No Description Price (each) Stock
12F0487CP PIPE - HOSE - TURBOCHARGER COOLANT FEED - ASSY - LH $1,985.06 To Order
Photo Part No Description Price (each) Stock
12F0684CP Banjo Bolt - M14x1.5 $43.33 To Order
Photo Part No Description Price (each) Stock
12F0685CP Washer - Sealing - M14 $9.63 To Order
Photo Part No Description Price (each) Stock
12F0488CP PIPE - HOSE - TURBOCHARGER COOLANT RETURN - ASSY - LH $1,329.32 To Order
Photo Part No Description Price (each) Stock
12F0489CP PIPE - HOSE - TURBOCHARGER COOLANT FEED - ASSY - RH $1,299.30 To Order
Photo Part No Description Price (each) Stock
12F0490CP PIPE - HOSE - TURBOCHARGER COOLANT RETURN - ASSY - RH $1,329.32 To Order
Photo Part No Description Price (each) Stock
11F1021CP RADIATOR - INBOARD LH $250.44 To Order
Photo Part No Description Price (each) Stock
11FA039CP RADIATOR - INBOARD RH $250.44 To Order
View All

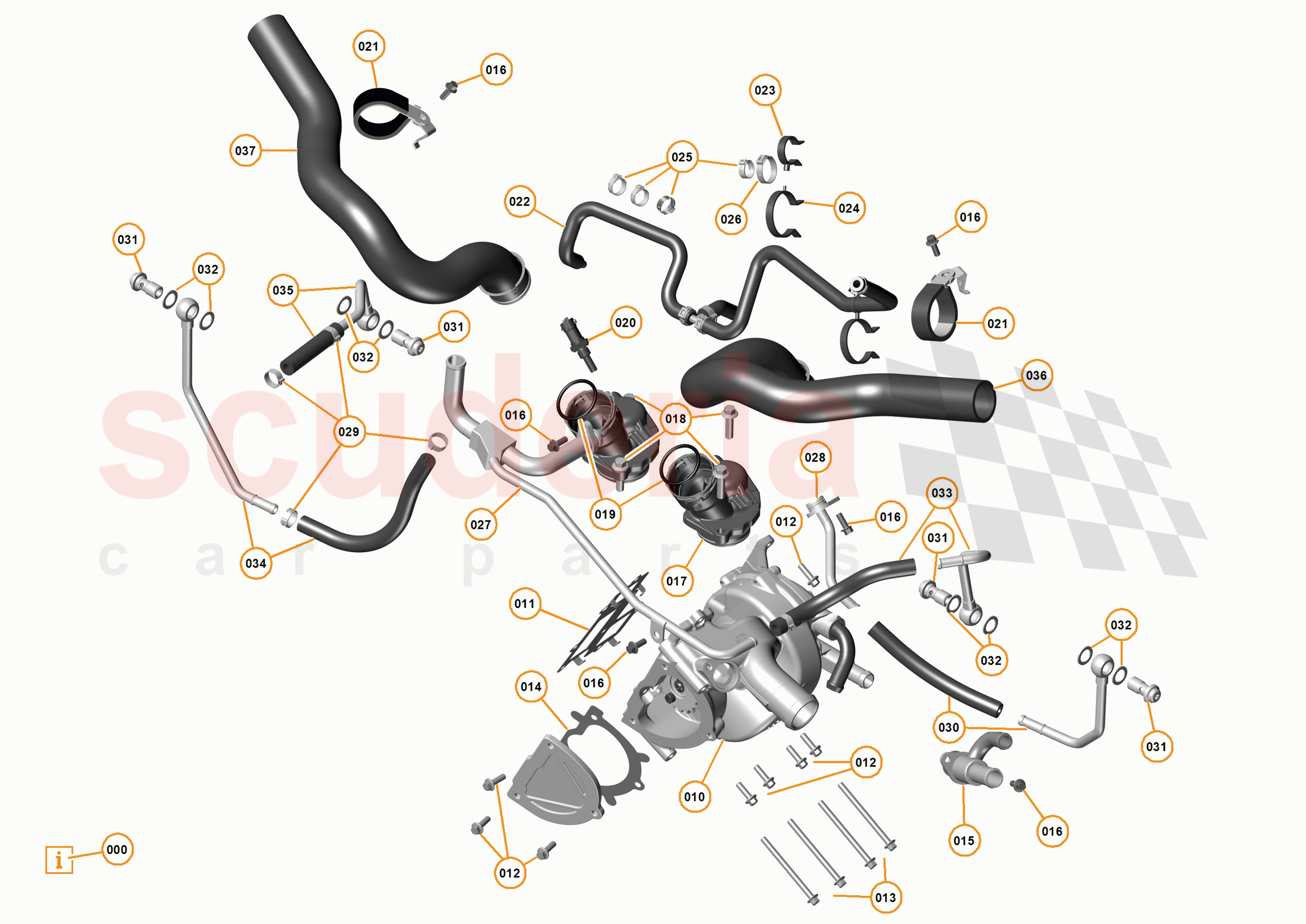

35 - ENGINE COOLING SYSTEM - 35.1 - ENGINE WATER PUMP AND CIRCUIT of McLaren McLaren P1 Coupe Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 11F2059RP
Water Pump - Engine - No AC 		- 1 Enquire
011 11F0686CP
ENGINE WATER PUMP GASKET 		$33.71 1
012 11F1793CP
BOLT - M6X20 - HEX 		$10.58 8
013 11F1784CP
BOLT - M6X80 - HEX 		$19.24 4
014 11F2434CP
GASKET SERVICE COVER WATER PUMP
IN STOCK 		$15.38 1
015 11F0802CP
Heater Return Stub - Engine - Water Pump 		$125.20 1
016 11F0822CP
Bolt - M6x16 - Engine 		- 9 Enquire
017 13FA050CP
THERMOSTAT AND HOUSING-ENGINE 		$250.44 2
018 11F0809CP
Bolt - M8x30 - Engine - Thermostat 		$12.46 4
019 11F1132CP
O-ring - Radiator Hose - Inboard - Engine 		$33.71 2
020 11F2418CP
SENSOR - HEAD TEMPERATURE 		$90.91 1
021 11F0704CP
ENGINE COOLANT TOP24OSE SUPPOR 		$28.87 2
022 12F0692CP
Head Degas - Engine - Assembly 		$1,290.80 1
023 12F0712CP
Clip - Raymond - 053860 		$3.49 1
024 12F0713CP
Clip - Raymond - 053986 		$3.62 1
025 00RB093
OETIKER CLIP - 16.6 		- 4 Enquire
026 00RB143
CLAMP - 25.6-706R 		- 1 Enquire
027 12F0632CP
Heater Feed Pipe - Engine 		$332.77 1
028 12F0680CP
STUB PIPE ASSEMBLY - TURBO WATER FEED - LH 		$696.26 1
030 12F0487CP
PIPE - HOSE - TURBOCHARGER COOLANT FEED - ASSY - LH 		$1,985.06 1
031 12F0684CP
Banjo Bolt - M14x1.5 		$43.33 4
032 12F0685CP
Washer - Sealing - M14 		$9.63 8
033 12F0488CP
PIPE - HOSE - TURBOCHARGER COOLANT RETURN - ASSY - LH 		$1,329.32 1
034 12F0489CP
PIPE - HOSE - TURBOCHARGER COOLANT FEED - ASSY - RH 		$1,299.30 1
035 12F0490CP
PIPE - HOSE - TURBOCHARGER COOLANT RETURN - ASSY - RH 		$1,329.32 1
036 11F1021CP
RADIATOR - INBOARD LH 		$250.44 1
037 11FA039CP
RADIATOR - INBOARD RH 		$250.44 1
