Engine Hood of Lamborghini Lamborghini Diablo SE30 (1993-1995)

View All

Lamborghini Diablo SE30 (1993-1995) - Engine Hood

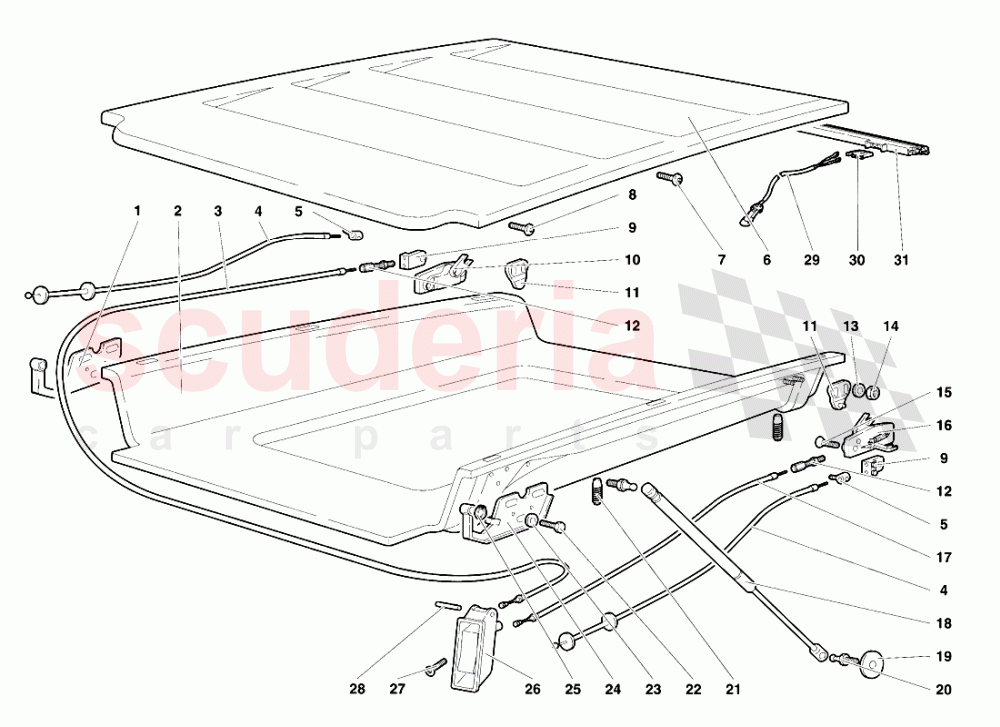

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	9460322	RIGHT HINGE	9460322 RIGHT HINGE CERNIERA DX COFANO MOTORE	$64.77 MSRP: ~~70.30~~ (7.9% off)	1
002	600946001	LOWER ENG. BONNET	600946001 LOWER ENG. BONNET COFANO MOTORE INFERIORE	$10,078.04	1
003	9460006	RIGHT CABLE	9460006 RIGHT CABLE CAVO DX APERT. COFANO	$48.01	1
004	9460003	CABLE	9460003 CABLE CAVO EMERGENZA	$26.84	2
005	9460210	CLAMP	9460210 CLAMP MORSETTO	$28.99 MSRP: ~~31.55~~ (8.1% off)	2
006	600946002	UPPER ENGINE HOOD	600946002 UPPER ENGINE HOOD COFANO MOTORE SUPERIORE	$16,221.46	1
007	8700665	SCREW	8700665 SCREW VITE	$46.98 MSRP: ~~53.00~~ (11.4% off)	4
008	8740685	SCREW IN STOCK	8740685 SCREW VITE IN STOCK	$19.90	2
009	9460212	DOUBLE CLAMP	9460212 DOUBLE CLAMP use 410814333	-	2	Enquire
010	9460200	RIGHT LOCK	9460200 RIGHT LOCK SERRATURA DX	$601.58 MSRP: ~~654.00~~ (8% off)	1
011	9460201	LOCK STRIKER	9460201 LOCK STRIKER RISCONTRO	$129.77	2
012	9460213	ADJ/SCREW	9460213 ADJ/SCREW VITE REGOLAZIONE	-	2	Enquire
013	WHT002961	WASHER IN STOCK	WHT002961 WASHER RONDELLA IN STOCK	$0.39	4
014	N02214812	HEXAGON NUT, SELF-LOCKING	N02214812 HEXAGON NUT, SELF-LOCKING DADO	$2.00 MSRP: ~~7.29~~ (72.6% off)	4
015	8700613	SCREW	8700613 SCREW VITE	$0.15 MSRP: ~~7.37~~ (98% off)	4
016	9460202	LEFT LOCK	9460202 LEFT LOCK SERRATURA SX	$361.88 MSRP: ~~395.00~~ (8.4% off)	1
017	9460007	LEFT CABLE	9460007 LEFT CABLE CAVO SX APERT. COFANO	$48.01	1
018	92004388	ENGINE COVER STRUT IN STOCK	92004388 ENGINE COVER STRUT MARTI NETTO IN STOCK	$202.26	2
019	WHT001942	WASHER IN STOCK	WHT001942 WASHER RONDELLA IN STOCK	$3.06	2
020	9459305	BALL PIN IN STOCK	9459305 BALL PIN PERNO GIUNTO SFERICO IN STOCK	$2.64	4
021	9460214	RUBBER BUMPER IN STOCK	9460214 RUBBER BUMPER PARACOLPI COMMA IN STOCK	$8.07	4
022	8100656	SCREW	8100656 SCREW VITE	$4.04 MSRP: ~~4.55~~ (11.2% off)	6
023	8400626	WASHER	8400626 WASHER RONDELLA	$35.74	6
024	9460323	LEFT HINGE	9460323 LEFT HINGE CERNIERA SX COFANO MOTORE	$120.08	1
025	8580801	RETAINER RING IN STOCK	8580801 RETAINER RING ANELLO RITEGNO IN STOCK	$0.06 MSRP: ~~7.39~~ (99.2% off)	2
026	410823537	DOOR OPENING INTERIOR HANDLE ASSEMBLY IN STOCK	410823537 DOOR OPENING INTERIOR HANDLE ASSEMBLY IN STOCK	$1,223.51	1
027	8700539	SCREW	8700539 SCREW VITE	-	1	Enquire
028	8850304	PIN - SPINA	8850304 PIN - SPINA SA	$1.85 MSRP: ~~2.00~~ (7.5% off)	1
029	6135191	ELECT CABLET-	6135191 ELECT CABLET- CAVO ELETTRICO	$25.19	1
030	6132280	CONNECTOR	6132280 CONNECTOR CONNESSIONE	$9.51 MSRP: ~~10.60~~ (10.3% off)	1
031	410945249A	High Mount Brake Light	410945249A High Mount Brake Light	$174.13	1
031	410945249A	High Mount Brake Light	410945249A High Mount Brake Light use part number: 0R1470010	$174.13	1
