Front Body Elements of Lamborghini Lamborghini Diablo SE30 (1993-1995)

View All

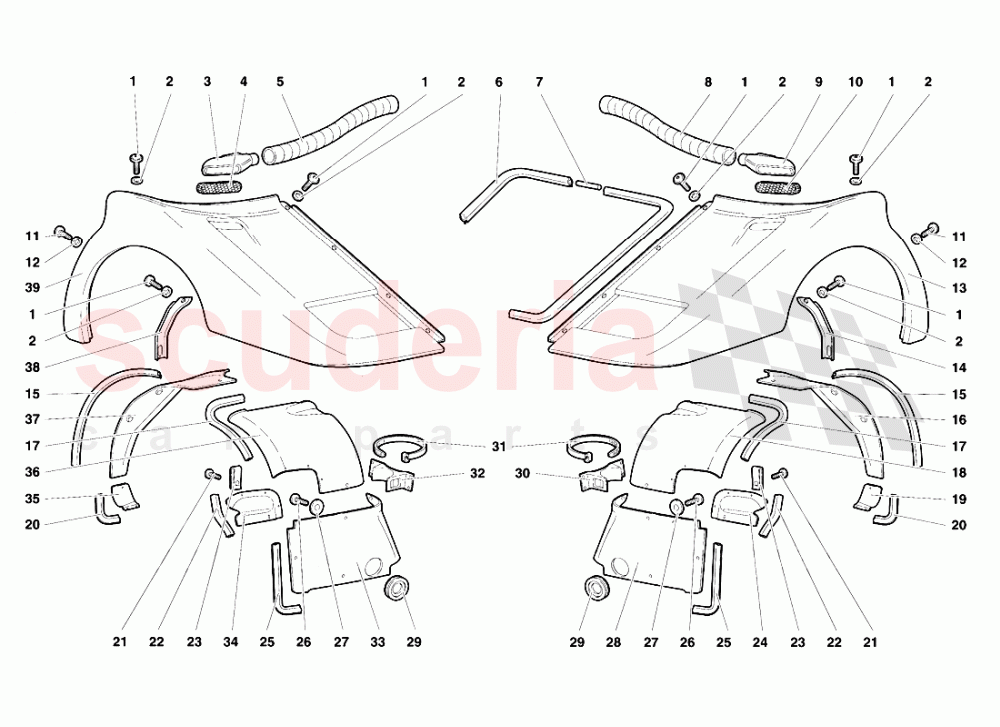

Lamborghini Diablo SE30 (1993-1995) - Front Body Elements

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	8740685	SCREW IN STOCK	8740685 SCREW VITE IN STOCK	$20.00	16
002	8400624	WASHER	8400624 WASHER RONDELLA	$4.47	16
003	9453002	RIGHT AIR INTAKE	9453002 RIGHT AIR INTAKE PRESA D'ARIA DX	$420.34 MSRP: ~~468.00~~ (10.2% off)	1
004	9430122	RIGHT NET	9430122 RIGHT NET RETE DX	$92.74 MSRP: ~~104.00~~ (10.8% off)	1
005	9453129	RIGHT PIPE	9453129 RIGHT PIPE TUBO CORRUGATO DX	$258.23 MSRP: ~~280.00~~ (7.8% off)	1
006	9490111	GASKET	9490111 GASKET GUARN.VANO COFANO ANTER.	$41.75	1
007	9490112	UNION	9490112 UNION GIUNZIONE	$21.94 MSRP: ~~23.80~~ (7.8% off)	1
008	9453130	LEFT PIPE	9453130 LEFT PIPE TUBO FLESSIBILE SX	$280.23 MSRP: ~~303.00~~ (7.5% off)	1
009	9453003	LEFT AIR INTAKE	9453003 LEFT AIR INTAKE PRESA D'ARIA SX	$852.26 MSRP: ~~955.00~~ (10.8% off)	1
010	9430123	LEFT NET	9430123 LEFT NET RETE SX	$90.22 MSRP: ~~101.50~~ (11.1% off)	1
011	8700665	SCREW	8700665 SCREW VITE	$47.20 MSRP: ~~53.00~~ (10.9% off)	8
012	8400624	WASHER	8400624 WASHER RONDELLA	$4.47	8
013	9410001	LEFT FR.MUDGU./FEN.	9410001 LEFT FR.MUDGU./FEN. PARAFANGO ANT. SX	$6,681.45	1
013	9410001A	REPAIR PANEL	9410001A REPAIR PANEL LEFT	-	1	Enquire
014	9410110	LEFT BRACKET	9410110 LEFT BRACKET STAFFA SX	$241.85	1
015	9411410	GASKET	9411410 GASKET GUARNIZIONE	$84.67 MSRP: ~~91.50~~ (7.5% off)	2
016	9411405	LEFT FR. WHEELBOX	9411405 LEFT FR. WHEELBOX ELEMENTO PASSARUOTA ANT. SX	$829.49	1
017	9411417	GASKET	9411417 GASKET GUARNIZIONE	$74.30	2
018	9411404	LEFT FR. WHEELBOX	9411404 LEFT FR. WHEELBOX PASSARUOTA ANT. SX	$1,776.50	1
019	9411426	LEFT PANEL	9411426 LEFT PANEL PANNELLO SX	$81.33	1
020	9411427	GASKET	9411427 GASKET GUARNIZIONE	$57.45 MSRP: ~~62.10~~ (7.5% off)	2
021	N91049601	OVAL HEAD PANEL SCREW (COMBI) IN STOCK	N91049601 OVAL HEAD PANEL SCREW (COMBI) VITE IN STOCK	$0.96 MSRP: ~~7.31~~ (86.9% off)	6
022	9411416	GASKET	9411416 GASKET GUARNIZIONE	$36.25	2
023	WHT000916A	CLIP	WHT000916A CLIP MOLLETTA	$14.50	8
024	9411413	INSPECTION LID	9411413 INSPECTION LID SPORTELLO ISPEZIONE SX	$84.17	1
025	9411408	GASKET	9411408 GASKET GUARNIZIONE	$15.46 MSRP: ~~16.80~~ (8% off)	2
026	8700659	SCREW	8700659 SCREW VITE	$0.31	16
027	N91115501	WASHER	N91115501 WASHER RONDELLA	$1.16 MSRP: ~~7.33~~ (84.2% off)	18
028	9411424	LEFT FR. WHEELBOX	9411424 LEFT FR. WHEELBOX PASSARUOTA ANT. SX	$183.54	1
029	9411418	GASKET	9411418 GASKET GUARNIZIONE	$31.75	2
030	9411422	LEFT RETAINER	9411422 LEFT RETAINER CAVALLOTTO SX	-	1	Enquire
031	8830306	CLAMP	8830306 CLAMP FASCETTA	$3.12	2
032	410805890	RIGHT SUPPORT	410805890 RIGHT SUPPORT CAVALLOTTO DX	$305.47	1
033	9411423	RIGHT FR. WHEELBOX	9411423 RIGHT FR. WHEELBOX PASSARUOTA ANT. DX	$183.54	1
034	9411412	RIGHT LID INSPECTION	9411412 RIGHT LID INSPECTION SPORTELLO ISPEZIONE DX	$84.17	1
035	9411425	RIGHT PANEL	9411425 RIGHT PANEL PANNELLO DX	$79.57 MSRP: ~~89.20~~ (10.8% off)	1
036	9411401	FR. WHEELBOX	9411401 FR. WHEELBOX PASSARUOTA ANT. DX	$1,776.50	1
037	9411402	RIGHT FR. WHEELBOX	9411402 RIGHT FR. WHEELBOX ELEMENTO PASSARUOTA ANT. DX	$343.08	1
038	9410109	RIGHT BRACKET	9410109 RIGHT BRACKET STAFFA DX	$241.85	1
039	9410000	RIGHT FR.MUDGU./FEN.	9410000 RIGHT FR.MUDGU./FEN. PARAFANGO ANT. DX	$6,681.45	1
039	9410000A	REPAIR PANEL	9410000A REPAIR PANEL RIGHT	-	1	Enquire
