Head Lamp Lifting System of Lamborghini Lamborghini Diablo SE30 (1993-1995)

View All

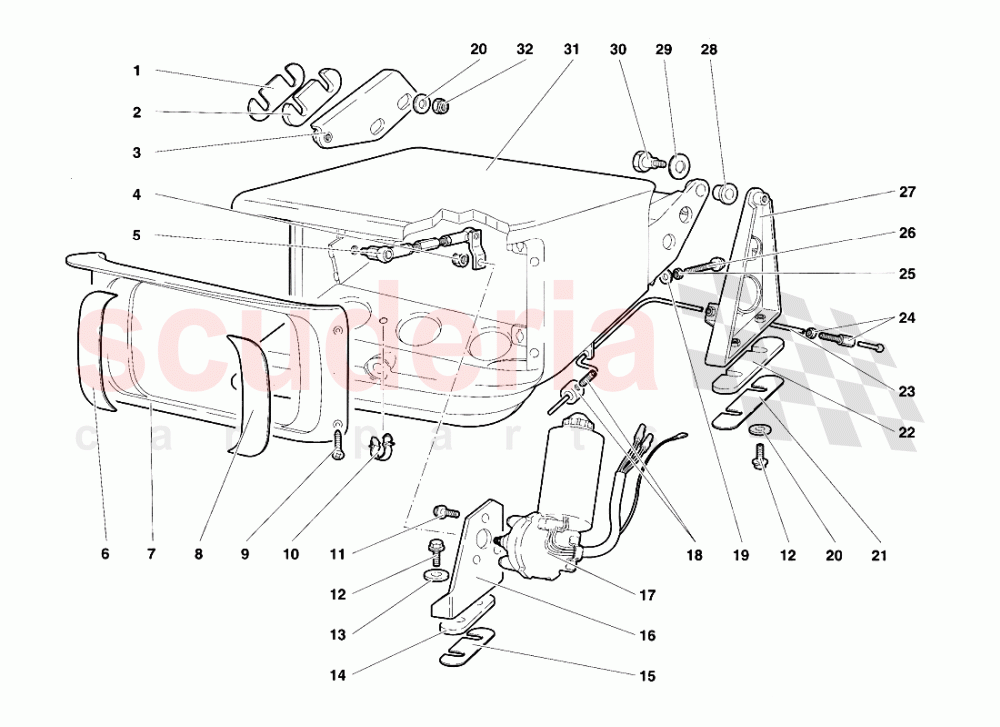

Lamborghini Diablo SE30 (1993-1995) - Head Lamp Lifting System

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	9444136	SHIM	9444136 SHIM SPESSORE Dl REGISTRO	$21.12	1
002	9444137	SHIM	9444137 SHIM SPESSORE Dl REGISTRO	$36.81	1
003	9444148	LEFT BRACKET	9444148 LEFT BRACKET STAFFA SX	$41.24	1
003	9444147	RIGHT BRACKET	9444147 RIGHT BRACKET STAFFA DX	$41.24	1
004	N01118312	HEXAGON NUT, SELF-LOCKING IN STOCK	N01118312 HEXAGON NUT, SELF-LOCKING DADO IN STOCK	$2.07	2
005	9444203	TIE ROD	9444203 TIE ROD TIRANTE	-	2	Enquire
006	9444141	RIGHT ADHESIV	9444141 RIGHT ADHESIV ADESIVO DX (per 9444125)	$12.89	1
006	9444139	RIGHT ADHESIV	9444139 RIGHT ADHESIV ADESIVO DX (per 9444124)	$12.89	1
007	9444124	RIGHT FRAME	9444124 RIGHT FRAME CORNICE DX	$177.91	1
007	9444125	LEFT FRAME	9444125 LEFT FRAME CORNICE SX	$119.75	1
008	9444142	LEFT ADHESIV	9444142 LEFT ADHESIV ADESIVO SX (per 9444125)	$12.89	1
008	9444140	LEFT ADHESIV	9444140 LEFT ADHESIV ADESIVO SX (per 94441 24)	$6.26	1
009	WHT003065	SCREW (2,9X16) IN STOCK	WHT003065 SCREW (2,9X16) VITE NERA IN STOCK	$1.24 MSRP: ~~7.18~~ (82.7% off)	4
009	8700335	WHITE SCREW	8700335 WHITE SCREW VITE BIANCA	$0.46 MSRP: ~~7.30~~ (93.7% off)	4
010	8830410	STRAP	8830410 STRAP FASCETTA	$0.08	2
011	N10718801	HEX COLLARED BOLT IN STOCK	N10718801 HEX COLLARED BOLT VITE IN STOCK	$1.68	6
012	N10158604	SCREW	N10158604 SCREW VITE	$25.15	8
013	8400620	WASHER	8400620 WASHER RONDELLA	$1.39 MSRP: ~~7.38~~ (81.2% off)	4
014	9444137	SHIM	9444137 SHIM SPESSORE Dl REGISTRO	$36.81	1
015	9444136	SHIM	9444136 SHIM SPESSORE Dl REGISTRO	$21.12	1
016	9444143	RIGHT SUPPORT	9444143 RIGHT SUPPORT SUPPORTO DX	$86.95	1
016	9444144	LEFT SUPPORT	9444144 LEFT SUPPORT SUPPORTO SX	$86.57	1
017	5937319	LEFT ELECT MOTOR	5937319 LEFT ELECT MOTOR MOTORING ALZAFARI SX	$314.35	1
017	5937318	RIGHT ELECT MOTOR	5937318 RIGHT ELECT MOTOR MOTORINO ALZAFARI DX .	$913.06	1
018	9459217	CLAMP	9459217 CLAMP MORSETTO	-	2	Enquire
019	WHT003052	WASHER 4,3 IN STOCK	WHT003052 WASHER 4,3 RONDELLA IN STOCK	$3.50 MSRP: ~~7.38~~ (52.6% off)	2
020	8400626	WASHER	8400626 WASHER RONDELLA	$35.71	8
021	9444134	SHIM	9444134 SHIM SPESSORE Dl REGISTRO	$16.88	1
022	9444135	SHIM	9444135 SHIM SPESSORE Dl REGISTRO	$9.16	1
023	9444204	CABLE	9444204 CABLE CAVO X ALZAFARI	$53.33	2
024	9460213	ADJ/SCREW	9460213 ADJ/SCREW VITE Dl REGISTRO	-	2	Enquire
025	N01100632	NUT M6	N01100632 NUT M6 DADO	$4.19 MSRP: ~~7.33~~ (42.8% off)	2
026	9444205	ADJ/SCREW	9444205 ADJ/SCREW VITE Dl REGISTRO	$22.85	2
027	9444127	RIGHT SUPPORT	9444127 RIGHT SUPPORT SUPPORTO DX	$38.07	1
027	9444129	LEFT SUPPORT	9444129 LEFT SUPPORT SUPPORTO SX	$38.07	1
028	8801004	BUSHING	8801004 BUSHING BOCCOLA	$57.28	4
029	9444138	WASHER	9444138 WASHER RONDELLA	$0.83	4
030	8100857	SCREW	8100857 SCREW VITE	$25.27	4
031	9444001	LEFT HOUSING	9444001 LEFT HOUSING PALPEBRA SX	$1,126.06	1
031	9444000	RIGHT HOUSING	9444000 RIGHT HOUSING PALPEBRA DX	$1,126.06	1
032	N01118312	HEXAGON NUT, SELF-LOCKING IN STOCK	N01118312 HEXAGON NUT, SELF-LOCKING DADO IN STOCK	$2.07	4
