Rear Wheel and Hub Carrier of Lamborghini Lamborghini Diablo SE30 (1993-1995)

View All

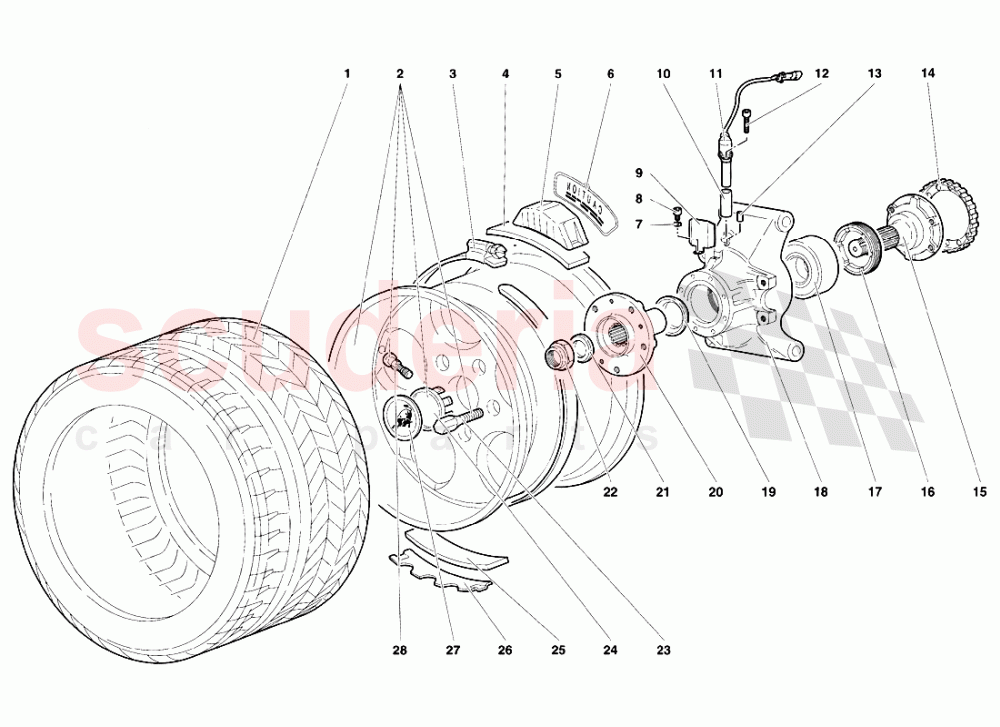

Lamborghini Diablo SE30 (1993-1995) - Rear Wheel and Hub Carrier

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	5334365	REAR TYRE	5334365 REAR TYRE PNEUMATICO POST.	-	2	Enquire
002	5234364	REAR RIM	5234364 REAR RIM CERCHIO RUOTA POST.	$3,665.79	2
003	5131893	STRAP	5131893 STRAP FASCETTA	-	2	Enquire
004	5131894	GASKET	5131894 GASKET GUARNIZIONE	$2.49 MSRP: ~~2.70~~ (7.8% off)	2
005	5131891	LOW TYRE P. SENSOR	5131891 LOW TYRE P. SENSOR TRASMETTITORE	-	2	Enquire
006	5132551	PLATE	5132551 PLATE TARGHETTA	$15.11	2
007	WHT003213	WASHER	WHT003213 WASHER RONDELLA	$1.24 MSRP: ~~7.15~~ (82.7% off)	2
008	8700643	SCREW	8700643 SCREW VITE	$0.37 MSRP: ~~7.32~~ (94.9% off)	2
009	5235575	SHIELD	5235575 SHIELD PROTEZIONE	$28.31	2
010	5234786	BUSHING	5234786 BUSHING BOCCOLA	$37.65	2
011	5235331	TYRE REVOL. SENSOR	5235331 TYRE REVOL. SENSOR SENSORE GIRI RUOTA LAVOR.	$1,712.65	2
012	8700601	SCREW	8700601 SCREW VITE	$5.41	2
013	5235213	BUSHING	5235213 BUSHING BOCCOLA	$10.51	2
014	5234779	PHONIC WHEEL	5234779 PHONIC WHEEL RUOTA FONICA	$129.77	2
015	5235048	FLANGE	5235048 FLANGE FLANGIA FISS.SEMIASSE	$2,727.59	2
016	5233369	PLUG	5233369 PLUG GHIERA X CSN SUL PORTAMOZ	$223.17 MSRP: ~~251.00~~ (11.1% off)	2
017	8514501	BEARING	8514501 BEARING CUSCINETTO	$107.49 MSRP: ~~121.00~~ (11.2% off)	2
018	5234992	LEFT HUB HOUSING	5234992 LEFT HUB HOUSING PORTAMOZZO SX	$3,599.32	1
018	5234993	RIGHT HUB HOUSING	5234993 RIGHT HUB HOUSING PORTAMOZZO DX	$1,902.97	1
019	5225957	SPACER	5225957 SPACER DISTANZIALE	$103.10	2
020	5234999	HUB	5234999 HUB MOZZO PORTA RUOTA POSTER.	$2,731.46	2
021	8403103	WASHER	8403103 WASHER RONDELLA	$136.67	2
022	5231418	NUT	5231418 NUT DADO X MOZZO POST.	$935.16	2
023	5135969	STUD	5135969 STUD COLONNETTA	$47.01	10
024	5236122	PLUG	5236122 PLUG TAPPO	-	2	Enquire
025	5131895	GASKET	5131895 GASKET GUARNIZ.X EMETTIT.IMPULSI	$3.19 MSRP: ~~3.50~~ (8.9% off)	2
026	5131892	BALANCE WEIGHT	5131892 BALANCE WEIGHT CONTRAPPESO	$30.69 MSRP: ~~33.30~~ (7.8% off)	2
027	5236123	ORNAMENT	5236123 ORNAMENT FREGIO	-	2	Enquire
028	5336015	VALVE	5336015 VALVE VALVOLA	$18.84	2
