Doors 2 of Lamborghini Lamborghini Diablo SE30 (1993-1995)

View All

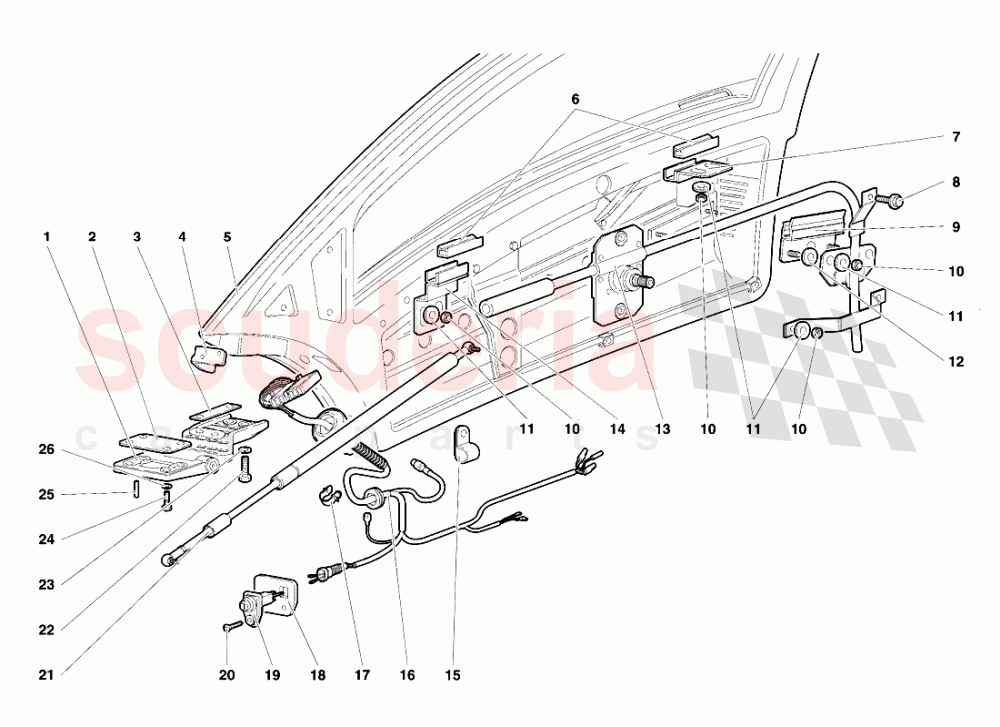

Lamborghini Diablo SE30 (1993-1995) - Doors 2

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	410831402	RH HINGE	410831402 RH HINGE CERNIERADX	$1,084.35	1
001	9421030	LH HINGE	9421030 LH HINGE CERNIERASX	$1,189.38 MSRP: ~~1,335.00~~ (10.9% off)	1
002	4132054	SHIM	4132054 SHIM SPESSORE Dl REGISTRO 1,5 MM	-	1	Enquire
002	4132052	SHIM	4132052 SHIM SPESSORE Dl REGISTRO 1 MM	-	1	Enquire
002	4132051	SHIM	4132051 SHIM SPESSORE Dl REGISTRO 0,8 MM	-	1	Enquire
002	4132053	SHIM	4132053 SHIM SPESSORE Dl REGISTRO 1,2 MM	-	1	Enquire
003	9421380	SHIM	9421380 SHIM SPESSORE Dl REGISTRO 1 MM	-	1	Enquire
003	9421381	SHIM	9421381 SHIM SPESSORE Dl REGISTRO 1,5 MM	$26.29 MSRP: ~~29.45~~ (10.7% off)	1
004	9421619	LEFT SUPPORT	9421619 LEFT SUPPORT SUPPORTO SX	$14.98	1
004	9421618	RIGHT SUPPORT	9421618 RIGHT SUPPORT SUPPORTO DX	$14.98	1
005	9421033	RIGHT DOOR	9421033 RIGHT DOOR PORTA DX	$9,064.62	1
005	9421034	LEFT DOOR	9421034 LEFT DOOR PORTA SX	$11,986.06	1
006	9421732	GASKET	9421732 GASKET GUARNIZIONE	$49.38	4
007	9421419	BRACKET	9421419 BRACKET STAFFA	$28.93	2
008	N90319404	SCREW IN STOCK	N90319404 SCREW VITE IN STOCK	$2.07	6
009	9421421	MOB. GLA. FIXING PLIE.	9421421 MOB. GLA. FIXING PLIE. PINZA FISS.VETRO MOBILE	$379.92	2
010	N0211963	NUT IN STOCK	N0211963 NUT DADO IN STOCK	$0.72	16
011	WHT003040	WASHER 5.3X1.5X15 (For Becker Radio System)	WHT003040 WASHER 5.3X1.5X15 (For Becker Radio System) RONDELLA	$7.07	16
012	9444151	WASHER	9444151 WASHER DISTANZIALE	-	1	Enquire
013	9421614	R. WINDOW REGUL.	9421614 R. WINDOW REGUL. ALZAVETRO MANUALE DX	$836.60	1
013	9421615	L. WINDOW REGUL.	9421615 L. WINDOW REGUL. ALZAVETRO MANUALE SX	$717.08	1
014	9421418	BRACKET	9421418 BRACKET STAFFA	$96.99	2
015	8830907	STRAP IN STOCK	8830907 STRAP FASCETTA IN STOCK	$0.46 MSRP: ~~7.30~~ (93.7% off)	8
016	6135125	DOORS WIRING	6135125 DOORS WIRING CABLAGGIO PORTE	$369.05	2
017	8830411	STRAP IN STOCK	8830411 STRAP MOLLETTA IN STOCK	$1.20 MSRP: ~~7.09~~ (83.1% off)	2
018	5934447	PLATE	5934447 PLATE SPESSORE PULSANTE PORTA	$69.28 MSRP: ~~77.80~~ (11% off)	2
019	5934450	SWITCH	5934450 SWITCH PULSANTE PORTA	$19.98 MSRP: ~~21.75~~ (8.1% off)	2
020	WHT003304	SCREW IN STOCK	WHT003304 SCREW VITE IN STOCK	$0.57 MSRP: ~~7.28~~ (92.2% off)	2
021	9421047	ADJUST. GAS SPRING	9421047 ADJUST. GAS SPRING MOLLA A GAS REGOLABILE	$252.61	2
022	8101008	SCREW	8101008 SCREW VITE	$15.03	8
023	8411015	WASHER	8411015 WASHER RONDELLA	$10.52 MSRP: ~~11.70~~ (10.1% off)	8
024	8100821	SCREW	8100821 SCREW VITE	$1.20	8
025	8900401	PIN IN STOCK	8900401 PIN SA ELASTICA IN STOCK	$0.24 MSRP: ~~7.35~~ (96.7% off)	4
026	8400801	WASHER	8400801 WASHER RONDELLA	$0.64	8
