Body Elements - Left Flank of Lamborghini Lamborghini Diablo SE30 (1993-1995)

View All

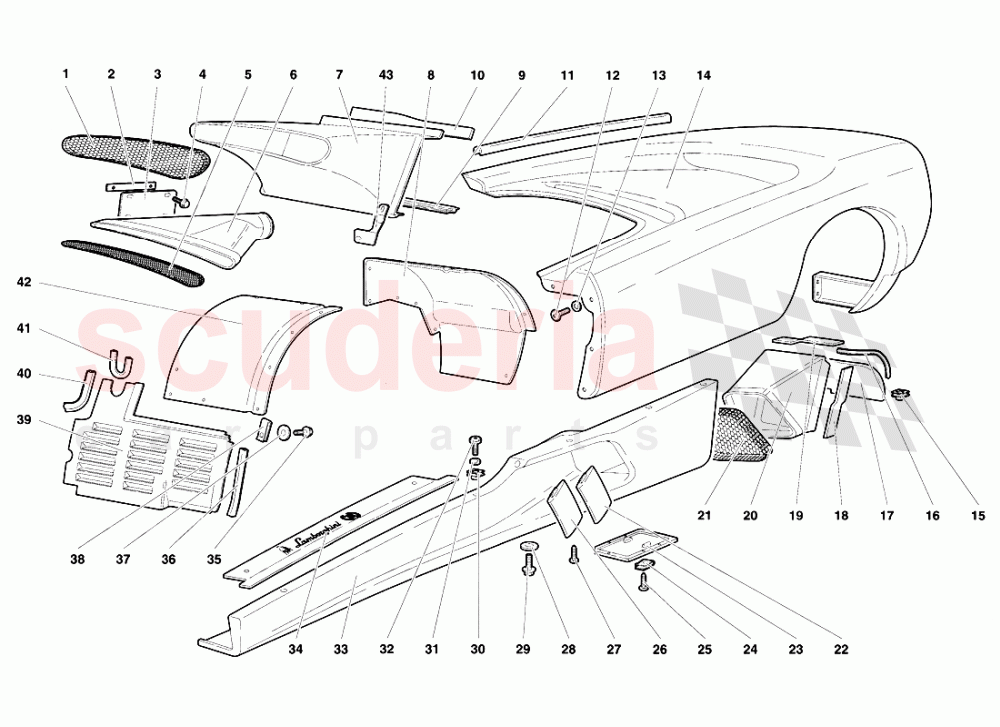

Lamborghini Diablo SE30 (1993-1995) - Body Elements - Left Flank

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	9430125	NET	9430125 NET RETE	$377.92	1
002	9453137	BRACKET	9453137 BRACKET STAFFA	$8.54 MSRP: ~~9.30~~ (8.2% off)	1
003	9453136	SUPPORT - SUPPORTO	9453136 SUPPORT - SUPPORTO O	$11.03 MSRP: ~~12.05~~ (8.5% off)	1
004	N10718801	HEX COLLARED BOLT IN STOCK	N10718801 HEX COLLARED BOLT VITE IN STOCK	$1.68	4
005	9430127	NET	9430127 NET RETE	$232.28	1
006	9453138	CONVEYOR	9453138 CONVEYOR CONVOGLIATORE	$429.99 MSRP: ~~467.00~~ (7.9% off)	1
007	9453147	CONVEYOR	9453147 CONVEYOR CONVOGLIATORE	$798.87 MSRP: ~~869.00~~ (8.1% off)	1
008	9411506	REAR WHEELBOX	9411506 REAR WHEELBOX ELEMENTO PASSARUOTA POST.	$451.88	1
009	7090117	GASKET	7090117 GASKET GUARNIZIONE	$54.47	1
010	4531592	GASKET	4531592 GASKET GUARNIZIONE	$8.66 MSRP: ~~9.45~~ (8.4% off)	1
011	9490113	GASKET	9490113 GASKET GUARNIZIONE	$31.61 MSRP: ~~32.55~~ (2.9% off)	1
012	8740685	SCREW IN STOCK	8740685 SCREW VITE IN STOCK	$19.91	11
013	8400624	WASHER	8400624 WASHER RONDELLA	$4.44	11
014	9410003	REAR MUDGUARD FEN.	9410003 REAR MUDGUARD FEN. PARAFANGO POST.	-	1	Enquire
015	N90327506	SPEED NUT IN STOCK	N90327506 SPEED NUT MOLLETTA IN STOCK	$1.23	2
016	9490200	GASKET IN STOCK	9490200 GASKET GUARNIZIONE IN STOCK	$126.81	1
017	9453142	CONVEYOR	9453142 CONVEYOR CONVOGLIATORE	$100.87 MSRP: ~~113.50~~ (11.1% off)	1
018	9453126	GASKET	9453126 GASKET GUARNIZIONE	$3.74 MSRP: ~~4.15~~ (9.9% off)	1
019	9453125	GASKET	9453125 GASKET GUARNIZIONE	$4.96 MSRP: ~~5.45~~ (9% off)	1
020	9453149	CONVEYOR	9453149 CONVEYOR CONVOGLIATORE	-	1	Enquire
021	9430148	NET	9430148 NET RETE X BRANCARDO SX	$119.96	1
022	9410312	FIN	9410312 FIN ALETTA	$5,890.54	1
023	9410306	INSPECTION LID	9410306 INSPECTION LID SPORTELLO ISPEZIONE	$62.71 MSRP: ~~70.60~~ (11.2% off)	1
024	WHT003424	CLIP IN STOCK	WHT003424 CLIP MOLLETTA IN STOCK	$0.83 MSRP: ~~7.25~~ (88.6% off)	6
025	WHT003114	SCREW	WHT003114 SCREW VITE	$5.12	6
026	9410311	FIN	9410311 FIN ALETTA	$5,890.54	1
027	WHT003304	SCREW IN STOCK	WHT003304 SCREW VITE IN STOCK	$0.57 MSRP: ~~7.28~~ (92.2% off)	4
028	WHT002961	WASHER IN STOCK	WHT002961 WASHER RONDELLA IN STOCK	$0.39	3
029	WHT003069	SCREW M6X1X20	WHT003069 SCREW M6X1X20 VITE	$42.01	9
030	N90327506	SPEED NUT IN STOCK	N90327506 SPEED NUT MOLLETTA IN STOCK	$1.23	6
031	8400624	WASHER	8400624 WASHER RONDELLA	$4.44	3
032	8740685	SCREW IN STOCK	8740685 SCREW VITE IN STOCK	$19.91	3
033	9410308	LEFT SIDE PANEL	9410308 LEFT SIDE PANEL BRANCARDO SX	$6,103.82	1
034	9458373	LEFT DOORSILL MOUL.	9458373 LEFT DOORSILL MOUL. BATTICALCAGNO SX	$186.76	1
035	8700449	SCREW IN STOCK	8700449 SCREW VITE IN STOCK	$2.77 MSRP: ~~7.37~~ (62.4% off)	21
036	9411524	GASKET	9411524 GASKET GUARNIZIONE	-	1	Enquire
037	N91109201	WASHER IN STOCK	N91109201 WASHER RONDELLA IN STOCK	$1.62 MSRP: ~~5.85~~ (72.3% off)	21
038	WHT000916A	CLIP	WHT000916A CLIP MOLLETTA	$14.44	9
039	9411521	PROTECTION	9411521 PROTECTION PARASASSI SX	-	1	Enquire
040	9411512	GASKET	9411512 GASKET GUARNIZIONE	$63.22	1
041	9411513	GASKET	9411513 GASKET GUARNIZIONE	$170.14	1
042	9411505	REAR WHEELBOX	9411505 REAR WHEELBOX PASSARUOTA POST. SX	$468.02	1
043	4135636	BRACKET	4135636 BRACKET STAFFA	$68.12	1
