Lamborghini Diablo SE30 (1993-1995) - Windows

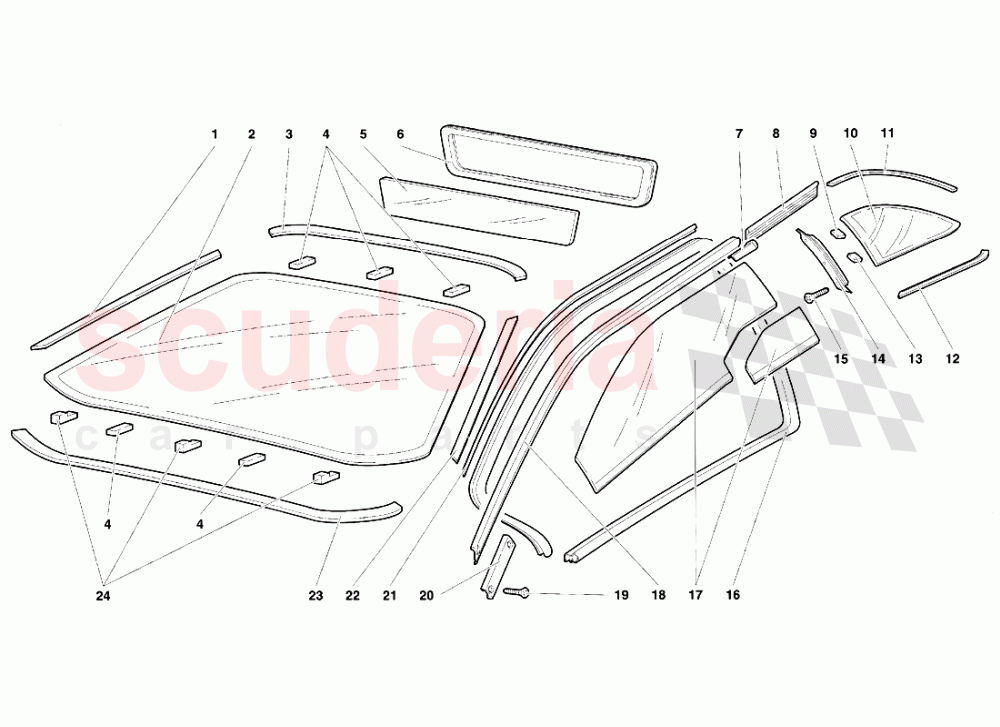

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
001	9415204	RIGHT FRAME	9415204 RIGHT FRAME CORNICE LATERALE DX	$385.70	1
002	9415107	FRONT GLASS	9415107 FRONT GLASS PARABREZZA	$7,485.29	1
003	9415200	TOP FRAME	9415200 TOP FRAME CORNICE SUPERIORE	$491.85	1
004	410845235	WINDSHIELD SPACER IN STOCK	410845235 WINDSHIELD SPACER IN STOCK	$51.22	5
005	9418100	REAR GLASS	9418100 REAR GLASS LUNOTTO	$789.05 MSRP: ~~889.00~~ (11.2% off)	1
006	9418103	GASKET	9418103 GASKET GUARNIZIONE LUNOTTO	$560.98 MSRP: ~~611.00~~ (8.2% off)	1
007	9421719	RIGHT PAD	9421719 RIGHT PAD TASSELLO DX	$7.89	1
007	9421720	LEFT PAD	9421720 LEFT PAD TASSELLO SX	$7.89	1
008	9421733	GASKET	9421733 GASKET GUARNIZIONE	$38.17	2
009	400845633	QUARTER WINDOW GLASS SHIM	400845633 QUARTER WINDOW GLASS SHIM DISTANZIALE	$15.79	2
010	70004149	RIGHT HAND GLASS	70004149 RIGHT HAND GLASS CRISTALLO LAT. DX FISSO	$10,643.35	1
010	70004150	LEFT HAND GLASS	70004150 LEFT HAND GLASS CRISTALLO LAT. SX FISSO	$10,643.35	1
011	9417107	LEFT FRAME	9417107 LEFT FRAME CORNICE SX	$341.34	1
011	9417106	RIGHT FRAME	9417106 RIGHT FRAME CORNICE DX	$667.92	1
012	9417103	LEFT FRAME	9417103 LEFT FRAME CORNICE SX	$218.88	1
012	9417102	RIGHT FRAME	9417102 RIGHT FRAME CORNICE DX	$258.03	1
013	410845626	SPACER	410845626 SPACER	$11.10	2
014	9417105	LEFT FRAME	9417105 LEFT FRAME CORNICE SX	$432.73	1
014	9417104	RIGHT FRAME	9417104 RIGHT FRAME CORNICE DX	$577.86	1
015	WHT003065	SCREW (2,9X16) IN STOCK	WHT003065 SCREW (2,9X16) VITE IN STOCK	$1.24 MSRP: ~~7.18~~ (82.7% off)	6
016	72010205	RHS GASKET	72010205 RHS GASKET	$662.34	1
016	72010206	LHS GASKET	72010206 LHS GASKET GUARNIZIONE GIROPORTA	$816.68	1
017	9421423	RIGHT LATERAL GLASS	9421423 RIGHT LATERAL GLASS CRISTALLO LATERALE DX	$7,969.06	1
017	9421424	LEFT LATERAL GLASS (Small Glass Only)	9421424 LEFT LATERAL GLASS (Small Glass Only) CRISTALLO LATERALE SX	$7,969.06	1
018	72001177	GASKET	72001177 GASKET	$503.96	2
019	8700211	BLACK SCREW	8700211 BLACK SCREW VITE	$0.07	4
020	9421718	PLATE	9421718 PLATE PIASTRINA	$31.59	2
021	9421708	RIGHT SUPPORT	9421708 RIGHT SUPPORT SUPPORTO DX	$358.25	1
021	9421709	LEFT SUPPORT	9421709 LEFT SUPPORT SUPPORTO SX	$348.06	1
022	9415205	LEFT FRAME	9415205 LEFT FRAME CORNICE LATERALE SX	$487.83	1
023	9415201	BOTTOM FRAME	9415201 BOTTOM FRAME CORNICE INFERIORE	$439.43	1
024	9415101	SPACER	9415101 SPACER DISTANZIALE	$14.46	3
