Aston Martin DBS V12 - Body Sound Insulation (Coupe)

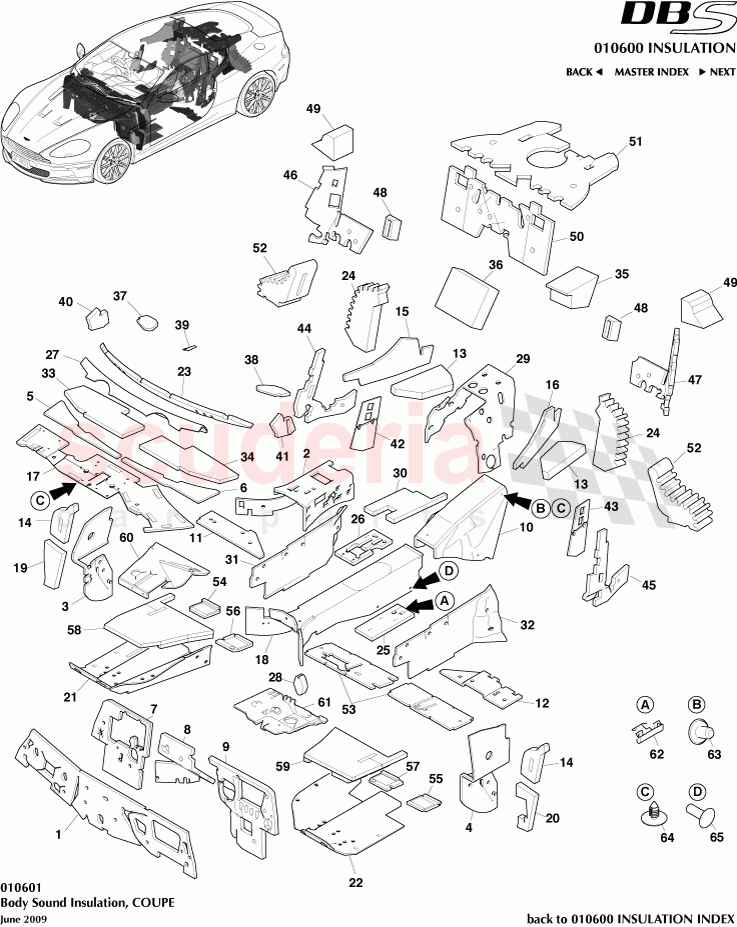

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	6G33102B00BE	INS ENG HSG SND RHD	$148.58	To Order
	6G33102B00AE	INS ENG HSG SND LHD	$156.03	To Order

Photo	Part No	Description	Price (each)	Stock
	8G4311446AB	Insulation, Sound, Floor Pan Gear Shift Cover	$39.17	To Order

Photo	Part No	Description	Price (each)	Stock
	8G43310A58AB	Insulation, Body Side Front, RH	$55.39	To Order

Photo	Part No	Description	Price (each)	Stock
	8G43310A57AC	Insulation, Body Side Front, LH	$55.39	To Order

Photo	Part No	Description	Price (each)	Stock
	4G4302292AB	Insulation, Sound, Cowl Side Panel Lower, RH	$13.95	To Order

Photo	Part No	Description	Price (each)	Stock
	4G4302293AB	Insulation, Sound, Cowl Side Panel Lower, LH	$13.95	To Order

Photo	Part No	Description	Price (each)	Stock
	8G43002K06AB	BAFFLE BODY FRONT PANEL RHD RH	$68.23	To Order
	8G43002K05AA	BAFFLE BODY FRONT PANEL LHD RH	$86.79	To Order

Photo	Part No	Description	Price (each)	Stock
	8G43021A58AB	BAFFLE BODY FRONT PANEL RHD CENTRE	$57.18	To Order
	8G43021A59AA	Baffle, Body Front Panel, Centre	$37.81	To Order

Photo	Part No	Description	Price (each)	Stock
	8G43015A22AB	BAFFLE BODY FRONT PANEL RHD LH	$86.71	To Order
	8G43015A23AA	BAFFLE BODY FRONT PANEL LHD LH	$68.23	To Order

Photo	Part No	Description	Price (each)	Stock
	4G437Z309AC	Insulation, Transmission Case Cover	$79.28	To Order

Photo	Part No	Description	Price (each)	Stock
	4G4311204AA	Insulation, Sound, Rear Floor Pan, RH	$12.09	To Order

Photo	Part No	Description	Price (each)	Stock
	8G4311205AA	Insulation, Sound, Rear Floor Pan, LH	$20.63	To Order

Photo	Part No	Description	Price (each)	Stock
	4G43F310A26AA	Insulation, Sound, Quarter I/S Panel	$17.32	To Order

Photo	Part No	Description	Price (each)	Stock
	4G4328112AB	NVH FOAM PAD ASY FNDR RH UPR	$29.51	To Order

Photo	Part No	Description	Price (each)	Stock
	AD33L27746AC	Insulation, quarter panel front side, RH	$20.73	To Order

Photo	Part No	Description	Price (each)	Stock
	AD33L27747AC	REAR 1/4 PANEL CABIN NVH LH	$13.62	To Order

Photo	Part No	Description	Price (each)	Stock
	4G4300152BG	RHD UNDER WIPER MOTOR NVH	$210.96	To Order
	4G4300152AG	LHD UNDER WIPER MOTOR NVH	$210.96	To Order

Photo	Part No	Description	Price (each)	Stock
	4G43114B26AH	Insulation, Tunnel	$105.26	To Order

Photo	Part No	Description	Price (each)	Stock
	4G4328110AB	NVH FOAM PAD ASY FNDR RH LWR	$21.41	To Order

Photo	Part No	Description	Price (each)	Stock
	4G4328111AB	NVH FOAM PAD ASY FNDR LH LWR	$21.41	To Order

Photo	Part No	Description	Price (each)	Stock
	4G4354571AF	Baffle, Floor, RH	$24.85	To Order

Photo	Part No	Description	Price (each)	Stock
	4G4354572AE	Baffle, Floor, LH	$24.85	To Order

Photo	Part No	Description	Price (each)	Stock
	CG4302139AA	Baffle, cowl, top in end	$15.66	To Order

Photo	Part No	Description	Price (each)	Stock
	8G4324562AB	Cavity Block, Front Seat Belt Spool	$53.57	To Order

Photo	Part No	Description	Price (each)	Stock
	6G33218061AB	NVH GEAR SHIFTER LOWER ASSEMBLY	$18.16	To Order

Photo	Part No	Description	Price (each)	Stock
	6G33218060AB	NVH GEAR SHIFTER UPPER ASSEMBLY	$11.34	To Order

Photo	Part No	Description	Price (each)	Stock
	6G3368066AC	NVH DASH FOAM UNDER SIDE CAVITY ASSY	$46.18	To Order

Photo	Part No	Description	Price (each)	Stock
	8G4304564AA	NVH, Autobox Clutch Pedal	$0.91	To Order

Photo	Part No	Description	Price (each)	Stock
	8G435416AF	NVH TNL RR INR	$64.00	To Order

Photo	Part No	Description	Price (each)	Stock
	6G3313082AA	NVH, Tunnel Top Arm Rest	$19.74	To Order

Photo	Part No	Description	Price (each)	Stock
	8G3324926AB	PAD TUNNEL SIDE RIGHT HAND	$27.03	To Order

Photo	Part No	Description	Price (each)	Stock
	8G3324927AB	PAD TUNNEL SIDE LEFT HAND	$27.01	To Order

Photo	Part No	Description	Price (each)	Stock
	8G4348182AB	Foam Pad, Under IP, RH	$21.51	To Order

Photo	Part No	Description	Price (each)	Stock
	8G4348181AB	Foam Pad, Under IP, LH	$21.51	To Order

Photo	Part No	Description	Price (each)	Stock
	8G43C56157AD	Sheet Damping SPT, Rear Parcel Shelf	$46.18	To Order

Photo	Part No	Description	Price (each)	Stock
	8G438021AA	NVH REAR SPEAKER COVER	$11.91	To Order

Photo	Part No	Description	Price (each)	Stock
	9G43046B72AA	Insulation, I/ panel radio speaker opening, RH	$2.21	To Order

Photo	Part No	Description	Price (each)	Stock
	9G43046B73AA	Insulation, I/ pnl radio speaker opening, LH	$2.21	To Order

Photo	Part No	Description	Price (each)	Stock
	9G43047B22AA	Insulation, I/ panel radio speaker opening, centre	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	CG43310A60AA	Insulation, Body Side Front Upper, RH	$15.06	To Order

Photo	Part No	Description	Price (each)	Stock
	CG43310A59AA	Insulation, Body Side Front Upper, LH	$15.06	To Order

Photo	Part No	Description	Price (each)	Stock
	CG43D1160AC	Insulation, rear quarter trim, RH	$10.21	To Order

Photo	Part No	Description	Price (each)	Stock
	CG43D1161AC	Insulation, Rear Quarter Trim, LH	$12.73	To Order

Photo	Part No	Description	Price (each)	Stock
	AD33L27746AC	Insulation, quarter panel front side, RH	$20.73	To Order

Photo	Part No	Description	Price (each)	Stock
	AD33L27747AC	REAR 1/4 PANEL CABIN NVH LH	$13.62	To Order

Photo	Part No	Description	Price (each)	Stock
	AD33L31180AC	Insulation, rear bulkhead NVH, RH	$15.29	To Order

Photo	Part No	Description	Price (each)	Stock
	AD33L31181AC	REAR BULKHEAD NVH LH	$9.49	To Order

Photo	Part No	Description	Price (each)	Stock
	CG43C311K70AA	NVH, Hood Hydraulic Pump	$3.10	To Order

Photo	Part No	Description	Price (each)	Stock
	CG43C27748AA	Insulation, Rear Quarter Sound Upper, RH	$9.91	To Order

Photo	Part No	Description	Price (each)	Stock
	AD33C311K66AB	Insulation, Bulkhead Upper Sound Rear Centre	$42.44	To Order

Photo	Part No	Description	Price (each)	Stock
	CG43C56158AC	Insulation, packing trim	$123.25	To Order

Photo	Part No	Description	Price (each)	Stock
	4G43C27746AC	Insulation, Rear Quarter Sound I/S Panel	$18.18	To Order

Photo	Part No	Description	Price (each)	Stock
	4G43111C73AE	Kit, Insulation Assembly, Sound Centre Floor Pan	$23.63	To Order

Photo	Part No	Description	Price (each)	Stock
	6G33114B32AB	Insulation Assembly, Front Floor Pan, RH	$5.70	To Order

Photo	Part No	Description	Price (each)	Stock
	6G33114B33AB	Insulation Assembly, Front Floor Pan, LH	$5.70	To Order

Photo	Part No	Description	Price (each)	Stock
	6G33114A42AB	Insulation Assembly, Front Floor Pan, RH	$5.70	To Order

Photo	Part No	Description	Price (each)	Stock
	6G33114A43AB	Insulation Assembly, Front Floor Pan, LH	$5.70	To Order

Photo	Part No	Description	Price (each)	Stock
	4G4311454BH	Insulation Assembly, Front Floor Pan Sound, RH, RHD	$65.08	To Order
	4G4311455BH	Insulation Assembly, Front Floor Pan Sound, RH, LHD	$66.12	To Order

Photo	Part No	Description	Price (each)	Stock
	4G4311454AH	Insulation Assembly, Front Floor Pan Sound, LH, RHD	$65.08	To Order
	4G4311455AH	Insulation Assembly, Front Floor Pan Sound, LH, LHD	$66.44	To Order

Photo	Part No	Description	Price (each)	Stock
	AD43534A0BB	Panel Assembly, Dash Lower Drivers Side	Enquire	To Order
	AD43534A0AA	Panel Assy, dash lower drivers side	$117.58	To Order

Photo	Part No	Description	Price (each)	Stock
	AD43534A1BB	Panel Assembly, Dash Lower Passengers Side	Enquire	To Order
	AD43534A1AC	Panel Assembly, Dash Lower Passengers Side	$132.32	To Order

Photo	Part No	Description	Price (each)	Stock
	6G3334983AB	Clip, Edge, NVH Retainer	$0.91	To Order

Photo	Part No	Description	Price (each)	Stock
	697564	Retainer, Push On	$0.10	To Order

Photo	Part No	Description	Price (each)	Stock
	697648	Fastener, Fir Tree	$0.84	To Order

Photo	Part No	Description	Price (each)	Stock
	4G433678AAAA	Fir Tree, Push On, 5mm Stud	$0.40	IN STOCK

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	6G33102B00BE	INS ENG HSG SND RHD	6G33102B00BE INS ENG HSG SND RHD RHD	$148.58	1
1	6G33102B00AE	INS ENG HSG SND LHD	6G33102B00AE INS ENG HSG SND LHD LHD	$156.03	1
2	8G4311446AB	Insulation, Sound, Floor Pan Gear Shift Cover	8G4311446AB Insulation, Sound, Floor Pan Gear Shift Cover	$39.17	1
3	8G43310A58AB	Insulation, Body Side Front, RH	8G43310A58AB Insulation, Body Side Front, RH	$55.39	1
4	8G43310A57AC	Insulation, Body Side Front, LH	8G43310A57AC Insulation, Body Side Front, LH	$55.39	1
5	4G4302292AB	Insulation, Sound, Cowl Side Panel Lower, RH	4G4302292AB Insulation, Sound, Cowl Side Panel Lower, RH	$13.95	1
6	4G4302293AB	Insulation, Sound, Cowl Side Panel Lower, LH	4G4302293AB Insulation, Sound, Cowl Side Panel Lower, LH	$13.95	1
7	8G43002K06AB	BAFFLE BODY FRONT PANEL RHD RH	8G43002K06AB BAFFLE BODY FRONT PANEL RHD RH RHD	$68.23	1
7	8G43002K05AA	BAFFLE BODY FRONT PANEL LHD RH	8G43002K05AA BAFFLE BODY FRONT PANEL LHD RH LHD	$86.79	1
8	8G43021A58AB	BAFFLE BODY FRONT PANEL RHD CENTRE	8G43021A58AB BAFFLE BODY FRONT PANEL RHD CENTRE RHD	$57.18	1
8	8G43021A59AA	Baffle, Body Front Panel, Centre	8G43021A59AA Baffle, Body Front Panel, Centre LHD	$37.81	1
9	8G43015A22AB	BAFFLE BODY FRONT PANEL RHD LH	8G43015A22AB BAFFLE BODY FRONT PANEL RHD LH RHD	$86.71	1
9	8G43015A23AA	BAFFLE BODY FRONT PANEL LHD LH	8G43015A23AA BAFFLE BODY FRONT PANEL LHD LH LHD	$68.23	1
10	4G437Z309AC	Insulation, Transmission Case Cover	4G437Z309AC Insulation, Transmission Case Cover	$79.28	1
11	4G4311204AA	Insulation, Sound, Rear Floor Pan, RH	4G4311204AA Insulation, Sound, Rear Floor Pan, RH	$12.09	1
12	8G4311205AA	Insulation, Sound, Rear Floor Pan, LH	8G4311205AA Insulation, Sound, Rear Floor Pan, LH	$20.63	1
13	4G43F310A26AA	Insulation, Sound, Quarter I/S Panel	4G43F310A26AA Insulation, Sound, Quarter I/S Panel	$17.32	2
14	4G4328112AB	NVH FOAM PAD ASY FNDR RH UPR	4G4328112AB NVH FOAM PAD ASY FNDR RH UPR	$29.51	2
15	AD33L27746AC	Insulation, quarter panel front side, RH	AD33L27746AC Insulation, quarter panel front side, RH	$20.73	1
16	AD33L27747AC	REAR 1/4 PANEL CABIN NVH LH	AD33L27747AC REAR 1/4 PANEL CABIN NVH LH	$13.62	1
17	4G4300152BG	RHD UNDER WIPER MOTOR NVH	4G4300152BG RHD UNDER WIPER MOTOR NVH RHD	$210.96	1
17	4G4300152AG	LHD UNDER WIPER MOTOR NVH	4G4300152AG LHD UNDER WIPER MOTOR NVH LHD	$210.96	1
18	4G43114B26AH	Insulation, Tunnel	4G43114B26AH Insulation, Tunnel	$105.26	1
19	4G4328110AB	NVH FOAM PAD ASY FNDR RH LWR	4G4328110AB NVH FOAM PAD ASY FNDR RH LWR	$21.41	1
20	4G4328111AB	NVH FOAM PAD ASY FNDR LH LWR	4G4328111AB NVH FOAM PAD ASY FNDR LH LWR	$21.41	1
21	4G4354571AF	Baffle, Floor, RH	4G4354571AF Baffle, Floor, RH	$24.85	1
22	4G4354572AE	Baffle, Floor, LH	4G4354572AE Baffle, Floor, LH	$24.85	1
23	CG4302139AA	Baffle, cowl, top in end	CG4302139AA Baffle, cowl, top in end	$15.66	1
24	8G4324562AB	Cavity Block, Front Seat Belt Spool	8G4324562AB Cavity Block, Front Seat Belt Spool	$53.57	2
25	6G33218061AB	NVH GEAR SHIFTER LOWER ASSEMBLY	6G33218061AB NVH GEAR SHIFTER LOWER ASSEMBLY	$18.16	1
26	6G33218060AB	NVH GEAR SHIFTER UPPER ASSEMBLY	6G33218060AB NVH GEAR SHIFTER UPPER ASSEMBLY	$11.34	1
27	6G3368066AC	NVH DASH FOAM UNDER SIDE CAVITY ASSY	6G3368066AC NVH DASH FOAM UNDER SIDE CAVITY ASSY	$46.18	1
28	8G4304564AA	NVH, Autobox Clutch Pedal	8G4304564AA NVH, Autobox Clutch Pedal	$0.91	1
29	8G435416AF	NVH TNL RR INR	8G435416AF NVH TNL RR INR	$64.00	1
30	6G3313082AA	NVH, Tunnel Top Arm Rest	6G3313082AA NVH, Tunnel Top Arm Rest	$19.74	1
31	8G3324926AB	PAD TUNNEL SIDE RIGHT HAND	8G3324926AB PAD TUNNEL SIDE RIGHT HAND	$27.03	1
32	8G3324927AB	PAD TUNNEL SIDE LEFT HAND	8G3324927AB PAD TUNNEL SIDE LEFT HAND	$27.01	1
33	8G4348182AB	Foam Pad, Under IP, RH	8G4348182AB Foam Pad, Under IP, RH	$21.51	1
34	8G4348181AB	Foam Pad, Under IP, LH	8G4348181AB Foam Pad, Under IP, LH	$21.51	1
35	8G43C56157AD	Sheet Damping SPT, Rear Parcel Shelf	8G43C56157AD Sheet Damping SPT, Rear Parcel Shelf	$46.18	1
36	8G438021AA	NVH REAR SPEAKER COVER	8G438021AA NVH REAR SPEAKER COVER	$11.91	1
37	9G43046B72AA	Insulation, I/ panel radio speaker opening, RH	9G43046B72AA Insulation, I/ panel radio speaker opening, RH	$2.21	2
38	9G43046B73AA	Insulation, I/ pnl radio speaker opening, LH	9G43046B73AA Insulation, I/ pnl radio speaker opening, LH	$2.21	1
39	9G43047B22AA	Insulation, I/ panel radio speaker opening, centre	9G43047B22AA Insulation, I/ panel radio speaker opening, centre	-	1	Enquire
40	CG43310A60AA	Insulation, Body Side Front Upper, RH	CG43310A60AA Insulation, Body Side Front Upper, RH	$15.06	1
41	CG43310A59AA	Insulation, Body Side Front Upper, LH	CG43310A59AA Insulation, Body Side Front Upper, LH	$15.06	1
42	CG43D1160AC	Insulation, rear quarter trim, RH	CG43D1160AC Insulation, rear quarter trim, RH	$10.21	1
43	CG43D1161AC	Insulation, Rear Quarter Trim, LH	CG43D1161AC Insulation, Rear Quarter Trim, LH	$12.73	1
44	AD33L27746AC	Insulation, quarter panel front side, RH	AD33L27746AC Insulation, quarter panel front side, RH	$20.73	1
45	AD33L27747AC	REAR 1/4 PANEL CABIN NVH LH	AD33L27747AC REAR 1/4 PANEL CABIN NVH LH	$13.62	1
46	AD33L31180AC	Insulation, rear bulkhead NVH, RH	AD33L31180AC Insulation, rear bulkhead NVH, RH	$15.29	1
47	AD33L31181AC	REAR BULKHEAD NVH LH	AD33L31181AC REAR BULKHEAD NVH LH	$9.49	1
48	CG43C311K70AA	NVH, Hood Hydraulic Pump	CG43C311K70AA NVH, Hood Hydraulic Pump	$3.10	2
49	CG43C27748AA	Insulation, Rear Quarter Sound Upper, RH	CG43C27748AA Insulation, Rear Quarter Sound Upper, RH	$9.91	2
50	AD33C311K66AB	Insulation, Bulkhead Upper Sound Rear Centre	AD33C311K66AB Insulation, Bulkhead Upper Sound Rear Centre	$42.44	1
51	CG43C56158AC	Insulation, packing trim	CG43C56158AC Insulation, packing trim	$123.25	1
52	4G43C27746AC	Insulation, Rear Quarter Sound I/S Panel	4G43C27746AC Insulation, Rear Quarter Sound I/S Panel	$18.18	2
53	4G43111C73AE	Kit, Insulation Assembly, Sound Centre Floor Pan	4G43111C73AE Kit, Insulation Assembly, Sound Centre Floor Pan	$23.63	1
54	6G33114B32AB	Insulation Assembly, Front Floor Pan, RH	6G33114B32AB Insulation Assembly, Front Floor Pan, RH	$5.70	1
55	6G33114B33AB	Insulation Assembly, Front Floor Pan, LH	6G33114B33AB Insulation Assembly, Front Floor Pan, LH	$5.70	1
56	6G33114A42AB	Insulation Assembly, Front Floor Pan, RH	6G33114A42AB Insulation Assembly, Front Floor Pan, RH	$5.70	1
57	6G33114A43AB	Insulation Assembly, Front Floor Pan, LH	6G33114A43AB Insulation Assembly, Front Floor Pan, LH	$5.70	1
58	4G4311454BH	Insulation Assembly, Front Floor Pan Sound, RH, RHD	4G4311454BH Insulation Assembly, Front Floor Pan Sound, RH, RHD RHD	$65.08	1
58	4G4311455BH	Insulation Assembly, Front Floor Pan Sound, RH, LHD	4G4311455BH Insulation Assembly, Front Floor Pan Sound, RH, LHD LHD	$66.12	1
59	4G4311454AH	Insulation Assembly, Front Floor Pan Sound, LH, RHD	4G4311454AH Insulation Assembly, Front Floor Pan Sound, LH, RHD RHD	$65.08	1
59	4G4311455AH	Insulation Assembly, Front Floor Pan Sound, LH, LHD	4G4311455AH Insulation Assembly, Front Floor Pan Sound, LH, LHD LHD	$66.44	1
60	AD43534A0BB	Panel Assembly, Dash Lower Drivers Side	AD43534A0BB Panel Assembly, Dash Lower Drivers Side RHD	-	1	Enquire
60	AD43534A0AA	Panel Assy, dash lower drivers side	AD43534A0AA Panel Assy, dash lower drivers side LHD	$117.58	1
61	AD43534A1BB	Panel Assembly, Dash Lower Passengers Side	AD43534A1BB Panel Assembly, Dash Lower Passengers Side RHD	-	1	Enquire
61	AD43534A1AC	Panel Assembly, Dash Lower Passengers Side	AD43534A1AC Panel Assembly, Dash Lower Passengers Side LHD	$132.32	1
62	6G3334983AB	Clip, Edge, NVH Retainer	6G3334983AB Clip, Edge, NVH Retainer	$0.91	2
63	697564	Retainer, Push On	697564 Retainer, Push On	$0.10	5
64	697648	Fastener, Fir Tree	697648 Fastener, Fir Tree	$0.84	10
65	4G433678AAAA	Fir Tree, Push On, 5mm Stud IN STOCK	4G433678AAAA Fir Tree, Push On, 5mm Stud IN STOCK	$0.40	4
