Underbody

Aston Martin DBS V12

Find Your Part

Aston Martin DBS V12 - Underbody

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
4G431610879S Panel assy, floor, RH $492.71 To Order
Photo Part No Description Price (each) Stock
FD3311141AC PANEL FLOOR LH Enquire To Order
Photo Part No Description Price (each) Stock
8G4313058AB TUNNEL REAR SIDE RH Enquire To Order
Photo Part No Description Price (each) Stock
9G4313059AB TUNNEL REAR SIDE LH $146.45 To Order
Photo Part No Description Price (each) Stock
8G4367340AA PANEL REAR SEAT HEEL BOARD LOWER RH $65.56 To Order
Photo Part No Description Price (each) Stock
8G4367341GA PANEL REAR SEAT HEEL BOARD LOWER LH $57.67 To Order
Photo Part No Description Price (each) Stock
8G4367342AA SEAT FINISHER REAR SEAT HEEL BOARD LOWER RH $55.28 To Order
Photo Part No Description Price (each) Stock
4G432010876 FRONT SUBFRAME UPRIGHT ASSY RH-DB9 $458.29 To Order
Photo Part No Description Price (each) Stock
4G432010877 FRONT SUBFRAME UPRIGHT ASSY-LH DB9 $458.29 To Order
Photo Part No Description Price (each) Stock
8G43434K10AA NUTPLATE FRONT END MOUNTING OUTER RH M12 $86.77 To Order
Photo Part No Description Price (each) Stock
8G43434K11AA NUTPLATE FRONT END MOUNTING OUTER LH M12 $21.04 To Order
Photo Part No Description Price (each) Stock
8G43390725AA NUT PLATE FRONT END MOUNTING INR M12 $31.84 To Order
Photo Part No Description Price (each) Stock
CG4310120AA MEMBER FLOOR SIDE FRONT $225.32 To Order
Photo Part No Description Price (each) Stock
6G33F001K28AB Bracket, tunnel upper inner Enquire To Order
Photo Part No Description Price (each) Stock
6G3310094AC Member, reinforce front side, RH Enquire To Order
Photo Part No Description Price (each) Stock
6G3310095AC REINF MEMBER FRONT SIDE LH $60.56 To Order
Photo Part No Description Price (each) Stock
6G33100A94AC Member, lower reinforce front side, RH Enquire To Order
Photo Part No Description Price (each) Stock
6G33100A95AC Member, lower reinforce front side, LH Enquire To Order
Photo Part No Description Price (each) Stock
6G3310276AF MEMBER FRONT SIDE RH $197.37 To Order
Photo Part No Description Price (each) Stock
6G3310277AG Member, front side, LH $197.37 To Order
Photo Part No Description Price (each) Stock
7G33113C18AC Panel, tunnel top front Enquire To Order
Photo Part No Description Price (each) Stock
8G4311160AD Panel, tunnel top Enquire To Order
Photo Part No Description Price (each) Stock
6G33F02599AB Member, body front cross Enquire To Order
Photo Part No Description Price (each) Stock
8G4358111K36GA Tunnel, reinforce rear, RH Enquire To Order
Photo Part No Description Price (each) Stock
8G4358111K37GA Tunnel, reinforce rear, LH Enquire To Order
Photo Part No Description Price (each) Stock
AG43L1898AA Sill assy, outer, RH Enquire To Order
AG43C1898AA ASSEMBLY SILL OUTER RH $1,208.00 To Order
Photo Part No Description Price (each) Stock
BG43L1899AA ASSEMBLY SILL OUTER LH $1,548.04 To Order
BG43C1899AA Assembly Sill Out LH $810.17 To Order
Photo Part No Description Price (each) Stock
9G3310772AC TUNNEL EXTRUSION RIGHT HAND $324.74 To Order
Photo Part No Description Price (each) Stock
9G3310773AC TUNNEL EXTRUSION LEFT HAND Enquire To Order
Photo Part No Description Price (each) Stock
6G3346768AA RIVNUT M6/M10L FLAT HEAD 1.5-3mm GRIP Zn/Ni $1.70 To Order
Photo Part No Description Price (each) Stock
6G3368676AC Rivet Structural 6.5 x 14, Blind $1.10 To Order
Photo Part No Description Price (each) Stock
6G3368885AB SELF PIERCING RIVET 5.0 x 6.0mm $0.11 To Order
Photo Part No Description Price (each) Stock
6G3333800AA Rivnut, 7/16UNF hex flange $1.45 To Order
Photo Part No Description Price (each) Stock
4G43N800631AA Rubber Plug, 11mm, Black Thermoplastic $1.29 To Order
Photo Part No Description Price (each) Stock
6G3337949AA DIA 4.8 X 13.9 BLIND RIVET $0.11 To Order
View All

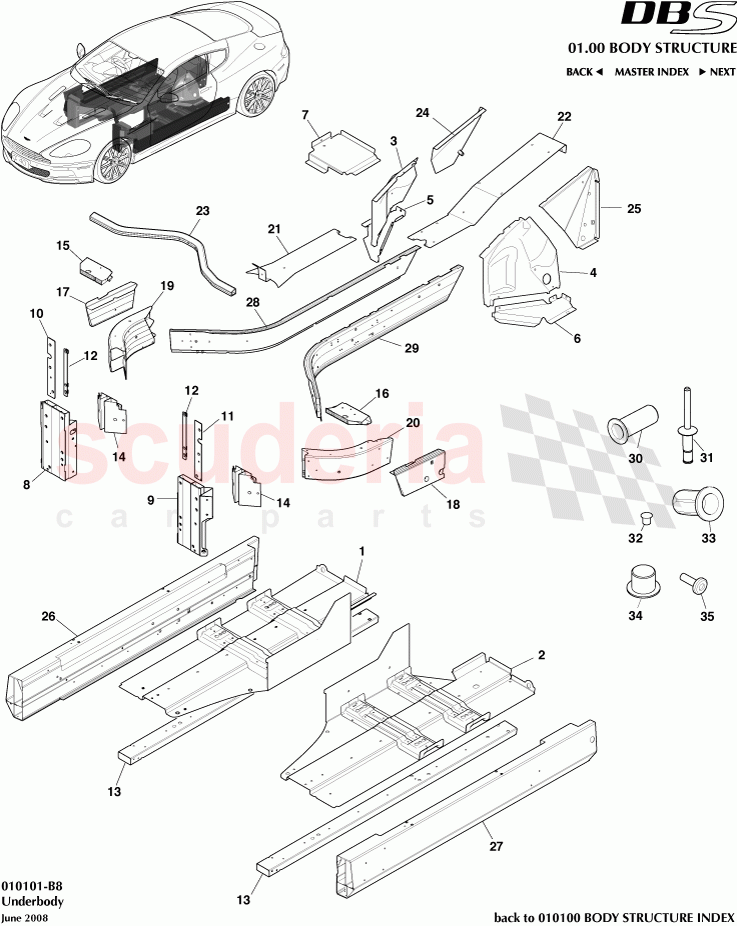

Underbody of Aston Martin Aston Martin DBS V12 Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 4G431610879S
Panel assy, floor, RH
VIN stamp required, Structural Cat. A only 		$492.71 1
2 FD3311141AC
PANEL FLOOR LH
Structural Cat. A only 		- 1 Enquire
3 8G4313058AB
TUNNEL REAR SIDE RH
Structural Cat. A only 		- 1 Enquire
4 9G4313059AB
TUNNEL REAR SIDE LH
Structural Cat. A only 		$146.45 1
5 8G4367340AA
PANEL REAR SEAT HEEL BOARD LOWER RH
Structural Cat. A only 		$65.56 1
6 8G4367341GA
PANEL REAR SEAT HEEL BOARD LOWER LH
Structural Cat. A only 		$57.67 1
7 8G4367342AA
SEAT FINISHER REAR SEAT HEEL BOARD LOWER RH
Structural Cat. A only 		$55.28 1
8 4G432010876
FRONT SUBFRAME UPRIGHT ASSY RH-DB9
Structural Cat. A only 		$458.29 1
9 4G432010877
FRONT SUBFRAME UPRIGHT ASSY-LH DB9
Structural Cat. A only 		$458.29 1
10 8G43434K10AA
NUTPLATE FRONT END MOUNTING OUTER RH M12
Structural Cat. A only 		$86.77 1
11 8G43434K11AA
NUTPLATE FRONT END MOUNTING OUTER LH M12
Structural Cat. A only 		$21.04 1
12 8G43390725AA
NUT PLATE FRONT END MOUNTING INR M12
Structural Cat. A only 		$31.84 2
13 CG4310120AA
MEMBER FLOOR SIDE FRONT
Structural Cat. A only 		$225.32 2
14 6G33F001K28AB
Bracket, tunnel upper inner
Structural Cat. A only 		- 2 Enquire
15 6G3310094AC
Member, reinforce front side, RH
Structural Cat. A only 		- 1 Enquire
16 6G3310095AC
REINF MEMBER FRONT SIDE LH
Structural Cat. A only 		$60.56 1
17 6G33100A94AC
Member, lower reinforce front side, RH
Structural Cat. A only 		- 1 Enquire
18 6G33100A95AC
Member, lower reinforce front side, LH
Structural Cat. A only 		- 1 Enquire
19 6G3310276AF
MEMBER FRONT SIDE RH
Structural Cat. A only 		$197.37 1
20 6G3310277AG
Member, front side, LH
Structural Cat. A only 		$197.37 1
21 7G33113C18AC
Panel, tunnel top front
Structural Cat. A only 		- 1 Enquire
22 8G4311160AD
Panel, tunnel top
Structural Cat. A only 		- 1 Enquire
23 6G33F02599AB
Member, body front cross
Structural Cat. A only 		- 1 Enquire
24 8G4358111K36GA
Tunnel, reinforce rear, RH
Structural Cat. A only 		- 1 Enquire
25 8G4358111K37GA
Tunnel, reinforce rear, LH
Structural Cat. A only 		- 1 Enquire
26 AG43L1898AA
Sill assy, outer, RH
VOLANTE, Structural Cat. A only 		- 1 Enquire
26 AG43C1898AA
ASSEMBLY SILL OUTER RH
COUPE, Structural Cat. A only 		$1,208.00 1
27 BG43L1899AA
ASSEMBLY SILL OUTER LH
VOLANTE, Structural Cat. A only 		$1,548.04 1
27 BG43C1899AA
Assembly Sill Out LH
COUPE, Structural Cat. A only 		$810.17 1
28 9G3310772AC
TUNNEL EXTRUSION RIGHT HAND
Structural Cat. A only 		$324.74 1
29 9G3310773AC
TUNNEL EXTRUSION LEFT HAND
Structural Cat. A only 		- 1 Enquire
30 6G3346768AA
RIVNUT M6/M10L FLAT HEAD 1.5-3mm GRIP Zn/Ni
Structural Cat. A only 		$1.70 1
31 6G3368676AC
Rivet Structural 6.5 x 14, Blind
Structural Cat. A only 		$1.10 -
32 6G3368885AB
SELF PIERCING RIVET 5.0 x 6.0mm
Structural Cat. A only 		$0.11 -
33 6G3333800AA
Rivnut, 7/16UNF hex flange
Structural Cat. A only 		$1.45 4
34 4G43N800631AA
Rubber Plug, 11mm, Black Thermoplastic
Structural Cat. A only 		$1.29 2
35 6G3337949AA
DIA 4.8 X 13.9 BLIND RIVET
Structural Cat. A only 		$0.11 6
