Body Side Quarter Trim And Ornamentation (Coupe)

Aston Martin DBS V12

Find Your Part

Aston Martin DBS V12 - Body Side Quarter Trim and Ornamentation (Coupe)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
8D3310609AF SILL APPLIQUE LH $1,487.27 To Order
8D3310608AF SILL APPLIQUE RH $1,487.27 To Order
8G435144AA Spacer, Sill Applique $2.44 IN STOCK
Photo Part No Description Price (each) Stock
8D3310631AB Tape, Rear quarter, LH $32.69 IN STOCK
8D3310630AB Tape, Rear quarter, RH $32.69 IN STOCK
Photo Part No Description Price (each) Stock
8D3310627AD SILL REAR TAPE LH $87.71 To Order
8D3310626AD SILL REAR TAPE RH $87.71 To Order
Photo Part No Description Price (each) Stock
4G4348954AA SILL ANTI STRIP LOCKNUT $0.46 IN STOCK
Photo Part No Description Price (each) Stock
701157PK Screw & Washer 4.2 x 16 (Pack of 10) $2.48 IN STOCK
Photo Part No Description Price (each) Stock
703156 Screw/Washer M6x18 Chrome Free $0.73 IN STOCK
Photo Part No Description Price (each) Stock
703749 Nut, M6, Hex Flange Head $0.63 IN STOCK
Photo Part No Description Price (each) Stock
701567 Screw, M6 x 16 $1.93 IN STOCK
Photo Part No Description Price (each) Stock
6G33FA0115ABPK Screw and Washer M6 x 20 Torx Head (Pack of 20) $19.24 IN STOCK
Photo Part No Description Price (each) Stock
6G430516BBA Screw, M6 x 16, Self Tapping $4.21 To Order
Photo Part No Description Price (each) Stock
8D3316586AA WHEEL ARCH LINER SUPPORT BRACKET $16.69 To Order
Photo Part No Description Price (each) Stock
7G4310609EAAPK Clip Spring M6 U Type 1.5-4.0 Black (Pack of 10) $9.13 IN STOCK
Photo Part No Description Price (each) Stock
8D33280B63AE SIDE STRAKE FENDER LH $386.24 To Order
8D33280B62AE SIDE STRAKE FENDER RH $386.24 To Order
Photo Part No Description Price (each) Stock
8D33018K29AC SIDE STRAKE DOOR LH $353.26 To Order
8D33018K28AC SIDE STRAKE DOOR RH $353.26 To Order
Photo Part No Description Price (each) Stock
703165 NUT M5 HEX FLG PLAS CHROME FREE $0.19 IN STOCK
Photo Part No Description Price (each) Stock
BD33280B84AA MESH SIDE STRAKE LH BLACK $268.67 To Order
BD33280B83AA MESH SIDE STRAKE RH BLACK $268.67 To Order
8D33280B84AC MESH SIDE STRAKE LH $136.73 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
702944 Nut, M6, Hex Flanged Head $0.93 IN STOCK
Photo Part No Description Price (each) Stock
4G43C02565BD Retainer Assy, Front Body W/Strip Cover Primary, LH $31.33 To Order
4G43C02564BD Retainer Assy, Front Body W/Strip Cover Primary, RH $28.64 IN STOCK
Photo Part No Description Price (each) Stock
4G43C02565AC RETAINER ASSY FRONT BODY PILLAR W/STRIP PRIMARY LH $42.58 To Order
4G43C02564AC RETAINER ASSY FRONT BODY PILLAR W/STRIP PRIMARY RH $53.16 To Order
Photo Part No Description Price (each) Stock
702217 Screw, M5 x 2.5 x 20, Internal Hex Dome Head $0.35 IN STOCK
Photo Part No Description Price (each) Stock
700235 SCREW 4.2x905 TAP $4.21 To Order
Photo Part No Description Price (each) Stock
4G43C47775BA ADHESIVE FOAM STRIP ROOF EDGE LOWER $3.92 To Order
Photo Part No Description Price (each) Stock
4G43519A36CF ROOF FINISHER SIDE $1,823.85 To Order
4G43519A37CF ROOF FINISHER SIDE $1,719.20 To Order
Photo Part No Description Price (each) Stock
7G43143002AA GROMMET NUT 4.2 $0.73 To Order
Photo Part No Description Price (each) Stock
8G434999AA Washer, Load Spreading $0.49 To Order
Photo Part No Description Price (each) Stock
6G3351756AAPK Screw M5 x 13 Pan Head Pack (10) $4.19 IN STOCK
Photo Part No Description Price (each) Stock
701656 RETAINER $8.47 IN STOCK
Photo Part No Description Price (each) Stock
4G43F20563BA Weatherstrip, Front Door Outer, LH $701.35 To Order
4G43F20562BA Weatherstrip, Front Door Outer, RH $701.35 To Order
View All

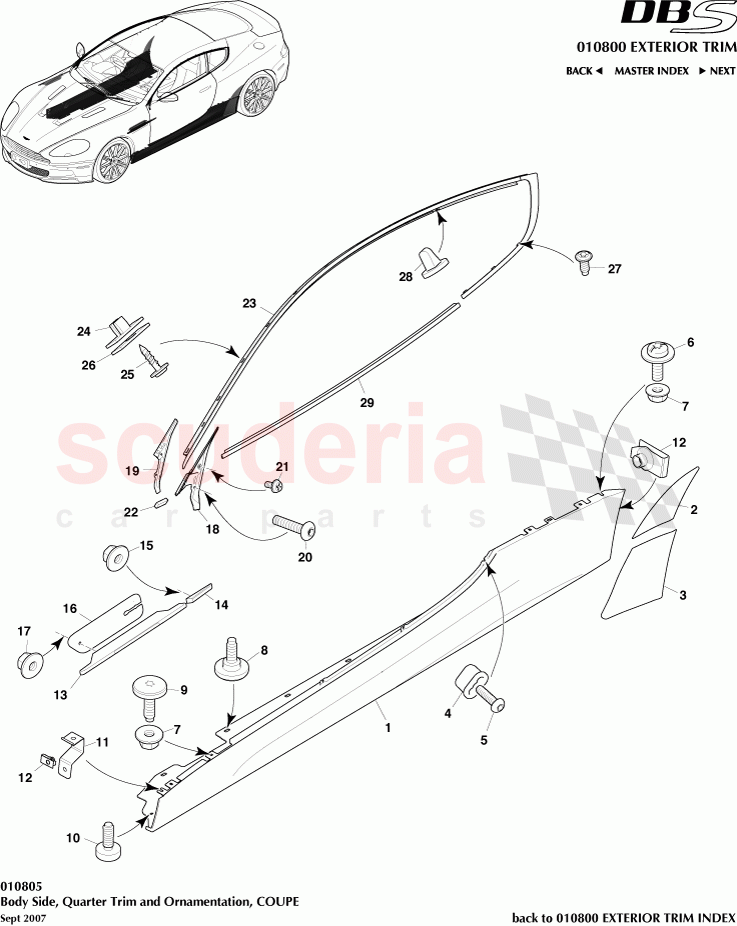

Body Side Quarter Trim and Ornamentation (Coupe) of Aston Martin Aston Martin DBS V12 Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 8D3310609AF
SILL APPLIQUE LH 		$1,487.27 1
1 8D3310608AF
SILL APPLIQUE RH 		$1,487.27 1
1 8G435144AA
Spacer, Sill Applique
IN STOCK 		$2.44 14
2 8D3310631AB
Tape, Rear quarter, LH
IN STOCK 		$32.69 1
2 8D3310630AB
Tape, Rear quarter, RH
IN STOCK 		$32.69 1
3 8D3310627AD
SILL REAR TAPE LH 		$87.71 1
3 8D3310626AD
SILL REAR TAPE RH 		$87.71 1
4 4G4348954AA
SILL ANTI STRIP LOCKNUT
IN STOCK 		$0.46 1
5 701157PK
Screw & Washer 4.2 x 16 (Pack of 10)
IN STOCK 		$2.48 6
6 703156
Screw/Washer M6x18 Chrome Free
IN STOCK 		$0.73 2
7 703749
Nut, M6, Hex Flange Head
IN STOCK 		$0.63 4
8 701567
Screw, M6 x 16
IN STOCK 		$1.93 14
9 6G33FA0115ABPK
Screw and Washer M6 x 20 Torx Head (Pack of 20)
IN STOCK 		$19.24 4
10 6G430516BBA
Screw, M6 x 16, Self Tapping 		$4.21 14
11 8D3316586AA
WHEEL ARCH LINER SUPPORT BRACKET 		$16.69 2
12 7G4310609EAAPK
Clip Spring M6 U Type 1.5-4.0 Black (Pack of 10)
IN STOCK 		$9.13 2
13 8D33280B63AE
SIDE STRAKE FENDER LH 		$386.24 1
13 8D33280B62AE
SIDE STRAKE FENDER RH 		$386.24 1
14 8D33018K29AC
SIDE STRAKE DOOR LH 		$353.26 1
14 8D33018K28AC
SIDE STRAKE DOOR RH 		$353.26 1
15 703165
NUT M5 HEX FLG PLAS CHROME FREE
IN STOCK 		$0.19 4
16 BD33280B84AA
MESH SIDE STRAKE LH BLACK
Carbon Edition 		$268.67 1
16 BD33280B83AA
MESH SIDE STRAKE RH BLACK
Carbon Edition 		$268.67 1
16 8D33280B84AC
MESH SIDE STRAKE LH 		$136.73 1
16 8D33280B83AC
MESH SIDE STRAKE RH 		$136.73 1
17 702944
Nut, M6, Hex Flanged Head
IN STOCK 		$0.93 4
18 4G43C02565BD
Retainer Assy, Front Body W/Strip Cover Primary, LH 		$31.33 1
18 4G43C02564BD
Retainer Assy, Front Body W/Strip Cover Primary, RH
IN STOCK 		$28.64 1
19 4G43C02565AC
RETAINER ASSY FRONT BODY PILLAR W/STRIP PRIMARY LH 		$42.58 1
19 4G43C02564AC
RETAINER ASSY FRONT BODY PILLAR W/STRIP PRIMARY RH 		$53.16 1
20 702217
Screw, M5 x 2.5 x 20, Internal Hex Dome Head
IN STOCK 		$0.35 2
21 700235
SCREW 4.2x905 TAP 		$4.21 2
22 4G43C47775BA
ADHESIVE FOAM STRIP ROOF EDGE LOWER 		$3.92 2
23 4G43519A36CF
ROOF FINISHER SIDE 		$1,823.85 1
23 4G43519A37CF
ROOF FINISHER SIDE 		$1,719.20 1
24 7G43143002AA
GROMMET NUT 4.2 		$0.73 26
26 8G434999AA
Washer, Load Spreading 		$0.49 16
27 6G3351756AAPK
Screw M5 x 13 Pan Head Pack (10)
IN STOCK 		$4.19 8
28 701656
RETAINER
IN STOCK 		$8.47 36
29 4G43F20563BA
Weatherstrip, Front Door Outer, LH 		$701.35 1
29 4G43F20562BA
Weatherstrip, Front Door Outer, RH 		$701.35 1
