Aston Martin DBS V12 - Body Rear End (Coupe)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
GG4347124AA PNL FLOOR TRUNK $454.46 To Order
Photo Part No Description Price (each) Stock
9G4317F034BA Absorber, Rear Bumper, RH $263.80 To Order
Photo Part No Description Price (each) Stock
9G4317F035BA Absorber, Rear Bumper, LH $263.80 To Order
Photo Part No Description Price (each) Stock
700115 SCREW M8x25 HEX FLG $3.29 To Order
Photo Part No Description Price (each) Stock
8G43C40334GA Panel, Upper Back, Centre $140.45 To Order
Photo Part No Description Price (each) Stock
8G43C10514AC Panel, Rear Floor Outer Side, RH $140.86 To Order
Photo Part No Description Price (each) Stock
8G43C10515AA Panel, Rear Floor Outer Side, LH $140.86 To Order
Photo Part No Description Price (each) Stock
8G43C279A54GB PANEL QUARTER WHEEL HOUSE INNER REAR RH $219.26 To Order
Photo Part No Description Price (each) Stock
8G43C279A55GA PANEL QUARTER WHEEL HOUSE INNER REAR LH $219.26 To Order
Photo Part No Description Price (each) Stock
8G43C278A71GB Panel, fuel tank compartment, upper $247.29 To Order
Photo Part No Description Price (each) Stock
6G3380997AA Nutplate, M12, Rear Damper Mounting, Front $6.11 To Order
Photo Part No Description Price (each) Stock
6G3337949AA DIA 4.8 X 13.9 BLIND RIVET $0.11 To Order
Photo Part No Description Price (each) Stock
GO8G43C513B96AA Reinf, roof side rail, lower RH Enquire To Order
Photo Part No Description Price (each) Stock
GO8G43C513B97AA Reinf, roof side rail, lower LH Enquire To Order
Photo Part No Description Price (each) Stock
8G43C10282AC MEMBER FLOOR SIDE UPPER RH $183.80 To Order
Photo Part No Description Price (each) Stock
8G43C10283AC Member floor side upper, LH Enquire To Order
Photo Part No Description Price (each) Stock
8G4310456AC Member, rear floor side Enquire To Order
Photo Part No Description Price (each) Stock
9G4310457AA Member rear floor side, LH $380.41 To Order
Photo Part No Description Price (each) Stock
GOAG43101C84AA BRACKER SIDE MEMBER REAR RIGHT HAND $161.42 To Order
Photo Part No Description Price (each) Stock
GOAG43101C85AA BRACKET SIDE MEMBER REAR LH $161.42 To Order
Photo Part No Description Price (each) Stock
8G43334177AA Nutplate, M12, Rear Damper Mounting, Rear $13.62 To Order
Photo Part No Description Price (each) Stock
PO6G335A355AB Support, sub frame rear, RH Enquire To Order
Photo Part No Description Price (each) Stock
PO6G335A356AB Support, sub frame rear, LH Enquire To Order
Photo Part No Description Price (each) Stock
8G4340338AB Reinforced lower back centre panel $306.64 To Order
Photo Part No Description Price (each) Stock
6G3356316AA RIVNUT M8 FLAT HEADED KNURLED 2-3.5 mm GRIP Zn/Ni $0.61 To Order
Photo Part No Description Price (each) Stock
6G33375732AB Screw, 5.5 x 19, Self Drill, Hex Flange head $0.34 To Order
View All

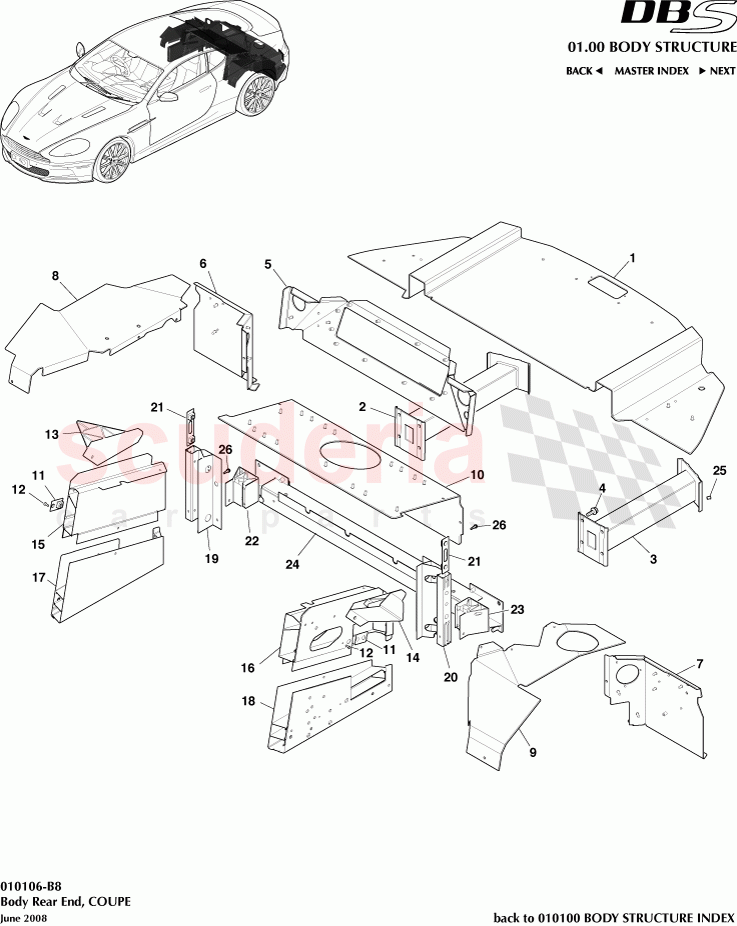

Body Rear End (Coupe) of Aston Martin Aston Martin DBS V12 Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 GG4347124AA
PNL FLOOR TRUNK
Structural Cat. A only 		$454.46 1
2 9G4317F034BA
Absorber, Rear Bumper, RH
Structural Cat. A only 		$263.80 1
3 9G4317F035BA
Absorber, Rear Bumper, LH
Structural Cat. A only 		$263.80 1
4 700115
SCREW M8x25 HEX FLG 		$3.29 8
5 8G43C40334GA
Panel, Upper Back, Centre
Structural Cat. A only 		$140.45 1
6 8G43C10514AC
Panel, Rear Floor Outer Side, RH
Structural Cat. A only 		$140.86 1
7 8G43C10515AA
Panel, Rear Floor Outer Side, LH
Structural Cat. A only 		$140.86 1
8 8G43C279A54GB
PANEL QUARTER WHEEL HOUSE INNER REAR RH
Structural Cat. A only 		$219.26 1
9 8G43C279A55GA
PANEL QUARTER WHEEL HOUSE INNER REAR LH
Structural Cat. A only 		$219.26 1
10 8G43C278A71GB
Panel, fuel tank compartment, upper
Structural Cat. A only 		$247.29 1
11 6G3380997AA
Nutplate, M12, Rear Damper Mounting, Front
Structural Cat. A only 		$6.11 2
12 6G3337949AA
DIA 4.8 X 13.9 BLIND RIVET 		$0.11 2
13 GO8G43C513B96AA
Reinf, roof side rail, lower RH
Structural Cat. A only 		- 1 Enquire
14 GO8G43C513B97AA
Reinf, roof side rail, lower LH
Structural Cat. A only 		- 1 Enquire
15 8G43C10282AC
MEMBER FLOOR SIDE UPPER RH
Structural Cat. A only 		$183.80 1
16 8G43C10283AC
Member floor side upper, LH
Structural Cat. A only 		- 1 Enquire
17 8G4310456AC
Member, rear floor side
Structural Cat. A only 		- 1 Enquire
18 9G4310457AA
Member rear floor side, LH
Structural Cat. A only 		$380.41 1
19 GOAG43101C84AA
BRACKER SIDE MEMBER REAR RIGHT HAND
Structural Cat. A only 		$161.42 1
20 GOAG43101C85AA
BRACKET SIDE MEMBER REAR LH
Structural Cat. A only 		$161.42 1
21 8G43334177AA
Nutplate, M12, Rear Damper Mounting, Rear
Structural Cat. A only 		$13.62 2
22 PO6G335A355AB
Support, sub frame rear, RH
Structural Cat. A only 		- 1 Enquire
23 PO6G335A356AB
Support, sub frame rear, LH
Structural Cat. A only 		- 1 Enquire
24 8G4340338AB
Reinforced lower back centre panel
Structrual Cat. A only 		$306.64 1
25 6G3356316AA
RIVNUT M8 FLAT HEADED KNURLED 2-3.5 mm GRIP Zn/Ni 		$0.61 4
26 6G33375732AB
Screw, 5.5 x 19, Self Drill, Hex Flange head 		$0.34 4
