Body Dash And Cowl (Coupe)

Aston Martin DBS V12

Find Your Part

Aston Martin DBS V12 - Body Dash and Cowl (Coupe)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
4G43C03014BR Frame Assembly, Windshield, RHD Enquire To Order
EG33C03014AB FR ASY W/SHIELD $2,422.87 To Order
Photo Part No Description Price (each) Stock
6G33F02526AB Reinforced front body pillar, RH Enquire To Order
Photo Part No Description Price (each) Stock
6G33F02527AB Reinforced front body pillar, LH Enquire To Order
Photo Part No Description Price (each) Stock
8G43C513A07AB REINFORCED ROOF SIDE RAIL RH $280.93 To Order
Photo Part No Description Price (each) Stock
8G43C513A08AA Reinf roof side rail, LH Enquire To Order
Photo Part No Description Price (each) Stock
9G4390907AA Barrel Nut, M6 $0.90 To Order
Photo Part No Description Price (each) Stock
8G43C42220AB Frame, back window, upper Enquire To Order
Photo Part No Description Price (each) Stock
AG3310414AA MEMBER FRONT CS AT DH $82.61 To Order
Photo Part No Description Price (each) Stock
9G33F01760AA Panel, dash upper, RH, LHD Enquire To Order
9G33F01760BA Panel, dash upper, RH, RHD Enquire To Order
Photo Part No Description Price (each) Stock
9G33F01761AA Panel, dash upper, LH, LHD Enquire To Order
9G33F01761BA Panel, dash upper, LH, RHD Enquire To Order
Photo Part No Description Price (each) Stock
BG33F01612AA Panel, Dash Side, RH $744.00 To Order
Photo Part No Description Price (each) Stock
BG33F01613AA Panel, Dash Side, LH $744.00 To Order
Photo Part No Description Price (each) Stock
8G4316430AA REINF HOOD STRIKER PLATE RH $55.55 To Order
Photo Part No Description Price (each) Stock
8G4316431AA REINF HOOD STRIKER PLATE LH $86.18 To Order
Photo Part No Description Price (each) Stock
6G3356316AA RIVNUT M8 FLAT HEADED KNURLED 2-3.5 mm GRIP Zn/Ni $0.60 To Order
Photo Part No Description Price (each) Stock
6G3346768AA RIVNUT M6/M10L FLAT HEAD 1.5-3mm GRIP Zn/Ni $1.71 To Order
Photo Part No Description Price (each) Stock
8G43199901AA Nutplate, M6 Headlamp Bracket $5.43 To Order
Photo Part No Description Price (each) Stock
6G3337949AA DIA 4.8 X 13.9 BLIND RIVET $0.11 To Order
Photo Part No Description Price (each) Stock
4G432010882 SUPPORT ARM ASSY- FRT WING LH-DB9 $1,038.24 To Order
Photo Part No Description Price (each) Stock
4G432010881 SUPPORT ARM ASSY- FRT WING RH-DB9 $1,038.24 To Order
Photo Part No Description Price (each) Stock
6G3317F790AC Nutplate, M10 Enquire To Order
Photo Part No Description Price (each) Stock
6G33C18178AB Bracket, Gas Damper Mounting $6.90 To Order
Photo Part No Description Price (each) Stock
GO8G4316A681AC REINF HOOD HNGE BODY $51.92 To Order
Photo Part No Description Price (each) Stock
GO8G4316A682AB RH REINF HOOD HINGE ON BODY LH $39.63 To Order
Photo Part No Description Price (each) Stock
700607 Screw Hex Flange Head M6 x 16mm $0.19 To Order
Photo Part No Description Price (each) Stock
GOAG33F02660AB Pillar, Front Body Lower Front, RH $160.44 To Order
Photo Part No Description Price (each) Stock
GOAG33F02661AB Pillar, Front Body Lower Front, LH $148.32 To Order
Photo Part No Description Price (each) Stock
6G3371490AA Nutplate, A Post Hinge, Upper, RH $8.64 To Order
Photo Part No Description Price (each) Stock
6G3315110AB Nutplate M8, ??post hinge, lower, RH $11.90 To Order
Photo Part No Description Price (each) Stock
6G3394545AA Nutplate, A Post Hinge, Upper, LH $8.49 To Order
Photo Part No Description Price (each) Stock
6G3315111AA Nutplate, A Post Hinge, Upper, LH $7.78 To Order
Photo Part No Description Price (each) Stock
GOAG33F02662AB Extrusion, Front Body Pillar Lower, RH $103.83 To Order
Photo Part No Description Price (each) Stock
GOAG33F02663AB Extrusion, Front Body Pillar Lower, LH $83.07 To Order
Photo Part No Description Price (each) Stock
6G33486226AA Nutplate, M8, IP beam $8.64 To Order
View All

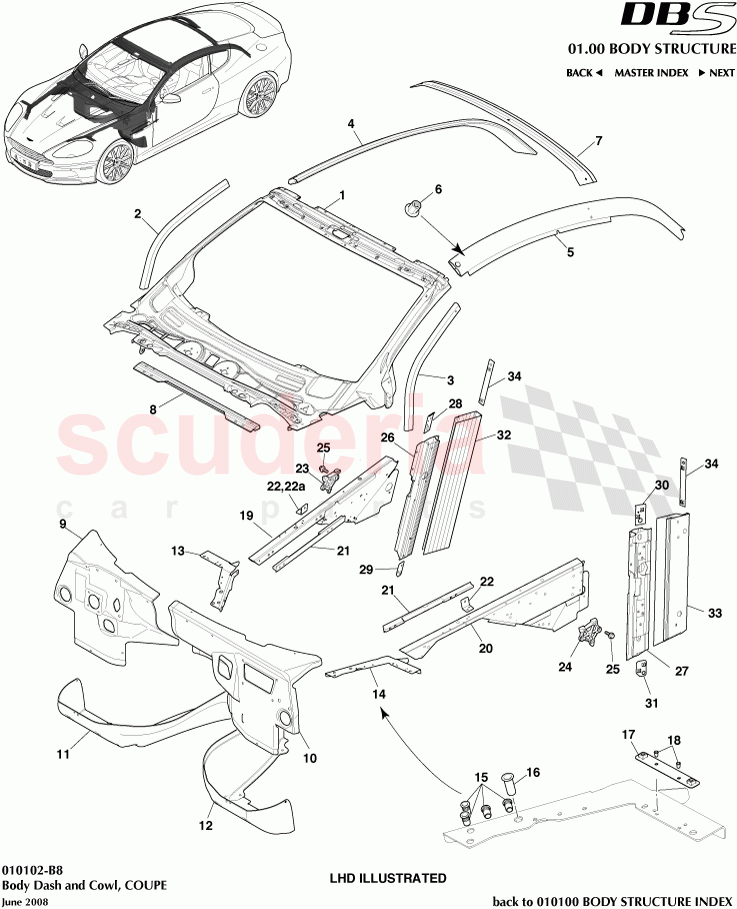

Body Dash and Cowl (Coupe) of Aston Martin Aston Martin DBS V12 Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 4G43C03014BR
Frame Assembly, Windshield, RHD
Structural Cat. A only 		- 1 Enquire
1 EG33C03014AB
FR ASY W/SHIELD
Structural Cat. A only 		$2,422.87 1
2 6G33F02526AB
Reinforced front body pillar, RH
Structural Cat. A only 		- 1 Enquire
3 6G33F02527AB
Reinforced front body pillar, LH
Structural Cat. A only 		- 1 Enquire
4 8G43C513A07AB
REINFORCED ROOF SIDE RAIL RH
Structural Cat. A only 		$280.93 1
5 8G43C513A08AA
Reinf roof side rail, LH
Structural Cat. A only 		- 1 Enquire
6 9G4390907AA
Barrel Nut, M6
1 per rail, Structural Cat. A only 		$0.90 2
7 8G43C42220AB
Frame, back window, upper
Structural Cat. A only 		- 1 Enquire
8 AG3310414AA
MEMBER FRONT CS AT DH
Structural Cat. A only 		$82.61 1
9 9G33F01760AA
Panel, dash upper, RH, LHD
Structural Cat. A only 		- 1 Enquire
9 9G33F01760BA
Panel, dash upper, RH, RHD
Structural Cat. A only 		- 1 Enquire
10 9G33F01761AA
Panel, dash upper, LH, LHD
Structural Cat. A only 		- 1 Enquire
10 9G33F01761BA
Panel, dash upper, LH, RHD
Structural Cat. A only 		- 1 Enquire
11 BG33F01612AA
Panel, Dash Side, RH
Structural Cat. A only 		$744.00 1
12 BG33F01613AA
Panel, Dash Side, LH
Structural Cat. A only 		$744.00 1
13 8G4316430AA
REINF HOOD STRIKER PLATE RH 		$55.55 1
14 8G4316431AA
REINF HOOD STRIKER PLATE LH 		$86.18 1
15 6G3356316AA
RIVNUT M8 FLAT HEADED KNURLED 2-3.5 mm GRIP Zn/Ni
4 per striker plate, Structural Cat. A only 		$0.60 8
16 6G3346768AA
RIVNUT M6/M10L FLAT HEAD 1.5-3mm GRIP Zn/Ni
1 per striker plate 		$1.71 2
17 8G43199901AA
Nutplate, M6 Headlamp Bracket
Structural Cat. A only 		$5.43 2
18 6G3337949AA
DIA 4.8 X 13.9 BLIND RIVET
2 per nut plate, Structural Cat. A only 		$0.11 4
19 4G432010882
SUPPORT ARM ASSY- FRT WING LH-DB9
Structural Cat. A only 		$1,038.24 1
20 4G432010881
SUPPORT ARM ASSY- FRT WING RH-DB9
Structural Cat. A only 		$1,038.24 1
21 6G3317F790AC
Nutplate, M10
Structural Cat. A only 		- 2 Enquire
22 6G33C18178AB
Bracket, Gas Damper Mounting
Structural Cat. A only 		$6.90 2
23 GO8G4316A681AC
REINF HOOD HNGE BODY
Structural Cat. A only 		$51.92 1
24 GO8G4316A682AB
RH REINF HOOD HINGE ON BODY LH
Structural Cat. A only 		$39.63 1
25 700607
Screw Hex Flange Head M6 x 16mm
3 reinf hood hinge, Structural Cat. A only 		$0.19 6
26 GOAG33F02660AB
Pillar, Front Body Lower Front, RH
Structural Cat. A only 		$160.44 1
27 GOAG33F02661AB
Pillar, Front Body Lower Front, LH
Structural Cat. A only 		$148.32 1
28 6G3371490AA
Nutplate, A Post Hinge, Upper, RH
Structural Cat. A only 		$8.64 1
29 6G3315110AB
Nutplate M8, ??post hinge, lower, RH
Structural Cat. A only 		$11.90 1
30 6G3394545AA
Nutplate, A Post Hinge, Upper, LH
Structural Cat. A only 		$8.49 1
31 6G3315111AA
Nutplate, A Post Hinge, Upper, LH
Structural Cat. A only 		$7.78 1
32 GOAG33F02662AB
Extrusion, Front Body Pillar Lower, RH
Structural Cat. A only 		$103.83 1
33 GOAG33F02663AB
Extrusion, Front Body Pillar Lower, LH
Structural Cat. A only 		$83.07 1
34 6G33486226AA
Nutplate, M8, IP beam
Structural Cat. A only 		$8.64 2
