Aston Martin DBS V12 - EV Body Structure (Volante) (Page 1)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
9G4311262BA Reinforcement Assembly, Floor Pan Front $661.60 To Order
Photo Part No Description Price (each) Stock
703268 Screw and Washer, M8 x 21 $15.38 IN STOCK
Photo Part No Description Price (each) Stock
6G33FA0115ABPK Screw and Washer M6 x 20 Torx Head (Pack of 20) $19.16 IN STOCK
Photo Part No Description Price (each) Stock
4G43111K36AF TUNNEL REINFORCEMENT FRONT $125.28 To Order
Photo Part No Description Price (each) Stock
703172PK Screw M8 x 25 Pan Head (Pack of 10) $5.22 IN STOCK
Photo Part No Description Price (each) Stock
4G431660AA TUNNEL REINFORCEMENT FRONT SPACER $22.74 To Order
Photo Part No Description Price (each) Stock
4G43061B70AA CAP DUST COVER $0.65 To Order
Photo Part No Description Price (each) Stock
4G43111K37AE Tunnel Reinforcement, Centre $78.04 To Order
Photo Part No Description Price (each) Stock
FD33L17C857AB SHIELD-RR BMPR OPG $2,553.91 To Order
Photo Part No Description Price (each) Stock
703268 Screw and Washer, M8 x 21 $15.38 IN STOCK
Photo Part No Description Price (each) Stock
702210PK BOLT M10 X 30 HEXAGON HEAD FLANGED (PACK OF 10) $21.39 IN STOCK
Photo Part No Description Price (each) Stock
9G4344210AA SPOILER ASSY REAR $29.60 To Order
Photo Part No Description Price (each) Stock
6G33FA0115ABPK Screw and Washer M6 x 20 Torx Head (Pack of 20) $19.16 IN STOCK
Photo Part No Description Price (each) Stock
7G4310609EAAPK Clip Spring M6 U Type 1.5-4.0 Black (Pack of 10) $9.09 IN STOCK
Photo Part No Description Price (each) Stock
4G435340AJ BRACKET ECU MOUNTING RH $173.41 To Order
Photo Part No Description Price (each) Stock
4G435341AJ BRACKET ECU MOUNTING LH $173.41 To Order
Photo Part No Description Price (each) Stock
703203 Screw M6 x 20 Heex Flange 8 Chrome Free $0.19 IN STOCK
Photo Part No Description Price (each) Stock
AD43V17N800AC BUMPER FRONT CRASH CAN $1,975.81 To Order
Photo Part No Description Price (each) Stock
704495 Screw, M8 x 35, Hex Flange Head $11.16 IN STOCK
Photo Part No Description Price (each) Stock
8D3313068AB PNL HD/LP MTNG RH $827.48 To Order
Photo Part No Description Price (each) Stock
8D3313069AB PNL HD/LP MNTG LH $827.48 To Order
Photo Part No Description Price (each) Stock
4G436367912AD NUT PLT ASY FRT CRSH $11.49 To Order
Photo Part No Description Price (each) Stock
4G43043B19AC TUBE PASSENGER AIR BAG INITIATPR RH $35.03 To Order
Photo Part No Description Price (each) Stock
4G43043B20AC TUBE PASSENGER AIR BAG INITIATOR LH $64.63 To Order
Photo Part No Description Price (each) Stock
4G43111C61AE Panel, Dummy Floor Front, RHD $398.22 To Order
4G43111C60AD PANEL DUMMY FLOOR FRONT $398.22 To Order
Photo Part No Description Price (each) Stock
704701 Screw, M6 x 20, Socket Head Button $3.45 To Order
Photo Part No Description Price (each) Stock
703169 NUT - M6 HEX FLANGE CHROME FREE $0.52 IN STOCK
Photo Part No Description Price (each) Stock
4G43111B48AB Panel, Dummy Floor Cover, Front $43.26 To Order
Photo Part No Description Price (each) Stock
704701 Screw, M6 x 20, Socket Head Button $3.45 To Order
Photo Part No Description Price (each) Stock
8D33108A86AA BRACKET FRONT CROSS BRACE RH $118.47 To Order
Photo Part No Description Price (each) Stock
8D33108A87AA BRACKET FRONT CROSS BRACE LH $118.47 To Order
Photo Part No Description Price (each) Stock
4G43108A75AA BRA FRT CS $123.65 To Order
Photo Part No Description Price (each) Stock
702209 Bolt, M10 x 25, Torque Drive $1.25 IN STOCK
Photo Part No Description Price (each) Stock
4G432011136 REINF BDY FRT C/BARS $123.16 To Order
Photo Part No Description Price (each) Stock
4G432011136 REINF BDY FRT C/BARS $123.16 To Order
Photo Part No Description Price (each) Stock
6G33ALR6871AA Screw, M10 x 25 Enquire To Order
Photo Part No Description Price (each) Stock
4G4367518AE PANEL REAR SEAT HEEL BOARD RH $200.18 To Order
Photo Part No Description Price (each) Stock
703169 NUT - M6 HEX FLANGE CHROME FREE $0.52 IN STOCK
Photo Part No Description Price (each) Stock
7G4310N660AC PANEL BATTERY COVER RH $472.29 To Order
Photo Part No Description Price (each) Stock
8D33199901AA NUTPLATE HEAD LAMP BRACKET $14.59 To Order
Photo Part No Description Price (each) Stock
9G4328114AA Baffle, Quarter Panel At Wheel, Housing Upper, RH $38.41 To Order
View All

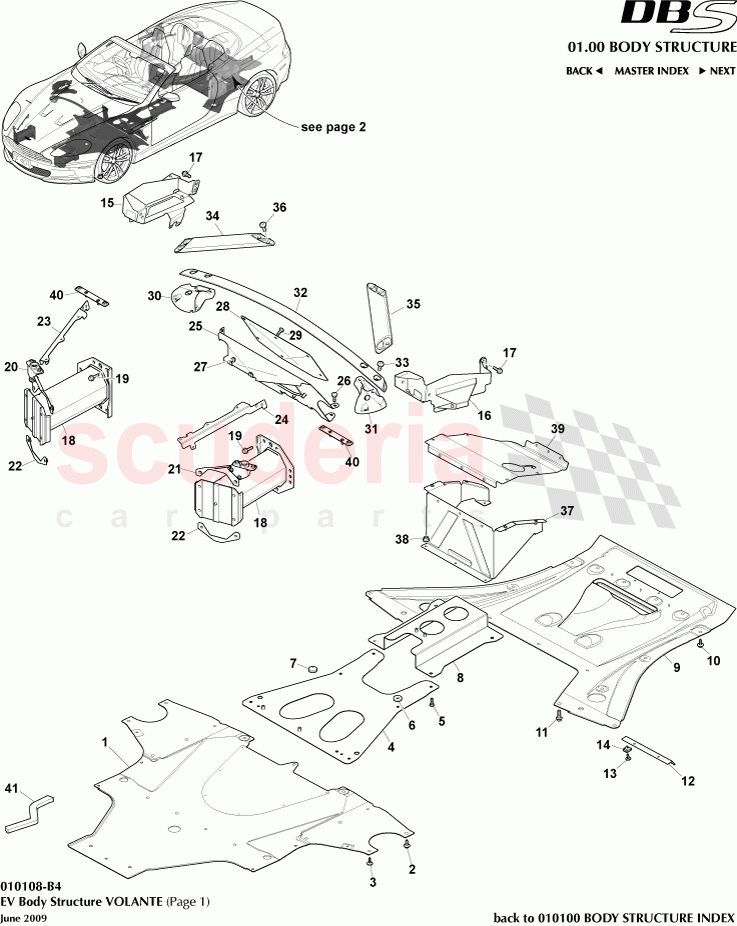

EV Body Structure (Volante) (Page 1) of Aston Martin Aston Martin DBS V12 Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 9G4311262BA
Reinforcement Assembly, Floor Pan Front 		$661.60 1
2 703268
Screw and Washer, M8 x 21
IN STOCK 		$15.38 14
3 6G33FA0115ABPK
Screw and Washer M6 x 20 Torx Head (Pack of 20)
IN STOCK 		$19.16 2
4 4G43111K36AF
TUNNEL REINFORCEMENT FRONT 		$125.28 1
5 703172PK
Screw M8 x 25 Pan Head (Pack of 10)
IN STOCK 		$5.22 8
6 4G431660AA
TUNNEL REINFORCEMENT FRONT SPACER 		$22.74 4
7 4G43061B70AA
CAP DUST COVER 		$0.65 2
8 4G43111K37AE
Tunnel Reinforcement, Centre 		$78.04 1
9 FD33L17C857AB
SHIELD-RR BMPR OPG 		$2,553.91 1
10 703268
Screw and Washer, M8 x 21
IN STOCK 		$15.38 17
11 702210PK
BOLT M10 X 30 HEXAGON HEAD FLANGED (PACK OF 10)
IN STOCK 		$21.39 2
12 9G4344210AA
SPOILER ASSY REAR 		$29.60 1
13 6G33FA0115ABPK
Screw and Washer M6 x 20 Torx Head (Pack of 20)
IN STOCK 		$19.16 2
14 7G4310609EAAPK
Clip Spring M6 U Type 1.5-4.0 Black (Pack of 10)
IN STOCK 		$9.09 2
15 4G435340AJ
BRACKET ECU MOUNTING RH 		$173.41 1
16 4G435341AJ
BRACKET ECU MOUNTING LH 		$173.41 1
17 703203
Screw M6 x 20 Heex Flange 8 Chrome Free
6 per brkt
IN STOCK 		$0.19 12
18 AD43V17N800AC
BUMPER FRONT CRASH CAN 		$1,975.81 2
19 704495
Screw, M8 x 35, Hex Flange Head
6 per crash can
IN STOCK 		$11.16 12
20 8D3313068AB
PNL HD/LP MTNG RH 		$827.48 1
21 8D3313069AB
PNL HD/LP MNTG LH 		$827.48 1
22 4G436367912AD
NUT PLT ASY FRT CRSH 		$11.49 2
23 4G43043B19AC
TUBE PASSENGER AIR BAG INITIATPR RH 		$35.03 1
24 4G43043B20AC
TUBE PASSENGER AIR BAG INITIATOR LH 		$64.63 1
25 4G43111C61AE
Panel, Dummy Floor Front, RHD 		$398.22 1
25 4G43111C60AD
PANEL DUMMY FLOOR FRONT 		$398.22 1
26 704701
Screw, M6 x 20, Socket Head Button 		$3.45 6
27 703169
NUT - M6 HEX FLANGE CHROME FREE
IN STOCK 		$0.52 2
28 4G43111B48AB
Panel, Dummy Floor Cover, Front 		$43.26 1
29 704701
Screw, M6 x 20, Socket Head Button 		$3.45 7
30 8D33108A86AA
BRACKET FRONT CROSS BRACE RH 		$118.47 1
31 8D33108A87AA
BRACKET FRONT CROSS BRACE LH 		$118.47 1
32 4G43108A75AA
BRA FRT CS 		$123.65 1
33 702209
Bolt, M10 x 25, Torque Drive
IN STOCK 		$1.25 4
34 4G432011136
REINF BDY FRT C/BARS 		$123.16 1
35 4G432011136
REINF BDY FRT C/BARS 		$123.16 1
36 6G33ALR6871AA
Screw, M10 x 25
4 per crush bar 		- 8 Enquire
37 4G4367518AE
PANEL REAR SEAT HEEL BOARD RH 		$200.18 1
38 703169
NUT - M6 HEX FLANGE CHROME FREE
IN STOCK 		$0.52 2
39 7G4310N660AC
PANEL BATTERY COVER RH 		$472.29 1
40 8D33199901AA
NUTPLATE HEAD LAMP BRACKET 		$14.59 2
41 9G4328114AA
Baffle, Quarter Panel At Wheel, Housing Upper, RH 		$38.41 1
