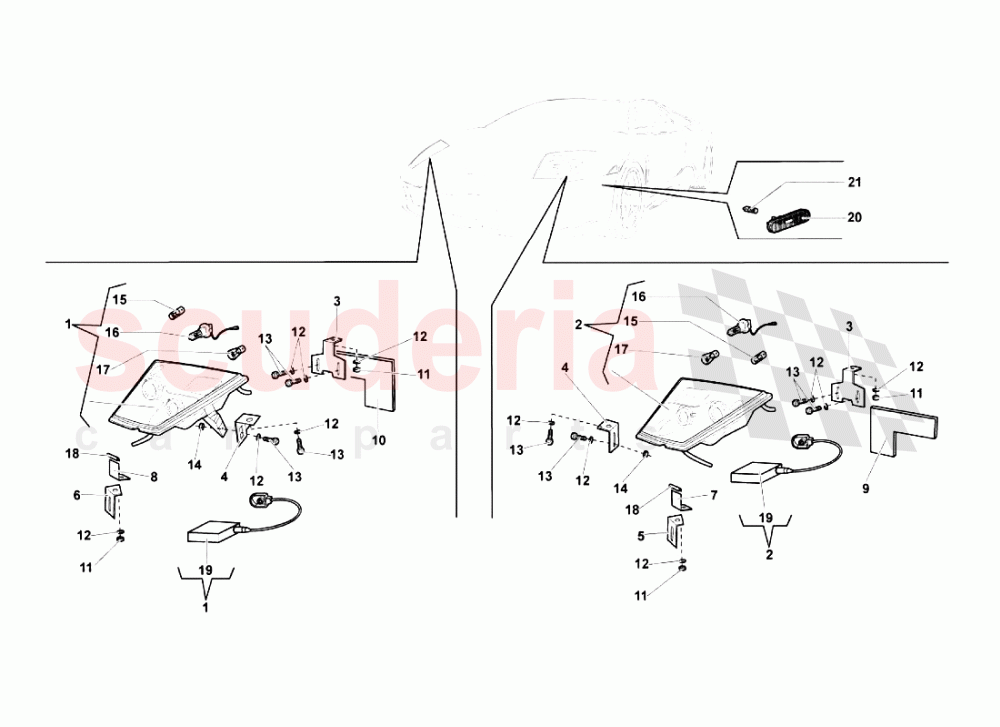

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	414941032D	RH FRONT HEADLIGHT ASSEMBLY	414941032D RH FRONT HEADLIGHT ASSEMBLY (right hand drive)	$7,435.51	1
002	414941031A	LH FRONT HEADLIGHT ASSEMBLY	414941031A LH FRONT HEADLIGHT ASSEMBLY (right hand drive)	$7,435.51	1
003	410941355	BRACKET	410941355 BRACKET	$83.28	2
004	410941155	BRACKET	410941155 BRACKET	$107.50	2
005	410941057	LH BRACKET IN STOCK	410941057 LH BRACKET IN STOCK	$58.05	1
006	410941058	RH BRACKET	410941058 RH BRACKET	$58.05	1
007	410941451	LH BRACKET	410941451 LH BRACKET	$47.07	2
008	410941452	RH BRACKET	410941452 RH BRACKET	$30.21	2
009	410941981	LH PROTECTION	410941981 LH PROTECTION	$36.89	1
010	410941982	RH PROTECTION	410941982 RH PROTECTION	$143.56	1
011	WHT002953	NUT M6	WHT002953 NUT M6	$3.26	6
012	WHT002961	WASHER IN STOCK	WHT002961 WASHER IN STOCK	$0.39	12
013	N90319404	SCREW IN STOCK	N90319404 SCREW IN STOCK	$2.07	8
014	N1508213	NUT M6	N1508213 NUT M6	-	2	Enquire
015	N177539	LAMP W5W	N177539 LAMP W5W	-	1	Enquire
016	N10445703	LAMP 12V 35W P32D-2 IN STOCK	N10445703 LAMP 12V 35W P32D-2 IN STOCK	$160.22	2
017	N10445601	LAMP 12V 21W BAY9S IN STOCK	N10445601 LAMP 12V 21W BAY9S IN STOCK	$25.04	2
018	410941119	GASKET	410941119 GASKET	$23.42	2
