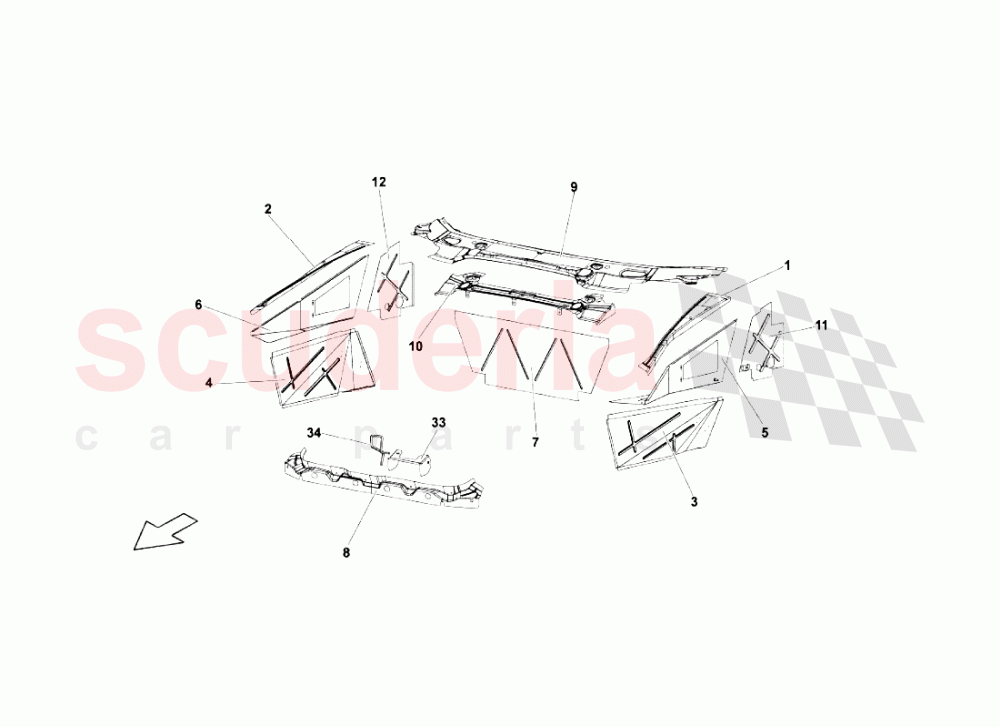

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
001	410807055	LH SHEET	410807055 LH SHEET	$707.12	1
002	410807056	RH SHEET	410807056 RH SHEET	$707.12	1
003	410805029	LH SHEET	410805029 LH SHEET	$362.94	1
004	410805030	RH SHEET	410805030 RH SHEET	$278.46	1
005	410805085A	LH SHEET	410805085A LH SHEET	$605.76	1
006	410805086	RH SHEET	410805086 RH SHEET	$605.76	1
007	429805597	SHEET	429805597 SHEET	$230.34	1
008	418801123	FRONT PANEL LUGGAGE AREA SHEET	418801123 FRONT PANEL LUGGAGE AREA SHEET	$6,051.18	1
009	429805117	WINDSCREEN FRAME LOWER	429805117 WINDSCREEN FRAME LOWER	$1,307.85	1
010	410803537A	WINDSCREEN FRAME LOWER INNER	410803537A WINDSCREEN FRAME LOWER INNER	$704.79	1
011	429806761	LH SHEET	429806761 LH SHEET	$137.71	1
012	429806762	RH SHEET	429806762 RH SHEET	$137.71	1
033	414806453	BRACKET	414806453 BRACKET	$580.71	1
034	410805759	HOOK	410805759 HOOK	$181.49	1
