Frame Elements 1 of Lamborghini Lamborghini Murcielago LP670

View All

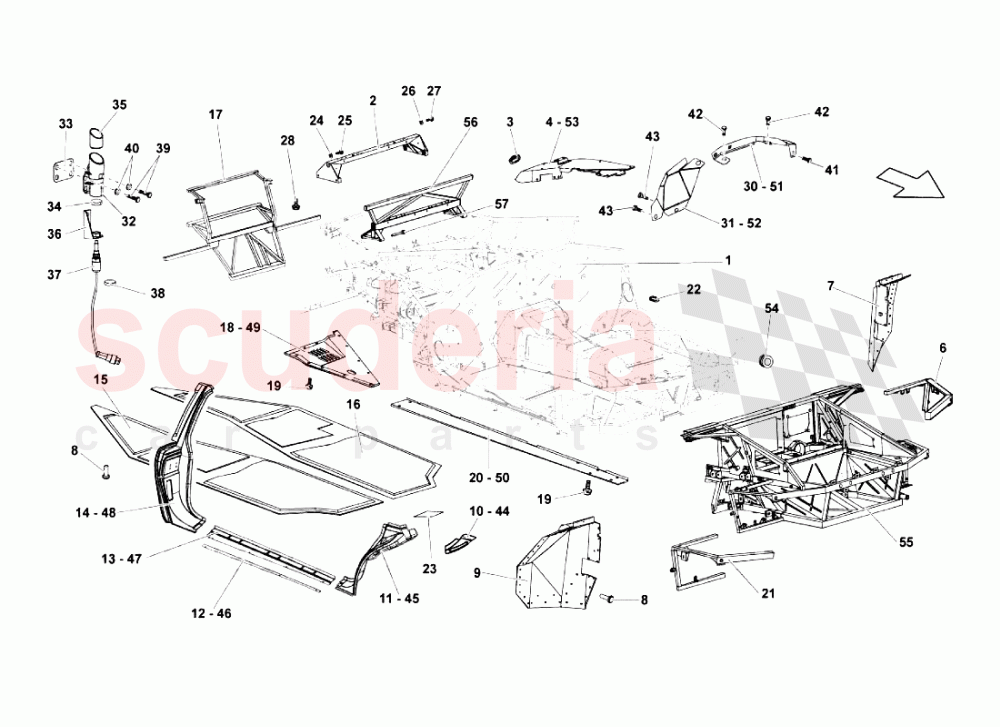

Lamborghini Murcielago LP670 - Frame Elements 1

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
003	400821189	Plug IN STOCK	400821189 Plug IN STOCK	$2.50	4
004	429813766	RH SHEET	429813766 RH SHEET	-	1	Enquire
007	418809153	LEFT FRONT WHEELARCH, REAR PART	418809153 LEFT FRONT WHEELARCH, REAR PART	$4,455.83	1
008	410821316	RIVET	410821316 RIVET	$6.14	66
009	418809154	RIGHT FRONT WHEELARCH, REAR PART	418809154 RIGHT FRONT WHEELARCH, REAR PART	$4,455.83	1
010	410809440A	RIGID UPPER CONNECTION	410809440A RIGID UPPER CONNECTION	$217.13	1
011	410805047	FRONT LEFT COVERING	410805047 FRONT LEFT COVERING	$2,595.53	1
012	410831165	OUTER LOWER LEFT PROFILE	410831165 OUTER LOWER LEFT PROFILE	$79.62	1
013	410801256	CENTER RIGHT COVERING	410801256 CENTER RIGHT COVERING	$705.04	1
014	418868813	REAR LEFT COVERING	418868813 REAR LEFT COVERING	$579.01	1
015	410825219	BOARD	410825219 BOARD	$6,952.08	1
016	410825220	BOARD	410825220 BOARD	$6,952.08	1
018	410825216	RIGHT REAR SIDE MEMBER BOTTOM	410825216 RIGHT REAR SIDE MEMBER BOTTOM	$1,615.97	1
019	WHT003069	SCREW M6X1X20	WHT003069 SCREW M6X1X20	$41.98	11
020	410825211	LEFT FRONT SIDE MEMBER BOTTOM	410825211 LEFT FRONT SIDE MEMBER BOTTOM	$1,291.52	1
022	410821801	PLUG	410821801 PLUG	$34.84	1
023	410837267	LID	410837267 LID	$526.73	2
044	410809439A	RIGID UPPER CONNECTION	410809439A RIGID UPPER CONNECTION	$180.96	1
045	410805048	FRONT RIGHT COVERING	410805048 FRONT RIGHT COVERING	$2,595.53	1
046	410831166	OUTER LOWER RIGHT PROFILE	410831166 OUTER LOWER RIGHT PROFILE	$89.64	1
047	410801255	CENTER LEFT COVERING	410801255 CENTER LEFT COVERING	$705.04	1
048	418868814	REAR RIGHT COVERING	418868814 REAR RIGHT COVERING	$1,990.34	1
049	410825215A	LEFT REAR SIDE MEMBER BOTTOM	410825215A LEFT REAR SIDE MEMBER BOTTOM	$1,878.45	1
050	410825210	RIGHT FRONT SIDE MEMBER BOTTOM	410825210 RIGHT FRONT SIDE MEMBER BOTTOM	$1,291.52	1
053	429813765	LH SHEET	429813765 LH SHEET	-	1	Enquire
054	410805746	FAIRLEAD (E-GEAR)	410805746 FAIRLEAD (E-GEAR)	$3.01	1
055	429898045A	FRONT FRAME (SEE IDENTITY PLATE PROCEDURE)	429898045A FRONT FRAME (SEE IDENTITY PLATE PROCEDURE)	$21,138.70	1
056	429813235	CROSS MEMBER	429813235 CROSS MEMBER	$4,885.38	1
057	N91045502	SCREW M8X65	N91045502 SCREW M8X65	$4.06	8
