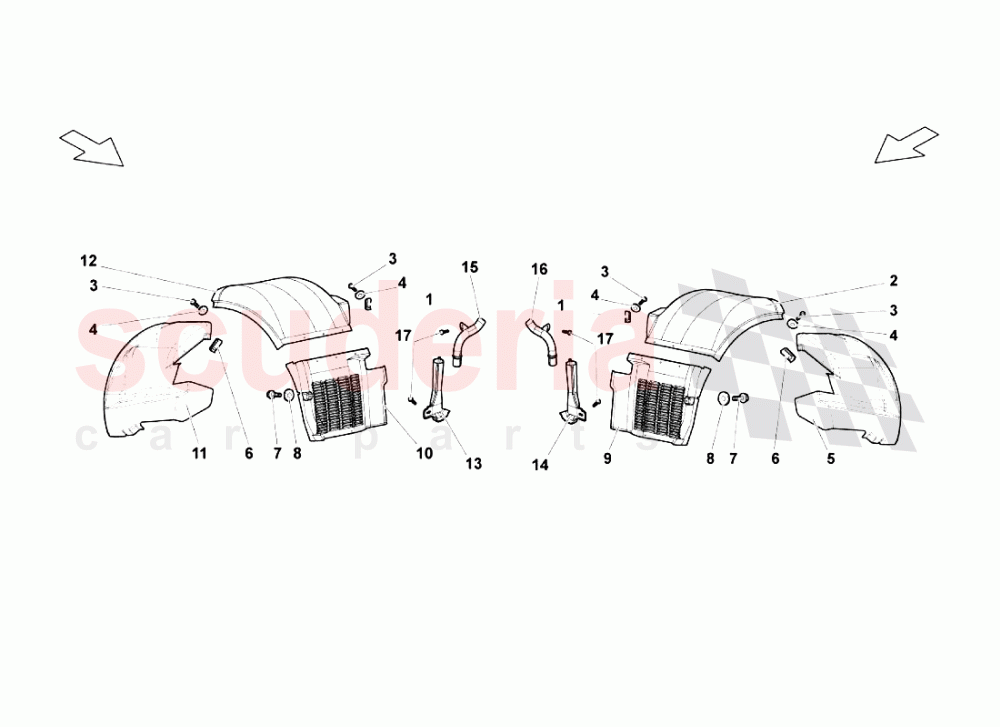

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
001	WHT000916A	CLIP	WHT000916A CLIP	$14.43	7
002	410810981	LEFT REAR WHEELARCH, CENTRAL PART	410810981 LEFT REAR WHEELARCH, CENTRAL PART	$1,809.85	1
003	WHT003066	SCREW IN STOCK	WHT003066 SCREW IN STOCK	$13.11	11
004	N91109201	WASHER IN STOCK	N91109201 WASHER IN STOCK	$1.61 MSRP: ~~5.85~~ (72.5% off)	20
005	410810985A	LEFT REAR WHEELARCH, PART	410810985A LEFT REAR WHEELARCH, PART	$842.51	1
006	N90834301	CLIP NUT IN STOCK	N90834301 CLIP NUT IN STOCK	$1.19	8
007	N90319404	SCREW IN STOCK	N90319404 SCREW IN STOCK	$2.07	12
008	N91115501	WASHER	N91115501 WASHER	$1.16 MSRP: ~~7.33~~ (84.2% off)	12
009	410810171A	LEFT REAR WHEELARCH, PART	410810171A LEFT REAR WHEELARCH, PART	$981.05	1
010	410810172A	RIGHT REAR WHEELARCH, PART	410810172A RIGHT REAR WHEELARCH, PART	$981.05	1
011	410810986A	RIGHT REAR WHEELARCH, PART	410810986A RIGHT REAR WHEELARCH, PART	$842.51	1
012	410810982	RIGHT REAR WHEELARCH, CENTRAL PART	410810982 RIGHT REAR WHEELARCH, CENTRAL PART	$1,809.85	1
013	410863325	LH CONVEYOR	410863325 LH CONVEYOR	$2,777.16	1
014	410863326	RH CONVEYOR	410863326 RH CONVEYOR	$2,777.16	1
015	410863149	LH CONVEYOR	410863149 LH CONVEYOR	$677.75	1
016	410863150	RH CONVEYOR	410863150 RH CONVEYOR	$139.79	1
017	N91040401	SCREW ST4.8X22.0 IN STOCK	N91040401 SCREW ST4.8X22.0 IN STOCK	$0.91 MSRP: ~~7.27~~ (87.5% off)	4
