Lamborghini Murcielago LP670 - Front Arms

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

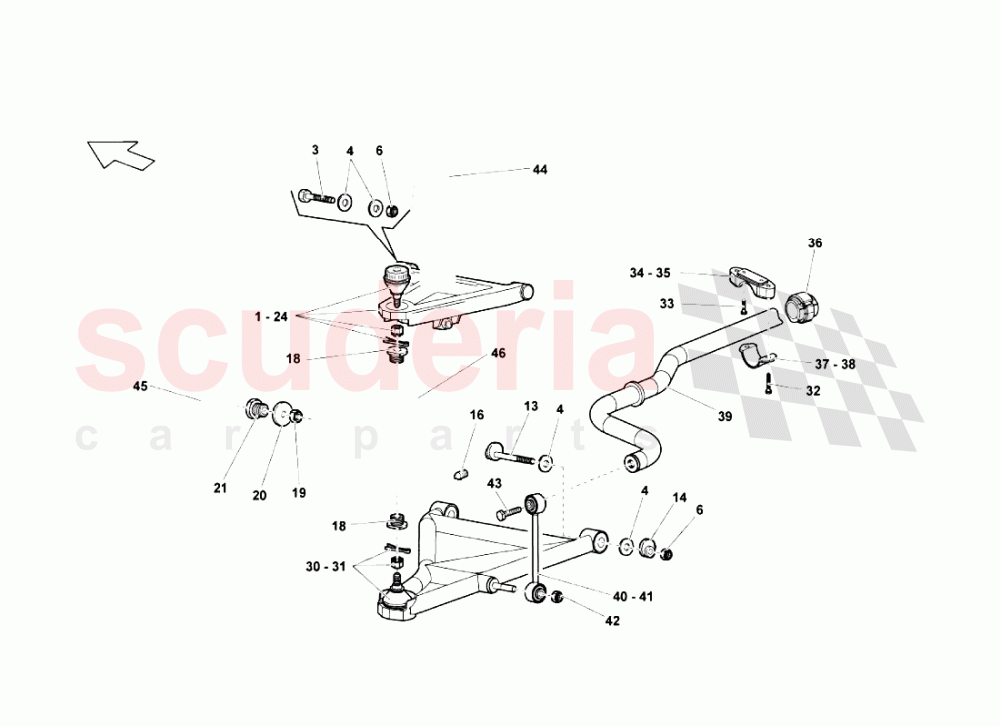

Front Arms of Lamborghini Lamborghini Murcielago LP670 Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
001 410407505B
LH UPPER ARM 		$3,893.59 1
003 WHT002637
SCREW M12X1,25X75 		$56.60 4
004 410407295C
2.5 MM ADJUSTMENT SHIM 		$6.89 1
004 410407295D
WASHER 		$27.68 1
004 410407295A
1.5 MM ADJUSTMENT SHIM 		$6.40 1
004 410407295
1.0 MM ADJUSTMENT SHIM 		$4.26 1
006 WHT003461
NUT M12X1.25
IN STOCK 		$2.26 4
013 410407127A
BOLT 		$2,178.40 4
014 410407135A
CAM 		$77.75 4
016 WHT002941
SCREW M6X1X10 		$0.90 (87.6% off) 2
018 410407171C
BUSH 		$1,377.14 2
019 WHT000915
NUT 		$18.29 2
020 WHT000919
WASHER 		$14.09 2
021 410419121B
BUSH 		$232.86 1
024 410407506B
RH UPPER ARM 		$3,893.59 1
030 410407151D
LH LOWER ARM 		$3,456.14 1
031 410407152D
RH LOWER ARM 		$3,456.14 1
032 N10049308
HEXAGON HEAD BOLT (COMBI)
IN STOCK 		$2.70 4
033 N10713801
SCREW M6X16 		$6.16 4
034 400411031N
U-BOLT (RIGHT-HAND) 		$89.67 1
035 400411031N
U-BOLT (RIGHT-HAND) 		$89.67 1
036 4D0411327G
BUSHING 		$13.15 2
037 4D0411336G
CLAMP 		$5.45 1
038 4D0411336G
CLAMP 		$5.45 1
039 410411309A
STABILIZER BAR 		$479.50 1
040 410411317B
CONNECTING ROD (RIGHT-HAND) 		$109.68 1
041 410411317A
CONNECTING ROD (LEFT) 		$109.68 1
042 N10286110
HEXAGON COLLAR NUT SELF-LOCKING
IN STOCK 		$2.33 (67.7% off) 2
043 N10699401
HEXAGON BOLT M10 X 50
IN STOCK 		$4.21 2
