Gearbox Control Tower

Lamborghini Murcielago LP640

Find Your Part

Lamborghini Murcielago LP640 - Gearbox Control Tower

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

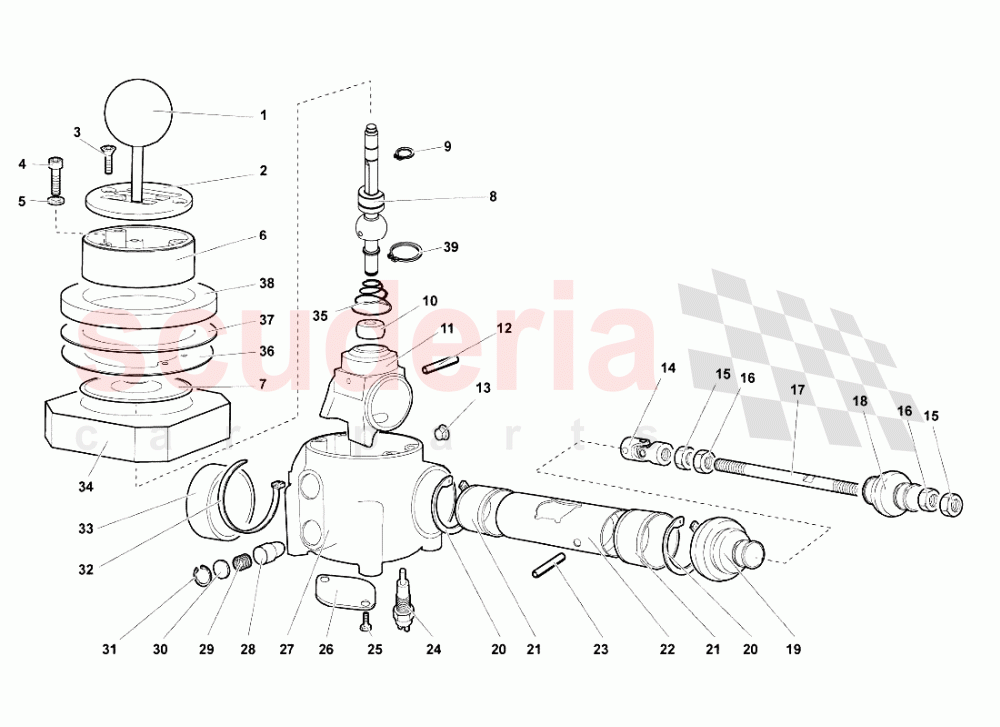

Gearbox Control Tower of Lamborghini Lamborghini Murcielago LP640 Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
001 410711141
HANDLE (FROM VIN 01202 USA MY04) 		$2,851.11 1
002 410713109
SELECTOR PLATE 		$3,446.37 1
003 WHT003564
SCREW 		$12.87 2
004 N10544302
SOCKET HEAD BOLT
IN STOCK 		$1.76 (75.8% off) 4
005 N90247901
WASHER 		$53.44 4
006 410711795A
SPACER 		$1,673.07 1
007 410711527A
BOOT 		$221.85 1
008 410711123
LEVER 		$6,316.26 1
009 N0124101
SEAL RING 10X1
IN STOCK 		$0.15 (98% off) 1
010 410711189
BALL 		$726.89 1
011 410711111
SHIFT LEVER SEAT 		$3,634.36 1
012 WHT003590
PIN 		$12.05 1
013 410711514
FAIRLEAD.DKF6-9-12-3
IN STOCK 		$1.37 (81.1% off) 1
014 410711613
LH JOINT 		$769.50 1
015 WHT003615A
RH NUT
IN STOCK 		$1.09 (84.9% off) 1
017 410711433A
TIE ROD 		$1,397.34 1
018 410711423
BOOT 		$65.57 1
019 410711411
BOOT 		$191.80 1
020 WHT003579
RETAINING RING 		$4.96 1
021 410711067
BUSHING 		$261.92 1
022 410711158
SHAFT 		$3,277.18 1
023 N10738501
PIN
IN STOCK 		$0.30 (95.9% off) 1
024 86941521A
SWITCH 		$102.52 1
025 N0102018
SCREW M4X8
IN STOCK 		$3.82 (46.9% off) 1
026 410711599
PLATE 		$42.16 1
027 410711061
SHIFT LEVER SUPPORT 		$741.92 1
028 410711039
PAWL 		$69.82 2
029 410711490
SPRING 		$102.88 2
030 410711217A
DISK 		$26.76 2
031 WHT003576
SEAL RING
IN STOCK 		$0.18 (97.6% off) 2
032 N10267501
CLAMP
IN STOCK 		$2.95 (50.8% off) 2
033 410711213
BOOT 		$59.47 1
035 410711369
SPRING 		$305.17 1
036 410711238
SPACER 		$31.13 1
037 410711353
INSULATION 		$3.15 1
038 410711296
INSULATION 		$312.69 1
039 WHT002646
RETAINING RING
IN STOCK 		$1.01 (86% off) 1
