Lamborghini Murcielago LP640 - Gearbox

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

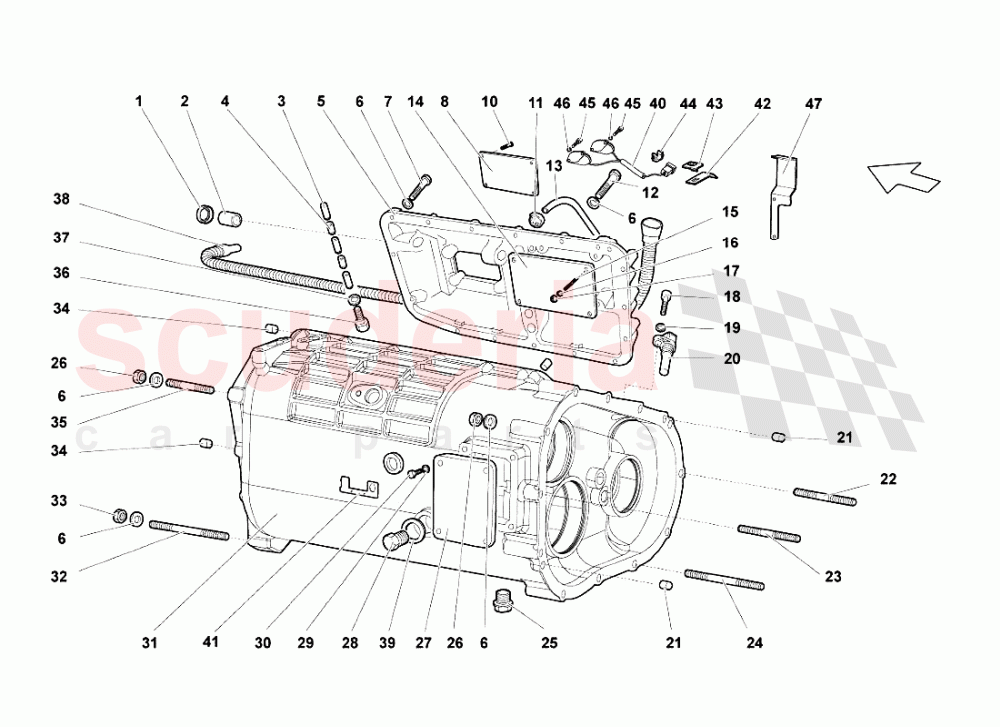

Gearbox of Lamborghini Lamborghini Murcielago LP640 Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
001 86311520
SEAL RING 		$19.46 1
002 86311621
BUSHING 		$25.53 1
003 86311281A
PAWL 		$43.00 3
004 86311281B
PAWL 		$43.00 2
005 86301201B
COVER (MANUAL GEARBOX) 		$1,516.42 1
005 86301201C
COVER (E-GEAR) 		$1,304.23 1
006 WHT000771
WASHER
IN STOCK 		$1.10 18
007 N10582103
OVAL HEAD COUNTERSUNK BOLT WITH MULTI-POINT SOCKET HEAD
IN STOCK 		$1.88 (74% off) 6
008 86301465
COVER (MANUAL GEARBOX) 		$99.35 1
008 86301465A
COVER (E-GEAR) 		$58.04 1
010 N10653201
HEX COLLARED BOLT
IN STOCK 		$2.18 4
011 400127217
CLAMP
IN STOCK 		$0.37 (95% off) 1
012 N10700202
ROUND HD. SCREW 		$1.75 (75.9% off) 12
013 86301472
BREATHER PIPE 		$40.45 1
014 86301827
COVER 		$55.72 1
015 WHT002943
STUD BOLT M6X12 		$14.34 4
016 WHT001197A
WASHER
IN STOCK 		$0.28 4
017 WHT002953
NUT M6 		$3.26 4
018 N91084801
HEXAGON SOCKET HEAD BOLT
IN STOCK 		$1.56 (78.6% off) 2
019 WHT001197A
WASHER
IN STOCK 		$0.28 2
020 86927321
TIMING SENSOR 		$112.75 (4.4% off) 2
021 WHT003078
DOWEL 		$41.01 2
022 WHT003166
STUD BOLT M8X40 		$47.11 1
023 WHT002944
STUD BOLT M8X50 		$15.61 1
024 WHT002946
STUD BOLT M8X60 		$10.25 10
025 86301141
MAGNETIC PLUG 		$25.85 1
026 N01100845
HEXAGON NUT
IN STOCK 		$1.93 8
027 86301173
COVER 		$99.35 1
028 86301141
MAGNETIC PLUG 		$25.85 1
029 WHT001197A
WASHER
IN STOCK 		$0.28 4
030 N01021626
SCREW M6X18 		$1.24 (82.7% off) 4
031 86301103F
6-GEAR TRANSMISSION CASE (E-GEAR - MANUAL) 		$4,057.11 1
032 WHT002944
STUD BOLT M8X50 		$15.61 1
033 N90226404
HEXAGON COLLAR NUT SELF-LOCKING 		$2.25 (68.8% off) 1
034 WHT003078
DOWEL 		$41.01 2
035 WHT003167
STUD BOLT M8X30 		$9.88 8
036 N01029315
SCREW (FROM VIN 5LA01545) 		$2.25 (68.9% off) 1
037 N0138302
Washer Copper 8 x 1MM
IN STOCK 		$3.67 (49.9% off) 1
038 410971771G
WIRING HARNESS (MANUAL 		$369.44 1
039 N0138271
SEAL RING
IN STOCK 		$3.95 (44.8% off) 1
040 86927321A
E-GEAR SENSOR
IN STOCK 		$2,595.98 1
041 400326138A
SUPPORT 		$115.22 1
042 400971890D
BRACKET 		$24.27 1
043 1J0937510A
BRACKET FOR CONNECTOR HOUSING 		$4.11 1
044 410868630A
SUPPORT 		$54.49 2
045 N10662102
Screw M4X12
IN STOCK 		$3.01 (70% off) 4
046 N0115557
WASHER 		$106.98 4
047 86301327A
PROTECTION (E-GEAR) 		$34.28 1
