Front Differential Case

Lamborghini Murcielago LP640

Find Your Part

Lamborghini Murcielago LP640 - Front Differential Case

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

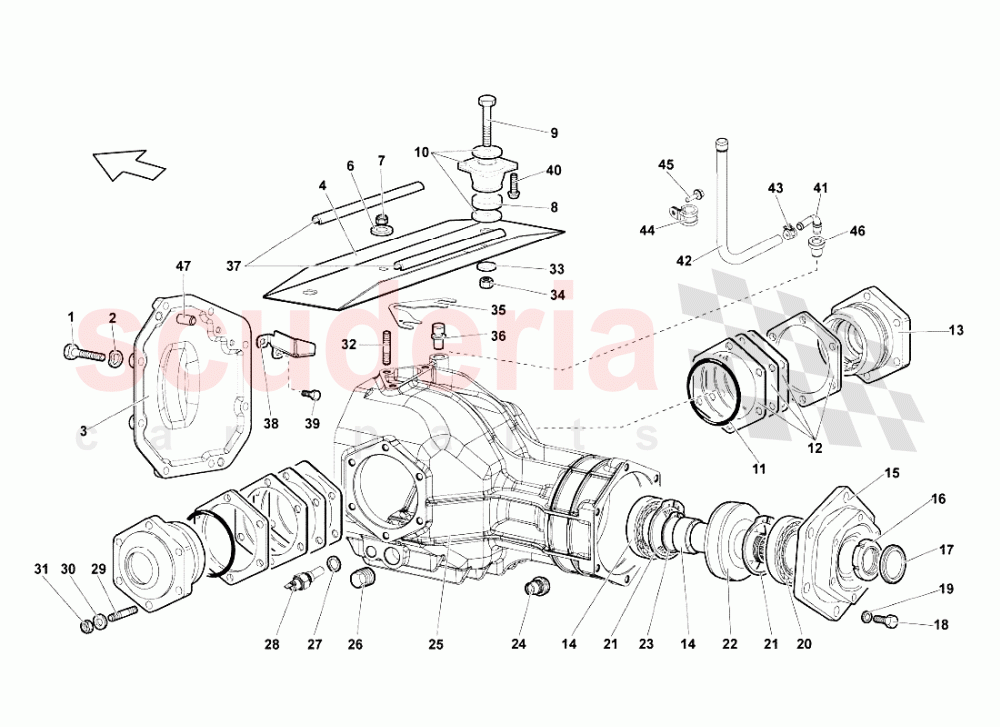

Front Differential Case of Lamborghini Lamborghini Murcielago LP640 Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
001 N10545402
SCREW M8X25.00-S1-N 		$3.78 (47.3% off) 8
002 WHT001514
WASHER
IN STOCK 		$23.25 (63.7% off) 8
003 1S409410B
COVER 		$2,185.89 1
004 410805153
SUPPORT 		$49.98 1
006 WHT001942
WASHER
IN STOCK 		$3.07 3
007 N0111849
NUT
IN STOCK 		$2.13 (70.6% off) 3
008 410801499
SPACER 		$66.91 2
009 WHT002639
SCREW M12X1.25X70X30 		$6.45 2
010 410805991
SUPPORT 		$177.26 2
011 WHT002158
SEAL RING 		$19.63 2
012 1S409448H
2 MM ADJUSTMENT 		$52.86 2
012 1S409448C
0.075 MM ADJUSTMENT SHIM 		$32.89 3
012 1S409448G
1 MM ADJUSTMENT 		$45.29 1
012 1S409448B
2.0 MM ADJUSTMENT SHIM 		$94.46 2
012 1S409448D
0.050 MM ADJUSTMENT SHIM 		$21.62 3
013 1S409828A
FLANGE 		$821.74 2
014 1S409770
BEARING 		$313.26 1
015 1S409129A
FLANGE 		$1,113.61 1
016 1S409761
RING NUT 		$217.97 1
017 1S409887
SEAL RING 		$66.91 1
018 N10545402
SCREW M8X25.00-S1-N 		$3.78 (47.3% off) 6
019 WHT001514
WASHER
IN STOCK 		$23.25 (63.7% off) 6
020 1S409561
BEARING 		$60.51 1
021 N0123501
RETAINING RING 		$6.77 2
022 1S409435B
VISCOUS COUPLING 		$5,588.11 1
023 1S409297
SEAL RING 		$17.73 1
024 1S409965
MAGNETIC PLUG 		$164.73 1
025 1S409149A
FRONT DIFFERENTIAL CASE 		$11,248.91 1
026 86301141
MAGNETIC PLUG 		$25.94 1
027 N0138492
WASHER
IN STOCK 		$3.82 (47% off) 1
028 1S919529
SENSOR 		$265.57 1
029 WHT003164
STUD BOLT M8X35 		$20.55 12
030 WHT001514
WASHER
IN STOCK 		$23.25 (63.7% off) 12
031 N01100845
HEXAGON NUT
IN STOCK 		$1.94 12
032 WHT003164
STUD BOLT M8X35 		$20.55 3
033 410407295B
2.0 MM ADJUSTMENT SHIM 		$6.26 2
034 WHT003355
NUT M12X1,25
IN STOCK 		$20.55 2
035 1S409267F
1.0 MM SHIM 		$39.72 4
037 400133338
GASKET 		$63.64 2
038 1S409194
BULKHEAD 		$238.08 1
039 N90305304
SCREW M6X10 		$2.08 (71.6% off) 2
040 N90929202
SCREW M10X20.0 		$3.39 8
041 2D525118B
ELBOW FITTING 		$14.04 1
042 1S409847
OIL BREATHER PIPE 		$102.72 1
043 N90686701
SPRING BAND CLAMP
IN STOCK 		$1.88 (73.6% off) 1
044 N0206027
CLAMP 		$3.78 1
045 N10338903
SCREW M6X16 		$49.17 1
046 1S409190
BUSHING 		$22.62 1
047 WHT003078
DOWEL 		$41.16 2
