E-Gear Control Pedal

Lamborghini Murcielago LP640

Find Your Part

Lamborghini Murcielago LP640 - E-gear Control Pedal

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

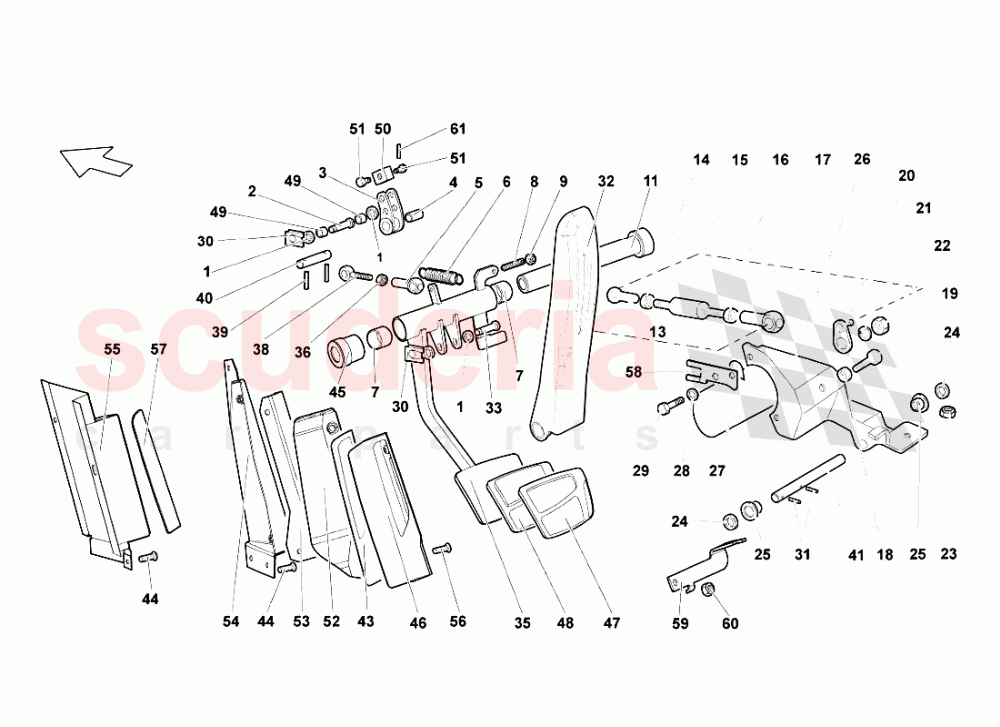

E-gear Control Pedal of Lamborghini Lamborghini Murcielago LP640 Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
001 N01152722
WASHER 10,5X21X2 		$16.46 4
002 410721966
JOURNAL 		$188.95 1
003 410721385
LEVER 		$108.87 1
004 410721164A
BUSHING 		$12.34 1
005 410721993
BALL JOINT COUPLING 		$71.20 1
006 410721363
SPRING 		$164.56 1
007 410721443
BUSHING 		$225.88 1
008 410721671
ADJUSTING SLEEVE 		$22.54 1
009 N01100637
NUT M6
IN STOCK 		$0.30 (95.9% off) 1
011 413721325A
JOURNAL 		$259.05 1
013 400721214E
BALL JOINT HEAD (LEFT HAND THREAD) 		$59.63 1
014 N10690001
NUT (LEFT HAND THREAD) 		$490.63 1
015 400721743A
SHAFT 		$37.54 1
016 N10689901
NUT M5 		$0.07 (99.1% off) 1
017 400721214D
BALL JOINT HEAD 		$40.79 1
018 N01100845
HEXAGON NUT
IN STOCK 		$1.94 1
019 N01033520
SCREW M8X35
IN STOCK 		$3.14 (56.3% off) 1
020 400721728C
LEVER 		$198.39 1
022 N02300212
NUT M6 		$0.30 (95.9% off) 1
023 N10609202
HEXAGON COLLAR NUT
IN STOCK 		$0.35 2
024 WHT000697
WASHER 		$0.91 (87.4% off) 2
025 410721543
BUSHING 		$29.40 2
026 400721651A
SUPPORT 		$1,103.69 1
027 400907475A
POTENTIOMETER 		$1,739.39 1
028 N0115578
WASHER 6X12X1 		$1.88 (73.6% off) 2
029 N10546402
HEXAGON SOCKET HEAD BOLT 		$1.33 (81.8% off) 2
030 N0126483
CLIP 		$3.71 2
031 N10206801
PIN 		$0.62 (91.5% off) 2
032 400721507A
ACCELERATOR PEDAL 		$2,271.21 1
033 410721147
JOURNAL 		$267.18 1
035 413721145C
BRAKE PEDAL 		$606.93 1
036 N10155210
NUT
IN STOCK 		$2.01 (72.2% off) 1
038 410721645
TIE ROD 		$76.08 1
039 N0133481
SPRING PIN
IN STOCK 		$0.25 (96.6% off) 1
040 410721965
JOURNAL 		$27.98 1
041 400721157
JOURNAL 		$30.87 1
043 401864431
RUBBER FOOT MAT 		$20.53 1
044 N90780901
OVAL HEXAGON SOCKET HEAD BOLT
IN STOCK 		$2.89 (60.8% off) 1
045 410723167
SPACER 		$66.22 1
046 401864419B
FOOTREST DRIVER SIDE 		$204.65 1
047 400721780A
COVER 		$280.31 1
048 400721174D
CAP FOR FOOT BRAKE PEDAL 		$41.05 1
049 410721134A
BUSHING 		$210.23 1
050 410721255
BLOCK 		$62.01 1
051 410721379
SCREW 		$287.82 1
052 401864431B
COVER 		$79.84 1
053 401864523A
SUPPORT 		$51.43 1
054 413864775B
BRACKET 		$106.24 1
056 N10713901
SCREW M6X50 		$18.40 2
058 410971806
SUPPORT 		$32.04 1
061 N0133311
PIN 2.0X12.0 		$0.19 (97.4% off) 2
