Lamborghini Murcielago LP640 - Manual Pedal Cluster

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

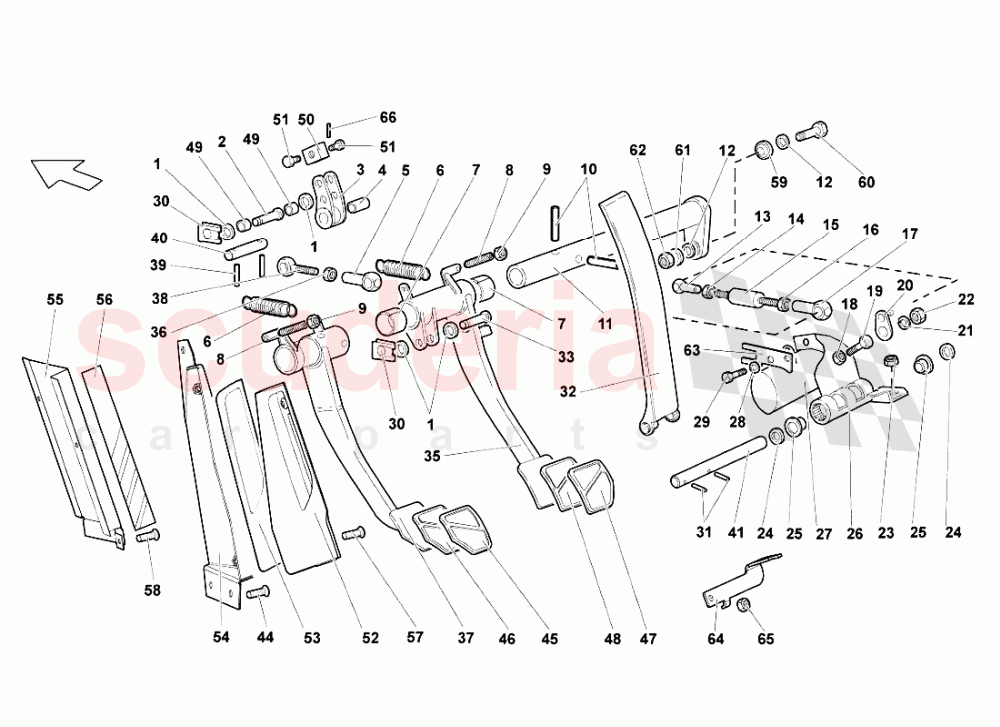

Manual Pedal Cluster of Lamborghini Lamborghini Murcielago LP640 Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
001 N01152722
WASHER 10,5X21X2 		$16.40 4
002 410721966
JOURNAL 		$188.24 1
003 410721385
LEVER 		$108.46 1
004 410721164A
BUSHING 		$12.30 1
005 410721993
BALL JOINT COUPLING 		$70.93 1
006 410721363
SPRING 		$163.94 2
007 410721443
BUSHING 		$225.03 2
008 410721671
ADJUSTING SLEEVE 		$22.45 2
009 N01100637
NUT M6
IN STOCK 		$0.30 (95.9% off) 2
010 WHT003109
PIN
IN STOCK 		$1.16 (83.9% off) 2
011 413721325
JOURNAL 		$3,235.13 1
012 WHT002631
WASHER 8X12X1 		$30.37 2
013 400721214E
BALL JOINT HEAD (LEFT HAND THREAD) 		$59.41 1
014 N10690001
NUT (LEFT HAND THREAD) 		$488.80 1
015 400721743A
SHAFT 		$37.40 1
016 N10689901
NUT M5 		$0.07 (99.1% off) 1
017 400721214D
BALL JOINT HEAD 		$40.63 1
018 N01100845
HEXAGON NUT
IN STOCK 		$1.93 1
019 N01033520
SCREW M8X35
IN STOCK 		$3.13 (56.5% off) 1
020 400721728C
LEVER 		$197.64 1
022 N02300212
NUT M6 		$0.30 (95.9% off) 1
023 N10609202
HEXAGON COLLAR NUT
IN STOCK 		$0.34 2
024 WHT000697
WASHER 		$0.91 (87.4% off) 2
025 410721543
BUSHING 		$29.29 2
026 400721651A
SUPPORT 		$1,099.57 1
027 400907475A
POTENTIOMETER 		$1,732.89 1
028 N0115578
WASHER 6X12X1 		$1.87 (73.7% off) 2
029 N10546402
HEXAGON SOCKET HEAD BOLT 		$1.32 (81.9% off) 2
030 N0126483
CLIP 		$3.69 2
031 N10206801
PIN 		$0.62 (91.5% off) 2
032 400721507A
ACCELERATOR PEDAL 		$2,262.72 1
033 410721147
JOURNAL 		$266.18 1
035 413721145B
BRAKE PEDAL 		$3,316.17 1
036 N10155210
NUT
IN STOCK 		$2.00 (72.4% off) 1
037 413721321B
CLUTCH PEDAL 		$2,057.04 1
038 410721645
TIE ROD 		$75.80 1
039 N0133481
SPRING PIN
IN STOCK 		$0.25 (96.6% off) 1
040 410721965
JOURNAL 		$27.87 1
041 400721157
JOURNAL 		$30.75 1
044 N90780901
OVAL HEXAGON SOCKET HEAD BOLT
IN STOCK 		$2.88 (61% off) 1
045 400721779
COVER 		$572.23 1
046 400721173
COVER 		$32.17 1
048 400721174C
COVER 		$322.29 1
049 410721134A
BUSHING 		$209.44 1
050 410721255
BLOCK 		$61.78 1
051 410721379
SCREW 		$286.74 1
052 413864419
FOOTREST DRIVER SIDE 		$3,577.99 1
053 401864431
RUBBER FOOT MAT 		$20.46 1
054 413864775B
BRACKET 		$105.85 1
057 WHT003068
COUNTERSUNK BOLT
IN STOCK 		$1.32 (81.6% off) 2
059 410721427
BALL JOINT 		$83.92 1
060 WHT003270
JOURNAL 		$43.78 1
061 N90179103
WASHER 18X8,4X2,5
IN STOCK 		$1.43 1
062 N0111849
NUT
IN STOCK 		$2.12 (70.8% off) 1
063 410971806
SUPPORT 		$31.92 1
066 N0133311
PIN 2.0X12.0 		$0.19 (97.4% off) 2
