Lamborghini Murcielago - GEARBOX

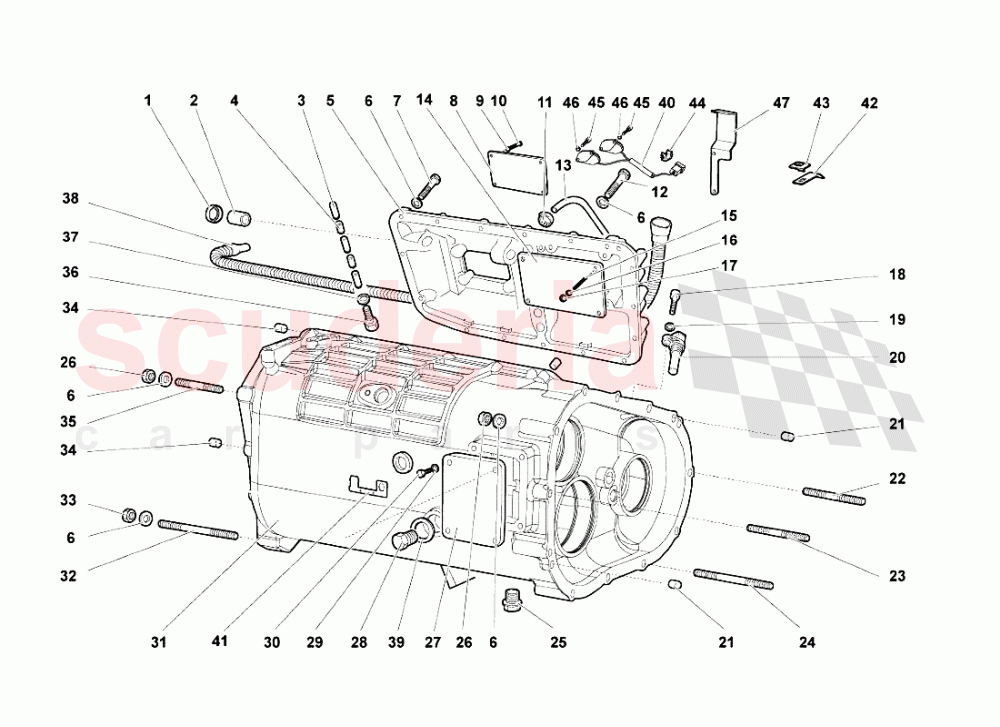

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
001	86311520	SEAL RING	86311520 SEAL RING	$19.44	1
002	86311621	BUSHING	86311621 BUSHING	$25.50	1
003	86311281A	PAWL	86311281A PAWL	$42.95	3
004	86311281B	PAWL	86311281B PAWL	$42.95	2
005	86301201C	COVER (E-GEAR)	86301201C COVER (E-GEAR)	$1,302.78	1
005	86301201B	COVER (MANUAL GEARBOX)	86301201B COVER (MANUAL GEARBOX)	$1,514.73	1
006	WHT000771	WASHER IN STOCK	WHT000771 WASHER IN STOCK	$1.10	18
007	8100658	SCREW	8100658 SCREW	$0.50 MSRP: ~~7.31~~ (93.2% off)	6
008	86301465A	COVER (E-GEAR)	86301465A COVER (E-GEAR)	$57.97	1
008	86301465	COVER (MANUAL GEARBOX)	86301465 COVER (MANUAL GEARBOX)	$99.24	1
009	WHT001197A	WASHER IN STOCK	WHT001197A WASHER IN STOCK	$0.28	4
010	8100630	SCREW	8100630 SCREW	$0.15 MSRP: ~~7.37~~ (98% off)	4
011	8830128	CLAMP	8830128 CLAMP	$0.43	1
012	N01022217	HEXAGON HEAD BOLT	N01022217 HEXAGON HEAD BOLT	$6.69	12
013	86301472	BREATHER PIPE	86301472 BREATHER PIPE	$40.40	1
014	86301827	COVER	86301827 COVER	$55.66	1
015	8300667	STUD BOLT	8300667 STUD BOLT	$14.79	4
017	8200616	NUT	8200616 NUT	$0.85 MSRP: ~~7.20~~ (88.2% off)	4
018	N0147035	SCREW	N0147035 SCREW	$0.69 MSRP: ~~7.28~~ (90.5% off)	2
019	WHT001197A	WASHER IN STOCK	WHT001197A WASHER IN STOCK	$0.28	2
020	86927321	TIMING SENSOR	86927321 TIMING SENSOR	$112.63 MSRP: ~~118.00~~ (4.6% off)	2
021	WHT003078	DOWEL	WHT003078 DOWEL	$40.97	2
022	8300826	STUD BOLT	8300826 STUD BOLT	$10.79	1
023	8300807	STUD BOLT	8300807 STUD BOLT	$15.59	1
024	8300827	STUD BOLT	8300827 STUD BOLT	$10.24	10
025	86301141	MAGNETIC PLUG	86301141 MAGNETIC PLUG	$25.82	1
026	8200806	NUT	8200806 NUT	$0.34 MSRP: ~~7.33~~ (95.4% off)	7
026	8200806	NUT	8200806 NUT	$0.34 MSRP: ~~7.33~~ (95.4% off)	8
027	86301173	COVER	86301173 COVER	$99.24	1
028	86301141	MAGNETIC PLUG	86301141 MAGNETIC PLUG	$25.82	1
029	WHT001197A	WASHER IN STOCK	WHT001197A WASHER IN STOCK	$0.28	4
030	8100601	SCREW	8100601 SCREW	$0.25	4
031	86301103F	6-GEAR TRANSMISSION CASE (E-GEAR - MANUAL)	86301103F 6-GEAR TRANSMISSION CASE (E-GEAR - MANUAL)	$4,052.59	1
032	8300807	STUD BOLT	8300807 STUD BOLT	$15.59	1
033	8200821	NUT	8200821 NUT	$2.61 MSRP: ~~2.80~~ (6.8% off)	1
034	WHT003078	DOWEL	WHT003078 DOWEL	$40.97	2
035	8300803	STUD BOLT	8300803 STUD BOLT	$12.57	8
036	N01029315	SCREW (FROM VIN 5LA01545)	N01029315 SCREW (FROM VIN 5LA01545)	$2.25 MSRP: ~~7.23~~ (68.9% off)	1
037	N0138302	Washer Copper 8 x 1MM IN STOCK	N0138302 Washer Copper 8 x 1MM IN STOCK	$3.67 MSRP: ~~7.33~~ (49.9% off)	1
038	61009109	WIRING HARNESS (MANUAL GEARBOX)	61009109 WIRING HARNESS (MANUAL GEARBOX)	$45.93	1
039	N0138271	SEAL RING IN STOCK	N0138271 SEAL RING IN STOCK	$3.94 MSRP: ~~7.16~~ (45% off)	1
040	86927321A	E-GEAR SENSOR IN STOCK	86927321A E-GEAR SENSOR IN STOCK	$2,593.09	1
041	400326138	SUPPORT	400326138 SUPPORT	$9.06	1
042	400971890	BRACKET	400971890 BRACKET	$14.83	1
043	1J0937510A	BRACKET FOR CONNECTOR HOUSING	1J0937510A BRACKET FOR CONNECTOR HOUSING	$4.11	1
044	410868630	BRACKET	410868630 BRACKET	$53.16	2
045	8700476	SCREW	8700476 SCREW	$1.16 MSRP: ~~7.36~~ (84.2% off)	4
046	8410405	WASHER	8410405 WASHER	$0.06 MSRP: ~~7.39~~ (99.2% off)	4
047	86301327A	PROTECTION (E-GEAR)	86301327A PROTECTION (E-GEAR)	$34.24	1
