E-Gear Control Pedal

Lamborghini Murcielago

Find Your Part

Lamborghini Murcielago - E-GEAR CONTROL PEDAL

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

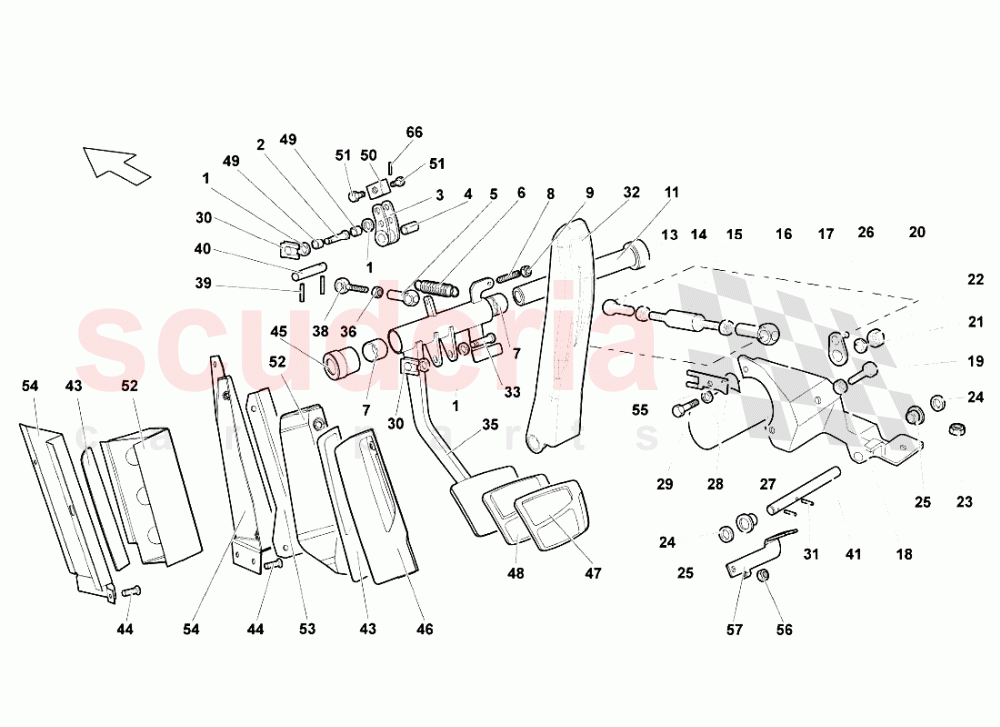

E-GEAR CONTROL PEDAL of Lamborghini Lamborghini Murcielago Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
002 410721966
JOURNAL 		$189.10 1
003 410721385
LEVER 		$108.95 1
004 8801209
BUSHING 		$8.90 (10.1% off) 1
005 410721993
BALL JOINT COUPLING 		$71.25 1
006 410721363
SPRING 		$164.68 1
007 8802501
BUSHING 		$20.42 (10.8% off) 1
008 4210834
ADJUSTING SLEEVE 		$4.24 (9.8% off) 1
009 N01100637
NUT M6
IN STOCK 		$0.30 (95.9% off) 1
011 413721325A
JOURNAL 		$259.25 1
013 400721214E
BALL JOINT HEAD (LEFT HAND THREAD) 		$59.68 1
014 N10690001
NUT (LEFT HAND THREAD) 		$491.01 1
015 400721743
SHAFT 		$45.03 1
016 8200501
NUT 		$0.06 1
017 400721214A
BALL JOINT HEAD 		$48.10 1
018 N01100845
HEXAGON NUT
IN STOCK 		$1.94 1
019 N01033520
SCREW M8X35
IN STOCK 		$3.14 (56.3% off) 1
020 400721728
LEVER 		$38.38 1
021 8400628
WASHER 		$0.21 (97.1% off) 1
022 N02214812
HEXAGON NUT, SELF-LOCKING 		$2.01 (72.4% off) 1
023 N90226403
NUT M8 		$0.79 (89.1% off) 2
023 N90226404
HEXAGON COLLAR NUT SELF-LOCKING 		$2.26 (68.7% off) 2
024 WHT000697
WASHER 		$0.91 (87.4% off) 2
025 400721543
BUSHING 		$25.81 2
026 400721651A
SUPPORT 		$1,104.54 1
027 400907475A
POTENTIOMETER 		$1,740.72 1
028 8400628
WASHER 		$0.21 (97.1% off) 2
029 8700614
SCREW 		$0.25 2
030 8581004
CLIP 		$8.74 (9.9% off) 2
031 8900204
PIN 		$0.15 (98% off) 2
032 400721507A
ACCELERATOR PEDAL 		$2,272.95 1
033 410721147
JOURNAL 		$267.38 1
035 413721145A
BRAKE PEDAL 		$583.60 1
036 N10155210
NUT
IN STOCK 		$2.01 (72.2% off) 1
038 410721645
TIE ROD 		$76.14 1
039 N0133481
SPRING PIN
IN STOCK 		$0.25 (96.6% off) 1
040 410721965
JOURNAL 		$28.00 1
041 400721157
JOURNAL 		$30.89 1
043 401864431
RUBBER FOOT MAT 		$20.55 1
044 N90780901
OVAL HEXAGON SOCKET HEAD BOLT
IN STOCK 		$2.89 (60.8% off) 1
045 410723167
SPACER 		$66.27 1
046 401864419B
FOOTREST DRIVER SIDE 		$204.81 1
047 400721780A
COVER 		$280.52 1
048 400721174D
CAP FOR FOOT BRAKE PEDAL 		$41.08 1
049 410721134A
BUSHING 		$210.39 1
050 410721255
BLOCK 		$62.06 1
051 410721379
SCREW 		$288.04 1
052 401864431B
COVER 		$79.91 1
053 401864523A
SUPPORT 		$51.47 1
054 413864775B
BRACKET 		$106.32 1
055 410971806
SUPPORT 		$32.07 1
066 N0133311
PIN 2.0X12.0 		$0.19 (97.4% off) 2
