Lamborghini Murcielago - FRONT DIFFERENTIAL CASE

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

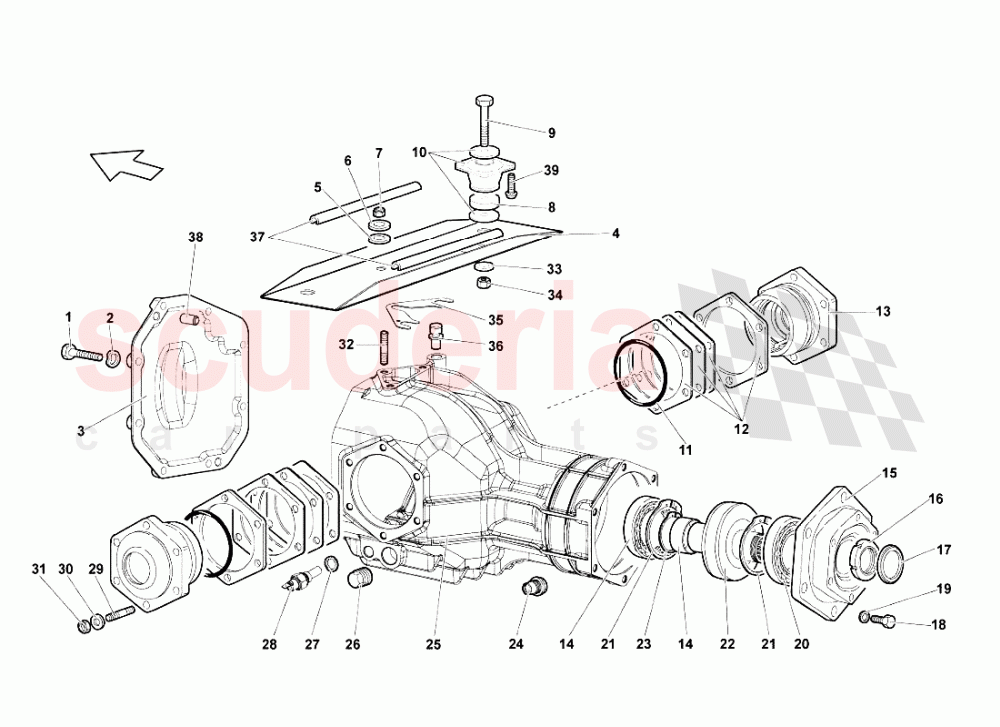

FRONT DIFFERENTIAL CASE of Lamborghini Lamborghini Murcielago Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
001 8100827
SCREW M8X25 		$0.37 (95% off) 8
002 WHT001514
WASHER
IN STOCK 		$23.18 (63.8% off) 8
003 1S409410A
COVER 		$330.90 1
004 410805153
SUPPORT 		$49.82 1
005 N90179103
WASHER 18X8,4X2,5
IN STOCK 		$1.44 3
006 8410820
WASHER 		$0.18 (97.6% off) 3
007 8200804
NUT M8
IN STOCK 		$1.08 (85.2% off) 3
008 410801499
SPACER 		$66.70 2
009 8101276
SCREW M12X70 		$2.07 (70.6% off) 2
010 410805991
SUPPORT 		$176.70 2
011 WHT002158
SEAL RING 		$19.56 2
012 1S409448E
ADJUSTMENT SHIM 		$82.30 6
012 1S409448C
0.075 MM ADJUSTMENT SHIM 		$32.79 3
012 1S409448
2.0 MM ADJUSTMENT SHIM 		$46.15 2
012 1S409448B
2.0 MM ADJUSTMENT SHIM 		$94.15 2
012 1S409448A
1.0 MM ADJUSTMENT SHIM 		$38.15 1
012 1S409448D
0.050 MM ADJUSTMENT SHIM 		$21.55 3
013 1S409828A
FLANGE 		$819.12 2
014 1S409770
BEARING 		$312.26 1
015 1S409129A
FLANGE 		$1,110.06 1
016 1S409761
RING NUT 		$217.27 1
017 1S409887
SEAL RING 		$66.70 1
018 8100803
SCREW M8X1,25X25 		$0.47 (93.6% off) 6
019 WHT001514
WASHER
IN STOCK 		$23.18 (63.8% off) 6
020 1S409561
BEARING 		$60.32 1
021 N0123501
RETAINING RING 		$6.75 2
021 N0123191
RETAINING RING 		$5.58 2
022 1S409435B
VISCOUS COUPLING 		$5,570.30 1
023 1S409297
SEAL RING 		$17.67 1
024 8931802
MAGNETIC PLUG 		$202.39 1
025 1S409149A
FRONT DIFFERENTIAL CASE 		$11,213.06 1
026 86301141A
MAGNETIC PLUG 		$34.86 1
027 N0138492
WASHER
IN STOCK 		$3.81 (47.2% off) 1
028 1S919529
SENSOR 		$264.72 1
029 8300923
STUD BOLT M8X35 		$7.81 12
030 WHT001514
WASHER
IN STOCK 		$23.18 (63.8% off) 12
031 N01100845
HEXAGON NUT
IN STOCK 		$1.93 12
032 8300923
STUD BOLT M8X35 		$7.81 3
034 8201219
NUT M12 		$3.58 (9.4% off) 2
035 1S409267B
SPACER 		$39.59 4
036 B9507141
OIL BREATHER PIPE 		$64.80 1
037 400133338
GASKET 		$63.44 2
038 WHT003078
DOWEL 		$41.03 2
039 N90929202
SCREW M10X20.0 		$3.38 8
