Manual Pedal Cluster

Lamborghini Murcielago

Find Your Part

Lamborghini Murcielago - MANUAL PEDAL CLUSTER

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

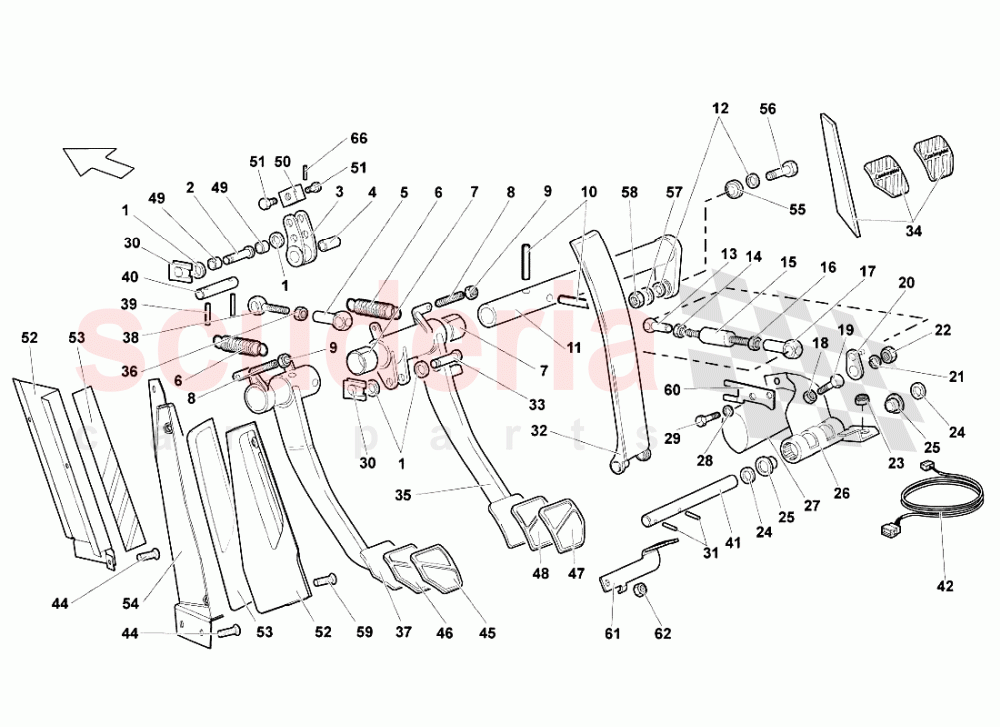

MANUAL PEDAL CLUSTER of Lamborghini Lamborghini Murcielago Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
001 N01152714
WASHER 10,5X21X2 		$1.88 (74.1% off) 4
002 410721966
JOURNAL 		$188.54 1
003 410721385
LEVER 		$108.64 1
004 8801209
BUSHING 		$8.88 (10.3% off) 1
005 410721993
BALL JOINT COUPLING 		$71.04 1
006 410721363
SPRING 		$164.21 2
007 8802501
BUSHING 		$20.36 (11.1% off) 2
008 4210834
ADJUSTING SLEEVE 		$4.22 (10.2% off) 2
009 N01100637
NUT M6
IN STOCK 		$0.30 (95.9% off) 2
010 8900803
PIN 		$0.88 (87.8% off) 2
011 413721325
JOURNAL 		$3,240.30 1
012 8400819
WASHER 8X12X1 		$0.54 (92.6% off) 2
013 400721214E
BALL JOINT HEAD (LEFT HAND THREAD) 		$59.50 1
014 N10690001
NUT (LEFT HAND THREAD) 		$489.58 1
015 400721743
SHAFT 		$44.90 1
016 8200501
NUT 		$0.06 1
017 400721214A
BALL JOINT HEAD 		$47.96 1
018 N01100845
HEXAGON NUT
IN STOCK 		$1.93 1
019 N01033520
SCREW M8X35
IN STOCK 		$3.13 (56.5% off) 1
020 400721728
LEVER 		$38.27 1
021 8400628
WASHER 		$0.21 (97.1% off) 1
022 N02214812
HEXAGON NUT, SELF-LOCKING 		$2.00 (72.6% off) 1
023 N90226403
NUT M8 		$0.79 (89.1% off) 2
023 N90226404
HEXAGON COLLAR NUT SELF-LOCKING 		$2.25 (68.8% off) 2
024 WHT000697
WASHER 		$0.91 (87.4% off) 2
025 400721543
BUSHING 		$25.73 2
026 400721651A
SUPPORT 		$1,101.32 1
027 400907475A
POTENTIOMETER 		$1,735.65 1
028 8400628
WASHER 		$0.21 (97.1% off) 2
029 8700614
SCREW 		$0.25 2
030 8581004
CLIP 		$8.71 (10.2% off) 2
031 8900204
PIN 		$0.15 (98% off) 2
032 400721507A
ACCELERATOR PEDAL 		$2,266.33 1
033 410721147
JOURNAL 		$266.60 1
035 413721145
BRAKE PEDAL 		$2,609.73 1
036 N10155210
NUT
IN STOCK 		$2.00 (72.4% off) 1
037 413721321
CLUTCH PEDAL 		$513.20 1
038 410721645
TIE ROD 		$75.92 1
039 N0133481
SPRING PIN
IN STOCK 		$0.25 (96.6% off) 1
040 410721965
JOURNAL 		$27.92 1
041 400721157
JOURNAL 		$30.80 1
044 8700702
SCREW M6X16 		$17.23 (11% off) 1
045 400721779
COVER 		$573.14 1
046 400721173
COVER 		$32.22 1
047 400721780
COVER 		$394.58 1
048 400721174C
COVER 		$322.80 1
049 410721134A
BUSHING 		$209.78 1
050 410721255
BLOCK 		$61.88 1
051 410721379
SCREW 		$287.20 1
052 413864419
FOOTREST DRIVER SIDE 		$3,583.70 1
053 401864431
RUBBER FOOT MAT 		$20.49 1
054 413864775B
BRACKET 		$106.01 1
055 410721427
BALL JOINT 		$84.05 1
056 2129460
JOURNAL 		$30.10 (8% off) 1
057 N90179103
WASHER 18X8,4X2,5
IN STOCK 		$1.44 1
058 N0111849
NUT
IN STOCK 		$2.13 (70.6% off) 1
059 WHT003068
COUNTERSUNK BOLT
IN STOCK 		$1.33 (81.5% off) 2
060 410971806
SUPPORT 		$31.97 1
066 N0133311
PIN 2.0X12.0 		$0.19 (97.4% off) 2
