E-GEAR CLUTCH of Lamborghini Lamborghini Murcielago

View All

Lamborghini Murcielago - E-GEAR CLUTCH

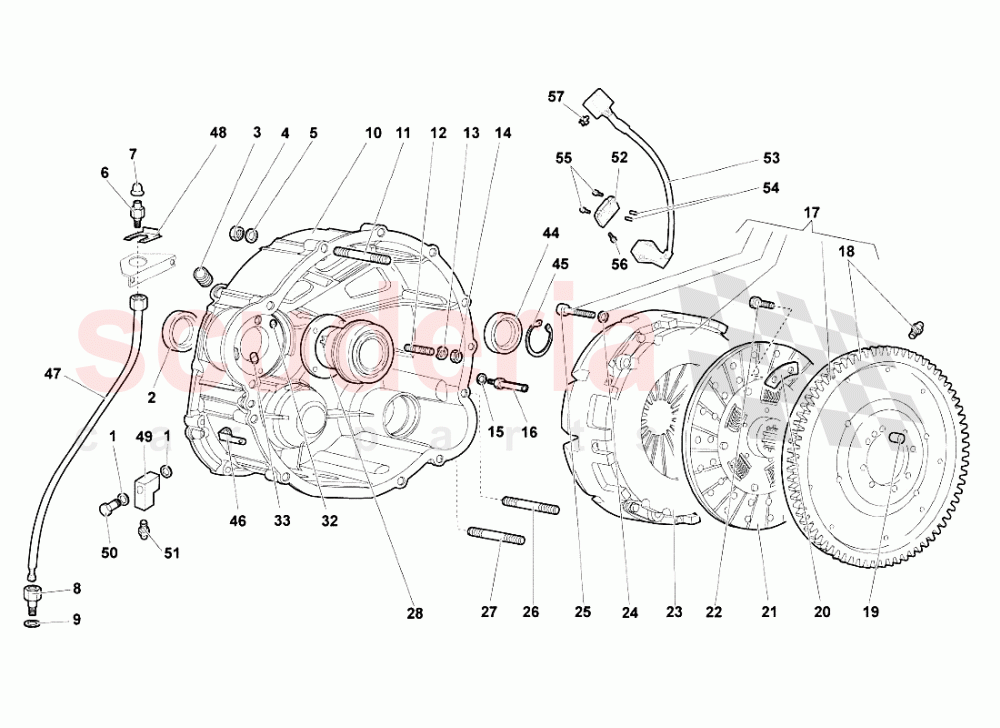

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
001	N0138131	WASHER IN STOCK	N0138131 WASHER IN STOCK	$0.51 MSRP: ~~7.34~~ (93.1% off)	2
002	86141243	SEAL RING	86141243 SEAL RING	$53.49	1
003	86323501	HELI-COIL	86323501 HELI-COIL	$6.84	1
004	8200806	NUT	8200806 NUT	$0.35 MSRP: ~~7.33~~ (95.2% off)	12
005	WHT000771	WASHER IN STOCK	WHT000771 WASHER IN STOCK	$1.11	12
006	1J0615273	BREATHER VALVE	1J0615273 BREATHER VALVE	$22.04	1
007	86301147	DUST CAP IN STOCK	86301147 DUST CAP IN STOCK	$0.86 MSRP: ~~7.25~~ (88.1% off)	1
008	86323173C	CONNECTION PIECE	86323173C CONNECTION PIECE	$123.69	1
009	N91014801	O-RING	N91014801 O-RING	$1.44 MSRP: ~~7.14~~ (79.8% off)	1
010	86323209C	CLUTCH HOUSING IN STOCK	86323209C CLUTCH HOUSING IN STOCK	$2,533.49 MSRP: ~~2,580.00~~ (1.8% off)	1
011	8300808	STUD BOLT	8300808 STUD BOLT use : WHT003027	$5.67	11
012	WHT002942	STUD BOLT	WHT002942 STUD BOLT	$10.30	3
013	WHT003213	WASHER	WHT003213 WASHER	$1.25 MSRP: ~~7.15~~ (82.5% off)	3
014	N01100637	NUT M6 IN STOCK	N01100637 NUT M6 IN STOCK	$0.31 MSRP: ~~7.29~~ (95.7% off)	2
015	WHT003213	WASHER	WHT003213 WASHER	$1.25 MSRP: ~~7.15~~ (82.5% off)	3
016	86141161A	ANTIROTATION BAR HOLD	86141161A ANTIROTATION BAR HOLD	$30.30	1
017	7M105269A	Clutch Flywheel IN STOCK	7M105269A Clutch Flywheel IN STOCK	$6,771.50	1
019	WHT003078	DOWEL	WHT003078 DOWEL	$41.22	1
020	410141179	Retaining Plate	410141179 Retaining Plate	$59.72	4
022	WHT002951	Hexagon Head Bolt M8x1.25x23 IN STOCK	WHT002951 Hexagon Head Bolt M8x1.25x23 IN STOCK	$18.34	8
024	WHT001197A	WASHER IN STOCK	WHT001197A WASHER IN STOCK	$0.28	9
025	WHT002960	SCREW IN STOCK	WHT002960 SCREW IN STOCK	$8.28	9
026	8300807	STUD BOLT	8300807 STUD BOLT	$15.69	2
027	8300826	STUD BOLT	8300826 STUD BOLT	$10.86	1
028	86141671C	Clutch Bearing	86141671C Clutch Bearing	$4,594.14	1
032	WHT002218	O-RING IN STOCK	WHT002218 O-RING IN STOCK	$3.91 MSRP: ~~7.30~~ (46.4% off)	1
033	N90111302	Seal Ring IN STOCK	N90111302 Seal Ring IN STOCK	$1.50 MSRP: ~~7.14~~ (79% off)	1
044	86311819	SEAL RING	86311819 SEAL RING	$51.50	1
045	WHT003580	SEAL RING IN STOCK	WHT003580 SEAL RING IN STOCK	$14.24	1
046	410911085	BRACKET	410911085 BRACKET	$15.17	1
047	86323179A	HYDRAULIC CLUTCH PIPE	86323179A HYDRAULIC CLUTCH PIPE	$213.89	1
048	191611715	HOSE BRACKET	191611715 HOSE BRACKET	$1.94 MSRP: ~~7.14~~ (72.8% off)	1
049	86323749	BLOCK	86323749 BLOCK	$269.72	1
050	WHT002628	SCREW IN STOCK	WHT002628 SCREW IN STOCK	$654.83	1
051	86325274	CONNECTOR	86325274 CONNECTOR	$347.50	1
052	86141305	SUPPORT IN STOCK	86141305 SUPPORT IN STOCK	$54.27	1
053	86141297	Clutch Sensor	86141297 Clutch Sensor	$1,451.49	1
054	N10421101	PIN IN STOCK	N10421101 PIN IN STOCK	$0.32 MSRP: ~~7.35~~ (95.6% off)	2
055	N10295402	SCREW M5X20 IN STOCK	N10295402 SCREW M5X20 IN STOCK	$2.51 MSRP: ~~7.09~~ (64.6% off)	2
056	N90659905	SCREW HEX SOCKET M4 X 16	N90659905 SCREW HEX SOCKET M4 X 16	$9.32	2
057	410972846	SUPPORT	410972846 SUPPORT	$1.57 MSRP: ~~7.12~~ (77.9% off)	1
