Oil Sump of Lamborghini Lamborghini Diablo SE30 (1993-1995)

View All

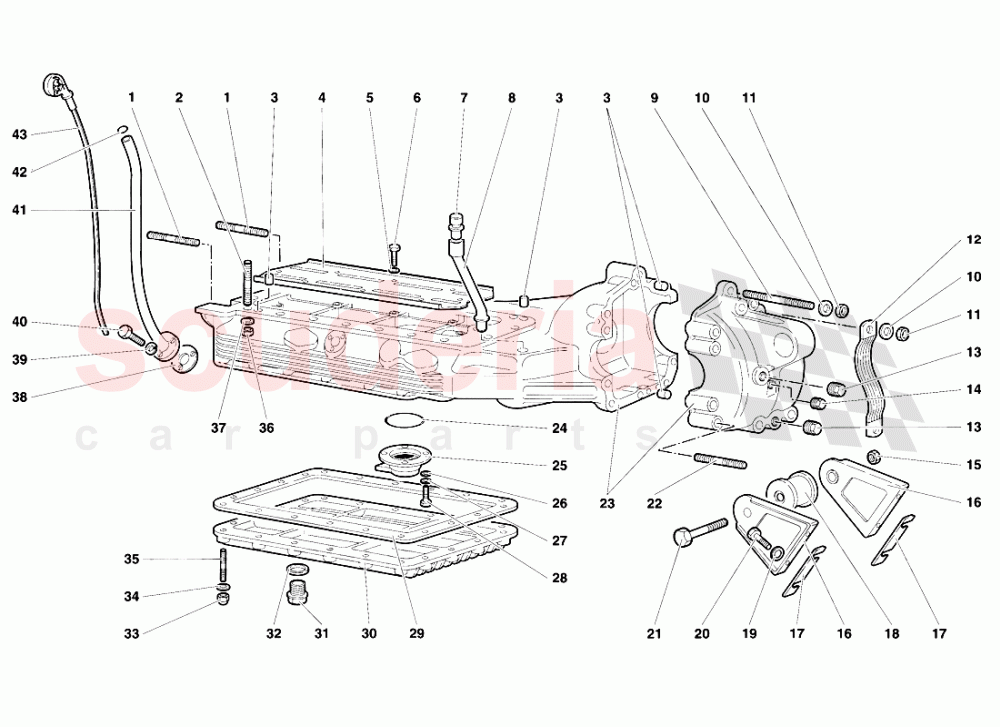

Lamborghini Diablo SE30 (1993-1995) - Oil Sump

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	8300808	STUD BOLT	8300808 STUD BOLT use : WHT003027	$5.66	3
002	8300897	STUD	8300897 STUD PRIGIONIERO L=106mm	$13.88 MSRP: ~~15.50~~ (10.5% off)	4
002	8300806	STUD	8300806 STUD PRIGIONIERO L=70mm	$5.20 MSRP: ~~5.70~~ (8.8% off)	6
002	WHT003031	STUD BOLT	WHT003031 STUD BOLT PRIGIONIERO L=28mm	$9.09	8
003	8850806	DOWEL	8850806 DOWEL GRANO	-	4	Enquire
004	1827775	PLATE	1827775 PLATE PARATIA ANTISBATTIMENTO	$79.59 MSRP: ~~86.40~~ (7.9% off)	1
005	WHT003052	WASHER 4,3 IN STOCK	WHT003052 WASHER 4,3 RONDELLA IN STOCK	$3.51 MSRP: ~~7.38~~ (52.4% off)	8
006	8100604	SCREW	8100604 SCREW VITE	$2.38	8
007	B9507141	OIL BREATHER PIPE	B9507141 OIL BREATHER PIPE SFIATO VAPORI OLIO DIFFER	$64.92	1
008	2334402	PIPE	2334402 PIPE TUBO	$254.06	1
009	8301002	STUD	8301002 STUD PRIGIONIERO	$30.77	1
010	WHT000768	WASHER IN STOCK	WHT000768 WASHER IN STOCK	$1.83 MSRP: ~~7.28~~ (74.9% off)	10
011	N10155210	NUT IN STOCK	N10155210 NUT DADO IN STOCK	$2.01 MSRP: ~~7.24~~ (72.2% off)	10
012	1604328	GROUND CABLE	1604328 GROUND CABLE CAVO MASSA	-	2	Enquire
013	86301141A	MAGNETIC PLUG	86301141A MAGNETIC PLUG TAPPO MAGNETICO	$34.92	2
014	8931802	MAGNETIC PLUG	8931802 MAGNETIC PLUG TAPPO	$202.74	1
015	8201416	NUT	8201416 NUT DADO	$1.62	1
016	4126765	BRACKET	4126765 BRACKET STAFFA	$255.24 MSRP: ~~287.00~~ (11.1% off)	2
017	4126766	SPACER	4126766 SPACER SPESSORE Dl REGISTRO	-	1	Enquire
018	B9501144	support mount IN STOCK	B9501144 support mount IN STOCK	$187.06 MSRP: ~~190.50~~ (1.8% off)	1
019	8410801	WASHER	8410801 WASHER RONDELLA	$0.58	4
020	8100803	SCREW M8X1,25X25	8100803 SCREW M8X1,25X25 VITE	$0.47 MSRP: ~~7.31~~ (93.6% off)	4
021	8101430	SCREW	8101430 SCREW VITE	$3.29 MSRP: ~~3.65~~ (9.9% off)	1
022	8301033	STUD	8301033 STUD PRIGIONIERO	$34.02	9
023	453400100	OIL SUMP	453400100 OIL SUMP COPPA OLIO	-	1	Enquire
024	WHT002222	SEAL RING	WHT002222 SEAL RING	$12.34	1
025	1832017	FLANGE	1832017 FLANGE FLANGIA	$304.88 MSRP: ~~330.00~~ (7.6% off)	1
026	N01152427	WASHER IN STOCK	N01152427 WASHER RONDELLA IN STOCK	$0.28	4
027	WHT003052	WASHER 4,3 IN STOCK	WHT003052 WASHER 4,3 RONDELLA IN STOCK	$3.51 MSRP: ~~7.38~~ (52.4% off)	4
028	8100604	SCREW	8100604 SCREW VITE	$2.38	4
029	1826521	GASKET	1826521 GASKET GUARNIZIONE	$116.06	1
030	1831852	LOWER COVER	1831852 LOWER COVER COPERCHIO	$516.02	1
031	8932211	Drain Plug	8932211 Drain Plug TAPPO Dl SCARICO	$24.05	1
032	8402202	WASHER IN STOCK	8402202 WASHER RONDELLA IN STOCK	$4.00 MSRP: ~~4.45~~ (10.1% off)	1
033	8200605	NUT IN STOCK	8200605 NUT DADO IN STOCK	$2.85	20
034	8410602	WASHER IN STOCK	8410602 WASHER RONDELLA IN STOCK	$41.76	20
035	8300615	STUD	8300615 STUD PRIGIONIERO	$18.84 MSRP: ~~21.05~~ (10.5% off)	20
036	N01100845	HEXAGON NUT IN STOCK	N01100845 HEXAGON NUT DADO IN STOCK	$1.94	18
037	WHT001514	WASHER IN STOCK	WHT001514 WASHER RONDELLA IN STOCK	$23.22 MSRP: ~~64.00~~ (63.7% off)	18
038	1830006	GASKET	1830006 GASKET GUARNIZIONE	$7.83	1
039	WHT003052	WASHER 4,3 IN STOCK	WHT003052 WASHER 4,3 RONDELLA IN STOCK	$3.51 MSRP: ~~7.38~~ (52.4% off)	3
040	8100617	SCREW	8100617 SCREW VITE	$5.42 MSRP: ~~6.00~~ (9.7% off)	3
041	1831138	PIPE	1831138 PIPE TUBO PORTA ASTA	$579.74	1
042	WHT003057	SEAL RING IN STOCK	WHT003057 SEAL RING ANELLO TENUTA IN STOCK	$2.07 MSRP: ~~7.29~~ (71.6% off)	1
043	1831041	OIL LEVEL ROD	1831041 OIL LEVEL ROD ASTA LIVELLO OLIO	$322.70	1
