Crankase and Lower Mounting of Lamborghini Lamborghini Diablo SE30 (1993-1995)

View All

Lamborghini Diablo SE30 (1993-1995) - Crankase and Lower Mounting

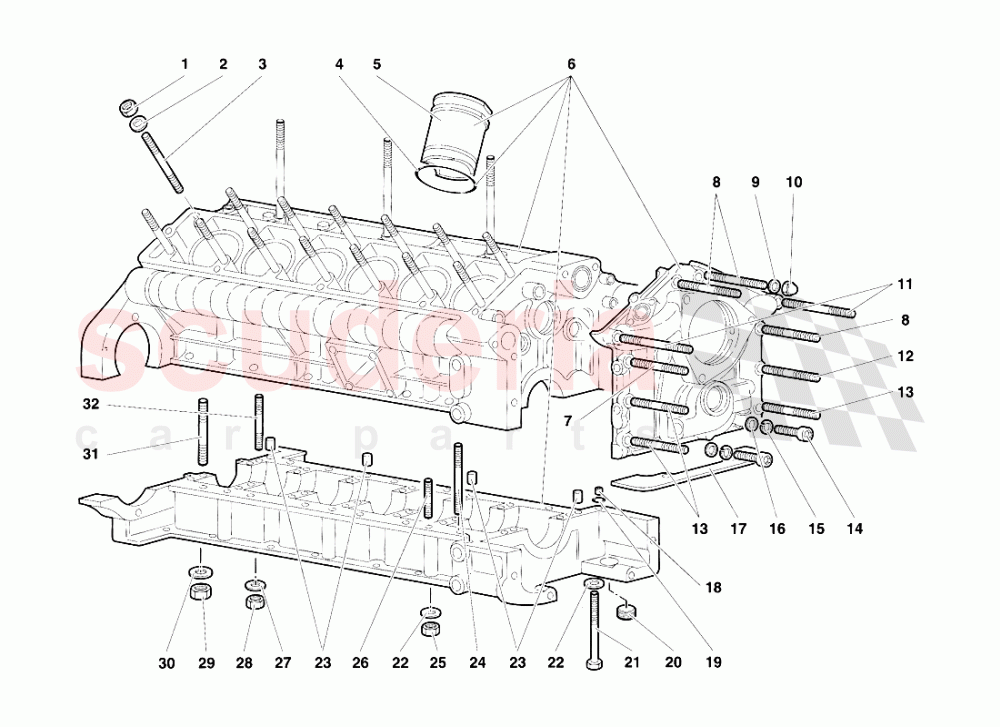

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	1120924	CAP NUT IN STOCK	1120924 CAP NUT DADO IN STOCK	$33.97 MSRP: ~~38.15~~ (11% off)	28
002	8401230	WASHER IN STOCK	8401230 WASHER RONDELLA IN STOCK	$54.13	28
003	1824761	STUD BOLT	1824761 STUD BOLT PRIGIONIERO	$95.58	28
004	WHT003085	SEAL RING	WHT003085 SEAL RING ANELLO TENUTA	$4.12 MSRP: ~~7.06~~ (41.6% off)	12
005	1829442	CYLINDER	1829442 CYLINDER CILINDRO	$440.27 MSRP: ~~479.00~~ (8.1% off)	12
006	403400100	CRANKCASE	403400100 CRANKCASE BASAMENTO MOTORE LAVORATO	$19,922.88	1
007	N0444416	STUD BOLT IN STOCK	N0444416 STUD BOLT PRIGIONIERO L=40mm IN STOCK	$3.65 MSRP: ~~7.04~~ (48.2% off)	1
008	8300904	STUD	8300904 STUD PRIGIONIERO L=45mm	$26.46 MSRP: ~~29.70~~ (10.9% off)	3
009	N0122094	WASHER IN STOCK	N0122094 WASHER RONDELLA IN STOCK	$1.44 MSRP: ~~7.15~~ (79.9% off)	8
010	8200816	NUT	8200816 NUT DADO	$4.79	10
011	8300905	STUD	8300905 STUD PRIGIONIERO L=55mm	$17.32 MSRP: ~~19.45~~ (11% off)	2
012	8300880	STUD	8300880 STUD PRIGIONIERO	$22.93	2
013	8300902	STUD BOLT	8300902 STUD BOLT PRIGIONIERO L=35mm	$8.62 MSRP: ~~9.55~~ (9.7% off)	3
014	8700822	SCREW	8700822 SCREW VITE	$0.71 MSRP: ~~7.29~~ (90.3% off)	2
015	N0152785	WASHER IN STOCK	N0152785 WASHER RONDELLA IN STOCK	$0.44	2
016	N0122094	WASHER IN STOCK	N0122094 WASHER RONDELLA IN STOCK	$1.44 MSRP: ~~7.15~~ (79.9% off)	2
017	1232219	GASKET	1232219 GASKET GUARNIZIONE	$4.39 MSRP: ~~4.85~~ (9.5% off)	1
018	1828787	DOWEL	1828787 DOWEL GRANO	$13.63	1
019	8600902	SEAL	8600902 SEAL ANELLO TENUTA	$0.15	1
020	8932007	PLUG	8932007 PLUG TAPPO	$82.51	1
021	8100871	SCREW	8100871 SCREW VITE L=95mm	$3.87 MSRP: ~~4.30~~ (10% off)	1
022	8410815	WASHER	8410815 WASHER RONDELLA	$0.21 MSRP: ~~7.37~~ (97.2% off)	14
023	8851105	DOWEL	8851105 DOWEL GRANO	-	4	Enquire
024	8300884	STUD	8300884 STUD PRIGIONIERO L=95mm	$31.08 MSRP: ~~34.85~~ (10.8% off)	1
025	N01100845	HEXAGON NUT IN STOCK	N01100845 HEXAGON NUT DADO IN STOCK	$1.94	13
026	WHT003028	THREADED PIN	WHT003028 THREADED PIN PRIGIONIERO L=25mm	$20.77	10
027	8400820	WASHER	8400820 WASHER RONDELLA	$16.66	14
028	8200805	NUT	8200805 NUT DADO	$0.12	14
029	8201221	NUT	8201221 NUT DADO	$3.02	14
030	8401227	WASHER	8401227 WASHER RONDELLA	$15.65	14
031	8301238	STUD BOLT	8301238 STUD BOLT PRIGIONIERO L=1 10mm	$15.65	14
032	8300886	STUD	8300886 STUD PRIGIONIERO L=105mm	$41.44	14
